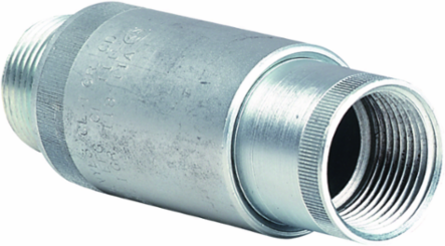

Killark UNYL3 Long Male Expansion Conduit Union Hub Size 1 Inch, Steel, Zinc Plated
Killark UNYL3 Long Male Expansion Conduit Union Hub Size 1 Inch, Steel, Zinc Plated
- MPN: UNYL3
- UPC: 783936010540
- PPN: HBL-UNYL3
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$127.00/ EA
Description
UNY Series Fittings - Expansion Conduit Unions - Male - Long - Hub Size 1 In
Features
- Tapered threaded hubs (NPT) for rigid conduit and IMC
- Telescoping components allows conduit to be inserted between fixed threaded hubs
- Internal copper alloy grounding spring assures positive grounding
- Close tolerance of mating parts eliminates passage of flame
- Compact diameter allows use where conduit is closely spaced
- Tapered threaded hubs (NPT) for rigid conduit and IMC. Telescoping components allows conduit to be inserted between fixed threaded hubs. Internal copper alloy grounding spring assures positive grounding. Close tolerance of mating parts eliminates passage
Specifications
Specifications
- Country of Origin
- US
- Each - Width
- 1.690 in
- Color
- Glossy gray
- Height
- 1.69 in
- Length
- 4.75 in
- Type
- Long Male Expansion Conduit Union
- Finish Type
- Zinc Plated
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 1.09
- Series
- UNY Series
- BOX SIZE
- 1.690x4.750x1.690 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936010540
- Master Pack Description
- Each
Dimensions4.75 in x 1.69 in x 1.69 in
ApplicationTo provide for slight expansion and contraction of conduit runs. To retrofit sections of conduit runs.
FinishZinc Plated
Hub Size1"
Special FeaturesTapered threaded hubs (NPT) for rigid conduit and IMC. Telescoping components allows conduit to be inserted between fixed threaded hubs. Internal copper alloy grounding spring assures positive grounding. Close tolerance of mating parts eliminates passage
Width1.69 in
ARRA CompliantContact Manufacturer
Description - Invoice1" ST EXPAN LONG UNION MALE
Harmonization Code7307199060
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D237
MaterialSteel
Base Unit of MeasureEA
Carton - Gross Weight per Pack5.450 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5
Certifications
- EU RoHS Indicator
- Contact Manufacturer
