Uninsulated Aluminum Service Entrance Compression Splices, 4 Inch, 2 Conductors, Crimp Connection

Documentation & Downloads

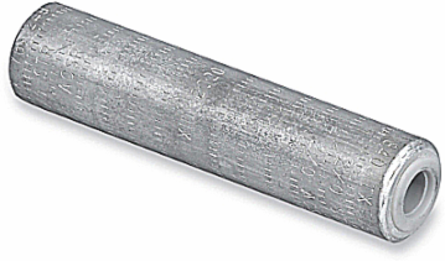

Blackburn X 1 U 1010 Uninsulated Aluminum Service Entrance Compression Splices, 4 Inch, 2 Conductors, Crimp Connection

MPN: X 1 U 1010
UPC: 783786759316
PPN: T-B-X 1 U 1010

CAD

$12.87

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

Uninsulated Aluminum Service Entrance Compression Splices - 840 die series, Conductor A: Yellow, 1/0,2/0 Solid Aluminum, - Solid Copper, 1/0 Stranded, 1/0 ACSR, Conductor B: Yellow, 1/0,2/0 Solid Aluminum, - Solid Copper, 1/0 Stranded, 1/0 ACSR.

Documentation & Downloads

Specifications

North American Specifications (UNSPSC)

UNSPSC: 39121449 Wire or cable compression splice

Brand Name: Blackburn

Special Features: Constructed from Aluminum. Provides high conductivity. Prefilled with Oxide inhibitor to prevent oxidation and keep out moisture. Solid center barriers Enable quick Positioning, Proper Distribution of Inhibitor around the wire and Current Equalization on Stranded Conductors. Splices are marked with strip lengths, die codes, and compression locations for easy identification and easy installation.

Standard: ANSI C119.4

Connection: Crimp/Compression

Number Of Conductors: 2

Color: Yellow/Yellow

IGCC4669 Wire or cable compression splice

TypeUninsulated Aluminum Service Entrance Compression Splices

ApplicationIdeal for Large Residential and Commercial Service Drops.

Size4 inches long

Conductor RangeSide A Solid Aluminum 1/0, 2/0. Stranded 1/0. ACSR 1/0. Side B Solid Aluminum 1/0, 2/0. Stranded 1/0. ACSR 1/0.

MaterialAluminum

InsulationNone

Packaging

Outer Quantity: 100

Weight Uom: 0.22 lbs. Each

Outer Dimensions (inches)13.5x8.5x8.5
