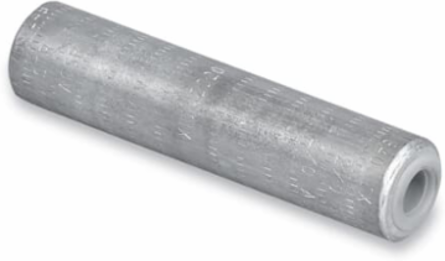

Blackburn X 1 U 2662 Uninsulated Aluminum Compression Splice 350 Red, 4 Inch Long, 2 Conductors
Blackburn X 1 U 2662 Uninsulated Aluminum Compression Splice 350 Red, 4 Inch Long, 2 Conductors
- MPN: X 1 U 2662
- UPC: 783786759453
- PPN: T-B-X 1 U 2662
- UNSPSC: 39121449
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$15.34/ EA
Description
Uninsulated Aluminum Service Entrance Compression Splices - 840 die series, Conductor A: Blue, 350 Solid Aluminum, - Solid Copper, 250-266.8 Stranded, 266.8 ACSR, Conductor B: Red, 1 Solid Aluminum, 1 Solid Copper, 1 and 2 Stranded, 2 ACSR.
Specifications
Additional Information
- Application
- Ideal for Large Residential and Commercial Service Drops.
- Color
- Blue/Red
- Effective Date
- 20080619
- Number of Conductors
- 2
- Product Type
- Compression Splice Service Entrance Insulated
- Special Functions
- Constructed from Aluminum. Provides high conductivity. Prefilled with Oxide inhibitor to prevent oxidation and keep out moisture. Solid center barriers Enable quick Positioning, Proper Distribution of Inhibitor around the wire and Current Equalization on Stranded Conductors. Splices are marked with strip lengths, die codes, and compression locations for easy identification and easy installation.
Brand / LabelHomac
Connection TypeCompression
Insulation MaterialNone
Product NameELECTRICAL SPLICE<1000V
Size4 inches long
StandardsANSI C119.4
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4669 >> Wire or cable compression splice
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
