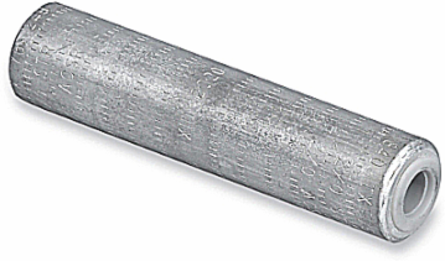

Blackburn X 1 U 3020 Uninsulated Aluminum Service Entrance Compression Splices

Uninsulated Aluminum Service Entrance Compression Splices
  • MPN: X 1 U 3020
  • UPC: 783786759507
  • PPN: T-B-X 1 U 3020

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$12.15/ EA

Description

Uninsulated Aluminum Service Entrance Compression Splices - 840 die series. Side A - Black, Solid AL 4/0, Stranded 3/0, ASCR 3/0. Side B - Gray, Solid AL 3/0, Stranded 2/0, ASCR 2/0.

Specifications

North American Specifications (UNSPSC)

UNSPSC
39121449 Wire or cable compression splice
Brand Name
Blackburn
Special Features
Constructed from Aluminum. Provides high conductivity. Prefilled with Oxide inhibitor to prevent oxidation and keep out moisture. Solid center barriers Enable quick Positioning, Proper Distribution of Inhibitor around the wire and Current Equalization on Stranded Conductors. Splices are marked with strip lengths, die codes, and compression locations for easy identification and easy installation.
Standard
ANSI C119.4
Connection
Crimp/Compression
Number Of Conductors
2
Color
Black/Gray
IGCC4669 Wire or cable compression splice
TypeUninsulated Aluminum Service Entrance Compression Splices
ApplicationIdeal for Large Residential and Commercial Service Drops.
Size4 inches long
Conductor RangeSide A Solid Aluminum 4/0. Stranded 3/0. ACSR 3/0. Side B Solid Aluminum 3/0. Stranded 2/0. ACSR 2/0
MaterialAluminum
InsulationNone

Packaging

Outer Quantity
100
Weight Uom
0.2 lbs. Each
Outer Dimensions (inches)1x1x1
