Brady 66321 Universal Multi-Pole Breaker Lockout, 1.05 Inch H x 1.25 Inch W x 2.25 Inch D, Red
- MPN: 66321
- UPC: 754473663216
- PPN: BRD-66321
- UNSPSC: 39121901
CAD
$18.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

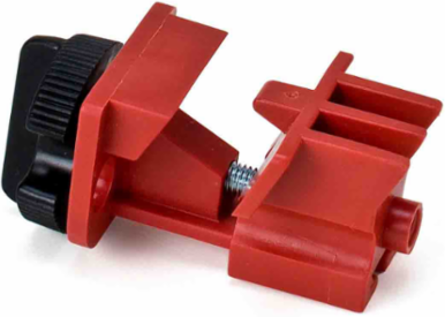

Universal Multi-Pole Breaker Lockouts are made of durable impact-modified nylon and are compatible with most two or three pole breakers with a tie-bar.
Features
- Simply tighten the thumbscrew to clamp the Breaker Lockout securely over the tie bar, then insert the lock to prevent the clamp from being loosened
- This lockout device isolates and secures circuit breaker switches to protect employees against electrical accidents during equipment maintenance
- Equipping your employees with the proper lockout tools and warning devices can save lives, reduce lost employee time, and cut insurance costs
- Brady® is a world leader in lockout/tagout products and services offering industry expertise and a broad range of durable, easy-to-use lockout devices
Documentation & Downloads
Specifications
Key Specifications
| Brand Name | Brady® |
|---|---|
| Color | Red |
| Maximum Number of Padlocks | 2 |
| Risk Type | Electrical Risk |
| Adhesive (Y/N) | No |
| Material | Polypropylene |
| Depth (in/ft/yd) | 2.25 in |
| Dimensions | 1.05 in H x 1.25 in W x 2.25 in D |
| Height (in/ft/yd) | 1.05 in |
| Maximum Service Temperature °C | 120 °C |
| Maximum Shackle Diameter (mm/cm/m) | 7.16 mm |
| Minimum Shackle Clearance (in/ft/yd) | .75 in |
| Sign Size-General | 1.05 in x 1.25 in |
| Size - Width (mm) | 31.75 mm |
| Width (mm/cm/m) | 31.75 mm |
| Circuit Breaker Lockout Type | Multi-Pole Tie Bar |
|---|---|
| Enables Industry Compliance | OSHA 1910.147 |
| Primary Noun, Basic Function | Lockout Device |
| Total Qty per Pack | 1 Piece(s) / Pack |
| Brady Material Number | LOTO-4 |
| SAP B-Number | LOTO-4 |
| Depth (mm/cm/m) | 57.15 mm |
| Dimensions (Metric) | 31.75 mm W x 26.67 mm H x 57.15 mm D |
| Height (mm/cm/m) | 26.67 mm |
| Maximum Shackle Diameter (in/ft/yd) | .282 in |
| Minimum Service Temperature °C | -20 °C |
| Minimum Shackle Clearance - (mm/cm/m) | 19.05 mm |
| Size - W x H x D (mm) | 31.75 x 26.67 x 57.15 |
| Width (in/ft/yd) | 1.25 in |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| Contains CA PROP 65 Substance | No |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | Yes |
