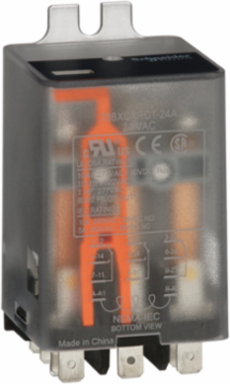

Schneider Electric 788XCXRC1-24A General purpose relay, SE Relays, 788R, 3PDT, 10A, 24 VAC, Quick terminal, flange cover
- MPN: 788XCXRC1-24A
- PPN: SCH-788XCXRC1-24A
CAD
$39.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The SE Relays 788R series, plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with flange cover option. Contacts rated as 10A resistive at 277VAC, motor 1/3hp at 120VAC, 1hp at 277VAC with nominal coil voltage 24VAC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact 3PDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| Depth | 35.5 mm |
|---|
Complementary Attributes
| Maximum Switching Voltage | 300 V UL, 300 V CSA250 V IEC |
|---|---|
| Line Rated Current | 10 A |
| Rated Power In Hp | 0.33 HP 120 V AC1 HP 277 V AC |
| Control Circuit Voltage Limits | 0.85...1.1 Un AC |
|---|---|
| Minimum Switching Current | 10 mA 17 V DC |
Important Information Attributes
| Vibration Resistance | +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation3 gn 35-150 Hz in operation |
|---|---|
| Drop-out Voltage Threshold | >= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2403024EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Kit Identifier | N |
| Contacts Material | silver alloy, gold flashed |
| Dielectric Strength | 2500 V AC between coil and contact2000 V AC between poles1500 V AC between contacts |
| Local Signalling | flag |
| Mounting Support | plug-inside flange |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Resistance | 72 Ohm |
| Shock Resistance | 10 gn |
| Switch Function | 3PDT |
| Height Nominal | 70.3 mm |
| [Ie] Rated Operational Current | 5 A at 28 V DC-1 (1 NC) (on resistive load) conforming to IEC10 A at 277 V AC (on resistive load) conforming to UL10 A at 30 V DC (on resistive load) conforming to UL10 A at 250 V AC-1 (1 NO) (on resistive load) conforming to IEC10 A at 28 V DC-1 (1 NO) (on resistive load) conforming to IEC5 A at 250 V AC-1 (1 NC) (on resistive load) conforming to IEC |
| Connections - Terminals | blade terminal |
| Package Weight(Lbs) | 83 g |
| Warranty (In Months) | 18 |
| Certificate Agency | UL, CSA, CE, EAC |
|---|---|
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Average Consumption | 3 VA |
| Contacts Type And Composition | 3 NO + 3 NC |
| Electrical Durability | 100000 cycles |
| Mechanical Durability | 5000000 cycles |
| Operating Time | 20 ms |
| Product Or Component Type | plug-in electromechanical relay |
| Returnability | No |
| Sustainable Packaging | Yes |
| Pep Code | ENVPEP2403024EN |
| Width Nominal | 35 mm |
| [Ue] Rated Operational Voltage | 24 V AC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536410050 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-55 °C, -40-55 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Circularity Profile | ENVEOLI2403024EN |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2403024EN |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Environmental Disclosure | ENVPEP2403024EN |
| Ip Degree Of Protection | IP40 |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | plug-in electromechanical relay |
|---|
