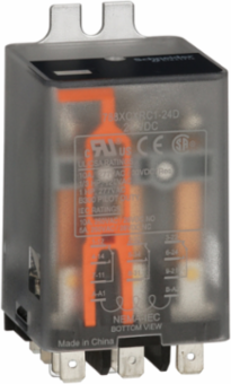

Schneider Electric 788XCXRC1-24D General purpose relay, SE Relays, 788R, 3PDT, 10A, 24 VDC, Quick terminal, flange cover
- MPN: 788XCXRC1-24D
- PPN: SCH-788XCXRC1-24D
CAD
$36.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The SE Relays 788R series, plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with flange cover option. Contacts rated as 10A resistive at 277VAC, motor 1/3hp at 120VAC, 1hp at 277VAC with nominal coil voltage 24VDC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact 3PDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Depth35.5 mm
Complementary Attributes
- Maximum Switching Voltage
- 300 V UL, 300 V CSA250 V IEC
- Line Rated Current
- 10 A
- Rated Power In Hp
- 0.33 HP 120 V AC1 HP 277 V AC
Control Circuit Voltage Limits0.8...1.1 Un DC
Minimum Switching Current10 mA 17 V DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Vibration Resistance
- +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation3 gn 35-150 Hz in operation
- Drop-out Voltage Threshold
- >= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2403024EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 4
- Function Option
- Standard
- Average Coil Consumption
- 1.4 W
- Contacts Type And Composition
- 3 NO + 3 NC
- Electrical Durability
- 100000 cycles
- Mechanical Durability
- 5000000 cycles
- Operating Time
- 20 ms
- Product Or Component Type
- plug-in electromechanical relay
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Pep Code
- ENVPEP2403024EN
- Width Nominal
- 35 mm
- [Ue] Rated Operational Voltage
- 24 V DC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536410050
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyUL, CSA, CE, EAC
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id4
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Materialsilver alloy, gold flashed
Dielectric Strength2500 V AC between coil and contact2000 V AC between poles1500 V AC between contacts
Local Signallingflag
Mounting Supportplug-inside flange
Product AvailabilityStock - Normally stocked in distribution facility
Resistance470 Ohm
Shock Resistance10 gn
Switch Function3PDT
Height Nominal70.3 mm
[Ie] Rated Operational Current5 A at 28 V DC-1 (1 NC) (on resistive load) conforming to IEC10 A at 277 V AC (on resistive load) conforming to UL10 A at 30 V DC (on resistive load) conforming to UL10 A at 250 V AC-1 (1 NO) (on resistive load) conforming to IEC10 A at 28 V DC-1 (1 NO) (on resistive load) conforming to IEC5 A at 250 V AC-1 (1 NC) (on resistive load) conforming to IEC
Connections - Terminalsblade terminal
Package Weight(Lbs)77.111 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-55 °C, -40-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Circularity Profile
- ENVEOLI2403024EN
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2403024EN
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Environmental DisclosureENVPEP2403024EN
Ip Degree Of ProtectionIP40
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- plug-in electromechanical relay
