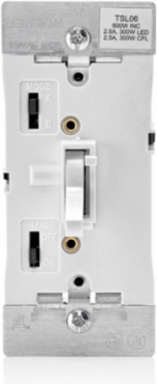

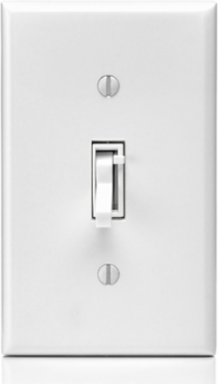

Leviton TSL06-1LW Toggle Slide Dimmer Switch, 300W LED & 600W Incandescent, White
- MPN: TSL06-1LW
- UPC: 078477771723
- PPN: LEV-TSL06-1LW
CAD
$37.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Replace a wall light switch with a Toggle Slide dimmer switch. 300W LED, 600W incandescent/halogen, 60Hz, single pole or 3-way installation. Can be installed with or without a neutral wire, use with Toggle Wallplate sold separately – White
Features

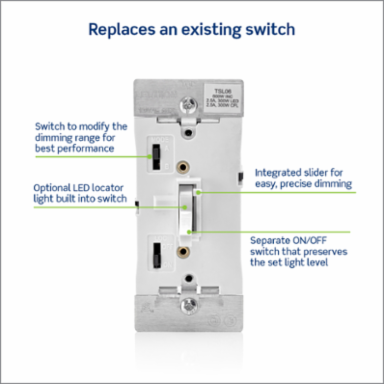

- Integrated linear full-range slide control for easy, precise operation
- Separate On/Off switch, to preserve set light level when turned off

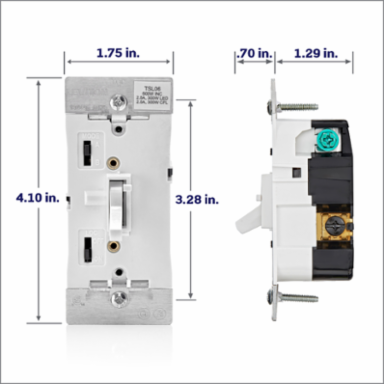

- Slim, compact housing fits easily into a standard wall box

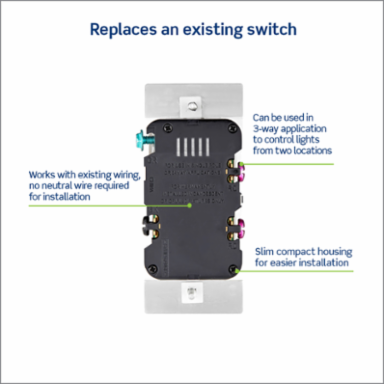

- Works with existing wiring, no neutral wire required for installation
- Designed to dim LED bulbs. To find out which LED bulbs pair best, visit our online bulb compatibility tool

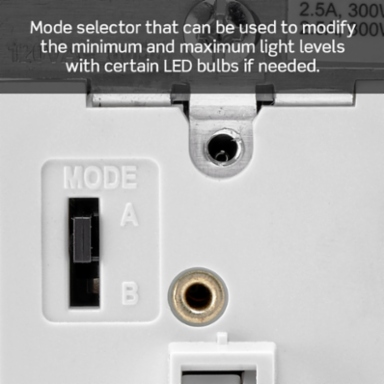

- Adjustable minimum and maximum dimming range for LED bulbs to help eliminate flicker, maximize energy savings, and optimize ambiance

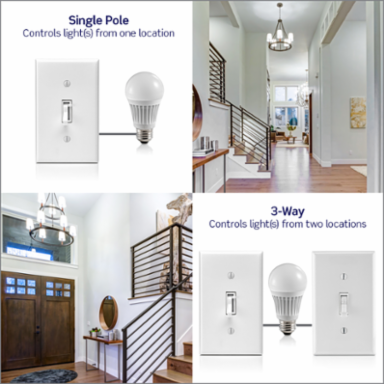

- Control the lights from two locations using the TSL06 in the main location and a 3-way switch (sold separately) in the second location
- Available in white, ivory, light almond, gray, black and brown color options
- CONVENIENT – An easy way to create a big impact for a minimal cost and customize the light level in any room, for any occasion and in any home
- EASY TO INSTALL – Slim profile for easier installation. Works with existing wiring, no neutral wire required for installation
- PRACTICAL – Designed to dim LED bulbs. To find out which LED bulbs pair best, visit our online bulb compatibility tool by clicking the "find an LED bulb" button below
- CUSTOMIZEABLE – Adjustable minimum and maximum dimming range for LED bulbs to help eliminate flicker, maximize energy savings, and optimize ambiance
- VERSATILE – Control the lights from two locations using the TSL06 in the main location and a 3-way switch (sold separately) in the second location
- STYLISH – Available in white, ivory, light almond, gray, black and brown color options
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Action
- Toggle Switch for ON/OFF, slide bar for lighting level control
- Color
- White
- Frequency
- 60 Hz
- Load Type
- Incandescent, Halogen, Dimmable LED, Dimmable CFL
- Preset
- Slide bar preserves desired lighting level
- Standards and Certifications
- cCSAus, NOM
- Switch Type
- Single-Pole & 3-Way
- Type
- Electro-Mechanical
- Wallplate
- Order Separately
Available ColorsWhite, Ivory, Light Almond
Device TypeToggle
Load Rating600W Incandescent and Halogen, 300W LED and CFL
Locator LightGreen locator light that can be disabled
ProtectionRadio/TV Filter
Style NameToggle Slide
Torque Range14 – 18 in.-lbs
Voltage120 VAC
Warranty5-Year Limited
