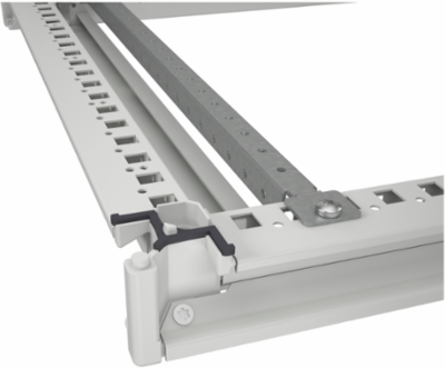

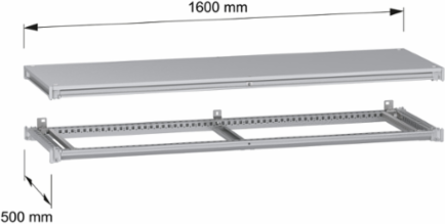

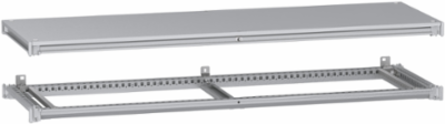

Schneider Electric NSYSFNC165 Bottom and top frame, PanelSeT SFN, for electrical enclosure W1600 D500mm, roof included

MPN: NSYSFNC165
PPN: SCH-NSYSFNC165
UNSPSC: 39121302

$1394.51

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

These steel frameworks are purpose-built to assemble a PanelSeT SFN floor standing modular decarbonized steel electrical enclosure for various applications. It contains recycled steel, which is produced with renewable energy, resulting into a significant reduction of CO2 emissions. This set of top and bottom frames and roof has a nominal width and depth of 1600 mm and 500 mm, respectively. It is made of galvanized steel for durability. An epoxy-polyester powder finish provides a smooth appearance. It has a grey (RAL 7035) color.

Features

Sustainable design that contains recycled steel manufactured with renewable energy to face environmental challenges.
Built for the purpose of assembling a PanelSeT SFN electrical enclosure in kit version.
Sturdy, robust, and durable for maximum component protection.
Ergonomic design for convenience & time-saving operations.
Available in different sizes to fit your installation needs.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain
Width	62.99 in
Depth	500 mm

Height	4.33 in
Weight	25600 g

Physical Attributes

Color	Gray RAL 7035)

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	1 bottom frame, 1 roof, 1 top frame
Mounting Location	bottom of vertical uprights, top of vertical uprights
Carbon Footprint Of The End Of Life Phase C1 To C4	58 kg CO2 eq., 57.98756898
Carbon Footprint Of The Manufacturing Phase A1 To A3	66 kg CO2 eq., 65.84547628
Local Data Status	Publishable
Return Indicator	Y
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2507020EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2306
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Application	multi-purpose
Fixing Mode	by screws - each corner of enclosure
Product Availability	Stock - Normally stocked in distribution facility
Quantity Per Set	set of 1
Returnability	Yes
Surface Finish	epoxy-polyester powder
Total Lifecycle Carbon Footprint	136 kg CO2 eq.
Data Source	extrapolated product
Height Useful	110 mm
Width Real	1600 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Enclosure Nominal Dimensions	- H: 2000 mm W: 1600 mm D: 500 mm, - H: 2000 mm W: 1600 mm D: 500 mm, - H: 2000 mm W: 1600 mm D: 500 mm, - H: 2000 mm W: 1600 mm D: 500 mm, - H: 2000 mm W: 1600 mm D: 500 mm, - H: 2000 mm W: 1600 mm D: 500 mm, - H: 2000 mm W: 1600 mm D: 500 mm, - H: 2000 mm W: 1600 mm D: 500 mm
Carbon Footprint Of The Distribution Phase A4	4.854205852, 5 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	6.87239173, 7 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-04-12
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Material	steel
Product Or Component Type	framework kit
Range	PanelSeT
Software Version	v5.9.4
Sustainable Packaging	No
Database Version	2022-01
Height Nominal	110 mm
Width Nominal	1600 mm
Accessory / Separate Part Category	enclosure accessory
Customs Code	9403999045
Functional Unit Description	Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529).& 10X = Total number of enclosures or cabinets = 1& 10In = Rated current allowed in this enclosure (A) = 2500A& 10Voltage range = Low Voltage& 10Current type = AC/DC Current
Functional Unit Unit	unit
Recyclability Potential In %	97

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Carbon Footprint	135.5596428
Environmental Disclosure	ENVPEP2301018EN
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-07-31
Psr Version	PSR-0005-ed2-2016 03 29

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2507020EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2301018EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
