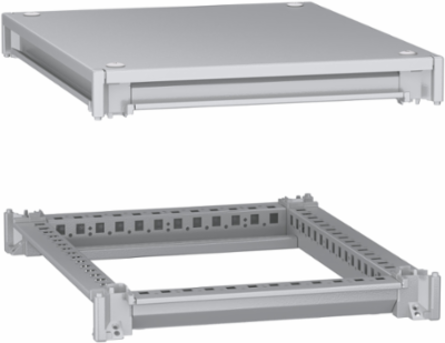

Schneider Electric NSYSFNC45 Bottom and top frame, PanelSeT SFN, for electrical enclosure W400 D500mm, roof included
- MPN: NSYSFNC45
- PPN: SCH-NSYSFNC45
CAD
$616.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
These steel frameworks are purpose-built to assemble a PanelSeT SFN floor standing modular decarbonized steel electrical enclosure for various applications. It contains recycled steel, which is produced with renewable energy, resulting into a significant reduction of CO2 emissions. This set of top and bottom frames and roof has a nominal width and depth of 400 mm and 500 mm, respectively. It is made of galvanized steel for durability. An epoxy-polyester powder finish provides a smooth appearance. It has a grey (RAL 7035) color.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain, France, United States
- Width
- 15.75 in
Height4.33 in

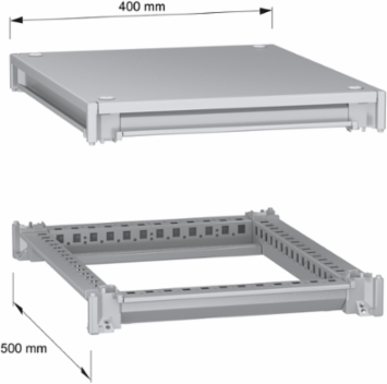

Depth500 mm
