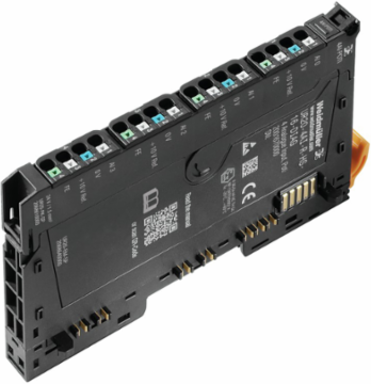

Weidmuller 2001670000 UR20-4AI-R-HS-16-DIAG
- MPN: 2001670000
- PPN: WDM-2001670000
CAD
$481.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Remote I/O module, IP20, 4-channel, Analog signals, Input, 16 Bit
Documentation & Downloads
Specifications
General Data
| Air humidity (operation) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
|---|---|
| Air humidity (transport) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
| Air pressure (storage) | 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2 |
| Pollution severity | 2 |
| Surge voltage category | II |
| UL 94 flammability rating | V-0 |
| Air humidity (storage) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
|---|---|
| Air pressure (operation) | ≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2 |
| Air pressure (transport) | 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2 |
| Shock | 15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27 |
| Test voltage | 500 V |
| Vibration resistance | 5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6, 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6 |
Approvals
| Approvals | CULUS, CULUSEX, DEMKOATEX, IECEXULD |
|---|---|
| UL File Number Search | E141197 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 11.5 mm |
|---|---|
| Height | 120 mm |
| Depth | 76 mm |
| Net weight | 89 g |
| Width (inches) | 0.453 inch |
|---|---|
| Height (inches) | 4.724 inch |
| Depth (inches) | 2.992 inch |
Connection Data
| Type of connection | PUSH IN |
|---|---|
| Wire connection cross-section, finely stranded, min. | 0.14 mm² |
| Wire cross-section, finely stranded, min. (AWG) | AWG 26 |
| Wire cross-section, solid, max. (AWG) | AWG 16 |
| Wire cross-section, solid, min. (AWG) | AWG 26 |
| Wire connection cross section, finely stranded, max. | 1.5 mm² |
|---|---|
| Wire cross-section, finely stranded, max. (AWG) | AWG 16 |
| Wire cross-section, solid, max. | 1.5 mm² |
| Wire cross-section, solid, min. | 0.14 mm² |

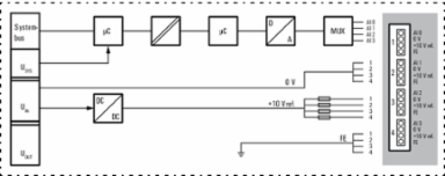

Analogue Inputs
| Accuracy | < ± 0.25 % FSR at 25 °C |
|---|---|
| Current of supply voltage output | max. 0.05 A per channel, total 0.2 A |
| Input resistance | typ. 500 kΩ against the wiper connection |
| Internal resistance U | 100 kΩ |
| Module diagnosis | Yes |
| Resolution | 16 Bit |
| Short-circuit-proof | Yes |
| Temperature coefficient | ≤ 50 ppm/K |
| Conversion time | typ. 500 μs (typ. 625 μs at 50 Hz / typ. 521 μs at 60 Hz frequency suppression) |
|---|---|
| Individual channel diagnosis | Yes |
| Input value | Ratiometric potentiometer evaluation with own power supply |
| Measurement range | 300 Ω …50 kΩ |
| Number of analogue inputs | 4 |

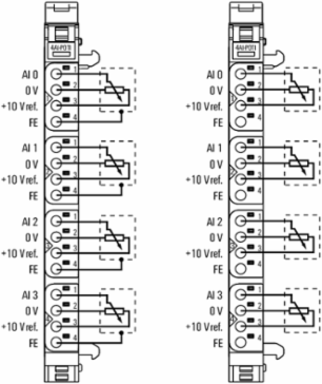

| Sensor connection | 3-wire, 3-wire + FE |
| Supply voltage for potentiometer | 10 V DC ± 10% |
| Wire-break recognition | Yes |
Classifications
| ETIM 6.0 | EC001597 |
|---|---|
| eClass 9.0 | 27-24-26-02 |
| eClass 10.0 | 27-24-26-02 |
| ETIM 7.0 | EC001597 |
|---|---|
| eClass 9.1 | 27-24-26-02 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
System Data
| Diagnostic data | 1 Bit |
|---|---|
| Galvanic isolation | 500 V DC between the current paths |
| Module type | Analogue input module |
| Field bus protocol | CANopen, DeviceNet, EtherCAT, EtherNet/IP, Modbus/TCP, PROFINET IRT, PROFIBUS DP-V1, POWERLINK |
|---|---|
| Interface | u-remote system bus |
| Process data | 8 Byte |
Temperatures
| Storage temperature, max. | 85 °C |
|---|---|
| Operating temperature | -20 °C ... +60 °C |
| Storage temperature, min. | -40 °C |
|---|---|
| Storage temperature | -40 °C ... +85 °C |
Power Supply
| Current consumption from I | 26 mA |
|---|
| Voltage supply | 24 V DC +20 %/ -15 %, via the system bus |
|---|
