Weidmuller 1315650000 UR20-8AI-I-16-HD
- MPN: 1315650000
- PPN: WDM-1315650000
CAD
$431.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

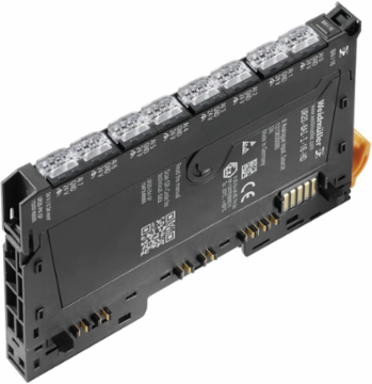

Remote I/O module, IP20, Analog signals, Input, 8-channel
Documentation & Downloads
Specifications
General Data
- Air humidity (operation)
- 10% to 95%, non-condensing as per DIN EN 61131-2
- Air humidity (transport)
- 10% to 95%, non-condensing as per DIN EN 61131-2
- Air pressure (storage)
- 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
- Pollution severity
- 2
- Surge voltage category
- II
- UL 94 flammability rating
- V-0
Air humidity (storage)10% to 95%, non-condensing as per DIN EN 61131-2
Air pressure (operation)≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2
Air pressure (transport)1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Shock15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27
Test voltage500 V
Vibration resistance5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6, 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6
Approvals
- Approvals
- CULUS, CULUSEX, DEMKOATEX, IECEXULD, KOREANCERT
- UL File Number Search
- E141197
ROHSConform
Dimensions And Weights
- Width
- 11.5 mm
- Height
- 120 mm
- Depth
- 76 mm
- Mounting dimension - height
- 128 mm
Width (inches)0.453 inch
Height (inches)4.724 inch
Depth (inches)2.992 inch
Net weight74 g
Connection Data
- Wire connection cross section, finely stranded, max.
- 0.35 mm²
- Wire cross-section, finely stranded, max. (AWG)
- AWG 22
- Wire cross-section, solid, max.
- 0.35 mm²
- Wire cross-section, solid, min.
- 0.14 mm²
Wire connection cross-section, finely stranded, min.0.14 mm²
Wire cross-section, finely stranded, min. (AWG)AWG 26
Wire cross-section, solid, max. (AWG)AWG 22
Wire cross-section, solid, min. (AWG)AWG 26
Analogue Inputs
- Accuracy
- 0.1% FSR
- Individual channel diagnosis
- No
- Internal resistance I
- 50 Ω
- Number of analogue inputs
- 8
- Reverse polarity protection
- Yes
- Short-circuit-proof
- Yes
Conversion time1 ms
Input valueCurrent I (0…20 mA, 4…20 mA)
Module diagnosisYes
Resolution16 Bit

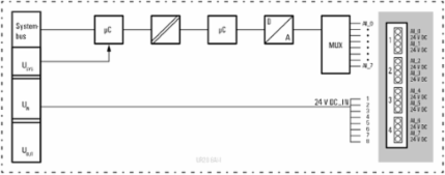

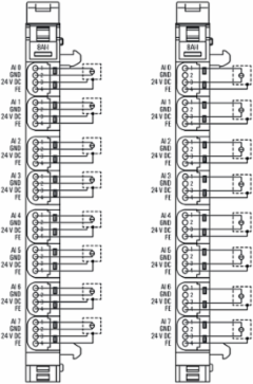

Sensor connection2-wire, 3-wire, 3-wire + FE
Classifications
- ETIM 6.0
- EC001597
- eClass 9.0
- 27-24-26-02
- eClass 10.0
- 27-24-26-02
ETIM 7.0EC001597
eClass 9.127-24-26-02
Product Information
- Product information

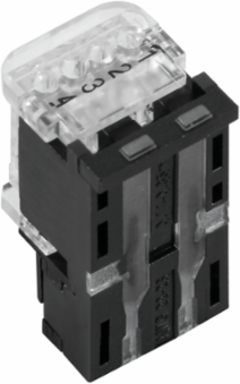

- Note: Please order connector (1469340000) separately
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
System Data
- Field bus protocol
- CANopen, DeviceNet, EtherCAT, EtherNet/IP, Modbus/TCP, PROFINET IRT, PROFIBUS DP-V1, POWERLINK
- Interface
- u-remote system bus
- Process data
- 16 Byte
Galvanic isolationYes, between field and system bus
Module typeAnalogue input module
Transmission speed of system bus, max.48 Mbit
Temperatures
- Storage temperature, max.
- 85 °C
- Operating temperature
- -20 °C ... +60 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C ... +85 °C
Power Supply
- Current consumption from I
- 20 mA + load
- Voltage supply
- 24 V DC +20 %/ -15 %, via the system bus
Reverse polarity protectionYes
