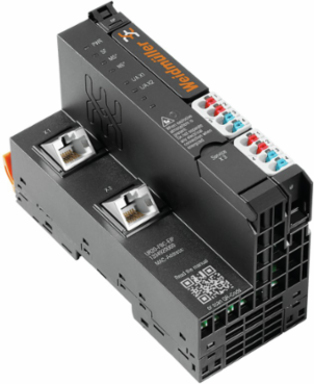

Weidmuller 1334920000 UR20-FBC-EIP
- MPN: 1334920000
- PPN: WDM-1334920000
CAD
$808.22
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Remote I/O fieldbus coupler, IP20, Ethernet, EtherNet/IP
Documentation & Downloads
Specifications
General Data
| Air humidity (operation) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
|---|---|
| Air humidity (transport) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
| Air pressure (storage) | 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2 |
| Pollution severity | 2 |
| Surge voltage category | II |
| UL 94 flammability rating | V-0 |
| Air humidity (storage) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
|---|---|
| Air pressure (operation) | ≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2 |
| Air pressure (transport) | 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2 |
| Shock | 15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27 |
| Test voltage | 500 V |
| Vibration resistance | 5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6, 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6 |
Approvals
| Approvals | ABS, BURVER, CE, CULUS, CULUSEX, DEMKOATEX, DNV GL, IECEXULD, KOREANCERT, LLOYDSREG, RINA |
|---|---|
| UL File Number Search | E141197 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 52 mm |
|---|---|
| Height | 120 mm |
| Depth | 76 mm |
| Mounting dimension - height | 128 mm |
| Net weight | 223 g |
| Width (inches) | 2.047 inch |
|---|---|
| Height (inches) | 4.724 inch |
| Depth (inches) | 2.992 inch |
| Weight | 247 g |
Connection Data
| Type of connection | PUSH IN |
|---|---|
| Wire connection cross-section, finely stranded, min. | 0.14 mm² |
| Wire cross-section, finely stranded, min. (AWG) | AWG 26 |
| Wire cross-section, solid, max. (AWG) | AWG 16 |
| Wire cross-section, solid, min. (AWG) | AWG 26 |
| Wire connection cross section, finely stranded, max. | 1.5 mm² |
|---|---|
| Wire cross-section, finely stranded, max. (AWG) | AWG 16 |
| Wire cross-section, solid, max. | 1.5 mm² |
| Wire cross-section, solid, min. | 0.14 mm² |
Classifications
| ETIM 6.0 | EC001603 |
|---|---|
| eClass 9.0 | 27-24-26-07 |
| eClass 10.0 | 27-24-26-07 |
| ETIM 7.0 | EC001603 |
|---|---|
| eClass 9.1 | 27-24-26-08 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
System Data
| Configuration interface | Micro USB 2.0 |
|---|---|
| Diagnostic data | 3,008 Byte |
| Interface | u-remote system bus |
| Parameter data | 4 kByte |
| Transmission speed of system bus, max. | 48 Mbit/s |
| Connection type | 2 x RJ45 plug-in connectors |
|---|---|
| Field bus protocol | EtherNet/IP |
| Module type | Bus coupler |
| Process data | 988 Byte |
| max. number of modules | 64 ???U135??? |
Temperatures
| Operating temperature, max. | 60 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -20 °C ... +60 °C |
| Operating temperature, min. | -20 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C ... +85 °C |
Power Supply
| Current consumption from I | 112 mA |
|---|---|
| Feed current for the system, max. | 4 A |
| Supply voltage system and inputs | 24 V DC +20 %/ -15 % |
| Feed current for I | 10 A |
|---|---|
| Supply voltage for outputs | 24 V DC +20 %/ -15 % |
| Voltage supply | 24 V DC +20 %/ -15 %, via the system bus |
