Weidmuller 2476450000 UR20-FBC-MOD-TCP-V2
- MPN: 2476450000
- PPN: WDM-2476450000
CAD
$681.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

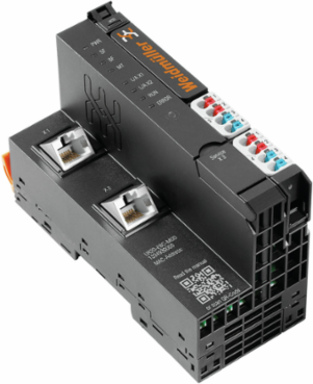

Remote I/O fieldbus coupler, IP20, Ethernet, Modbus/TCP
Documentation & Downloads
Specifications
General Data
- Air humidity (operation)
- 10% to 95%, non-condensing as per DIN EN 61131-2
- Air humidity (transport)
- 10% to 95%, non-condensing as per DIN EN 61131-2
- Air pressure (storage)
- 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
- Pollution severity
- 2
- Surge voltage category
- II
- UL 94 flammability rating
- V-0
Air humidity (storage)10% to 95%, non-condensing as per DIN EN 61131-2
Air pressure (operation)≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2
Air pressure (transport)1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Shock15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27
Test voltage500 V
Vibration resistance5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6, 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6
Approvals
- Approvals
- ABS, BURVER, CULUS, CULUSEX, DEMKOATEX, DNV GL, IECEXULD, LLOYDSREG, RINA
- UL File Number Search
- E141197
ROHSConform
Dimensions And Weights
- Width
- 52 mm
- Height
- 120 mm
- Depth
- 76 mm
- Mounting dimension - height
- 128 mm
Width (inches)2.047 inch
Height (inches)4.724 inch
Depth (inches)2.992 inch
Net weight223 g
Connection Data
- Type of connection
- PUSH IN
- Wire connection cross-section, finely stranded, min.
- 0.14 mm²
- Wire cross-section, finely stranded, min. (AWG)
- AWG 26
- Wire cross-section, solid, max. (AWG)
- AWG 16
- Wire cross-section, solid, min. (AWG)
- AWG 26
Wire connection cross section, finely stranded, max.1.5 mm²
Wire cross-section, finely stranded, max. (AWG)AWG 16
Wire cross-section, solid, max.1.5 mm²
Wire cross-section, solid, min.0.14 mm²
Classifications
- ETIM 6.0
- EC001603
- eClass 9.0
- 27-24-26-07
- eClass 10.0
- 27-24-26-07
ETIM 7.0EC001603
eClass 9.127-24-26-08
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1

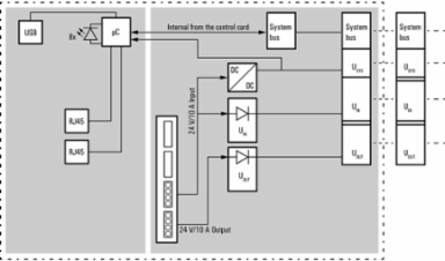

System Data
- Configuration interface
- Micro USB 2.0
- Diagnostic data
- 1,024 Byte
- Fieldbus interface
- Full / Half Duplex, Auto MDI/X, Autonegotiation
- Interface
- u-remote system bus
- Parameter data
- 1,024 Byte
- Transmission speed of system bus, max.
- 48 Mbit/s

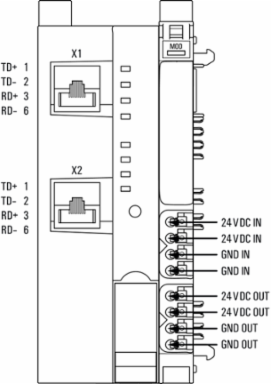

Connection type2 x RJ45 plug-in connectors
Field bus protocolModbus/TCP
Galvanic isolationYes, between field and system bus
Module typeBus coupler
Process data8 kByte
max. number of modules64
Temperatures
- Operating temperature, max.
- 60 °C
- Storage temperature, max.
- 85 °C
- Operating temperature
- -20 °C ... +60 °C
Operating temperature, min.-20 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C ... +85 °C
Power Supply
- Current consumption from I
- 112 mA
- Feed current for the system, max.
- 4 A
- Supply voltage system and inputs
- 24 V DC +20 %/ -15 %
Feed current for I10 A
Supply voltage for outputs24 V DC +20 %/ -15 %
Voltage supply24 V DC +20 %/ -15 %, via the system bus
