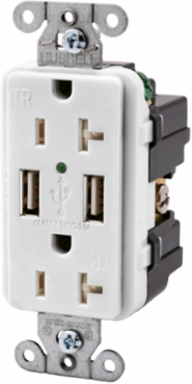

Hubbell Wiring Device-Kellems USB20X2W USB Charger Receptacle, 20A, 125V, Tamper-Resistant

MPN: USB20X2W
UPC: 883778304859
PPN: HBL-USB20X2W

$44.26

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

USB Charger Receptacle, 20A, 125V, Tamper-Resistant

Features

Two USB ports 3.8 Amp, 5V DC, type A, class 2.0
Tamper-Resistant decorator duplex receptacle
Green LED indicator to show USB power available
Compatible with USB 1.1/2.0/3.0 devices, including Apple® products

Specifications

Key Specifications

Face	RTP
LED	Green Indicator
Clamp	Plated steel
Mounting Strap	.040" Zinc plated steel
USB Port	Stainless Steel

Base	RTP
Contacts	Plated steel
Terminal Screws	Plated steel
Mounting Screws	Zinc plated steel

Ordering Information

Description	USB 20A 125V AC Charger Tamper-Resistant receptacle,Two USB Type 2.0 ports 3.8 Amp, 5 Volt DC

Device Color	White

Electrical

Current Interrupting	Certified for current interrupting at full rated current

Dielectric Voltage	Withstands 2,000V minimum

Mechanical

Product Identification	Ratings are a permanent part of the device
Terminal Identification	Terminals identified in accordance with UL 498 and CSA

Terminal Accommodation	#14-#10 AWG copper stranded or solid conductor only
USB Port	Stainless steel Rated for 10,000 plug insertions and removal

Environmental

Flammability	UL 94V-2

Operating Temperature	Maximum continuous 75°C; minimum -40°C (w/o impact)
