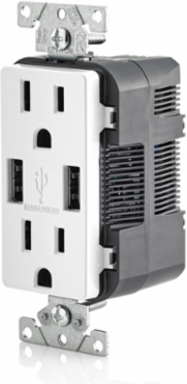

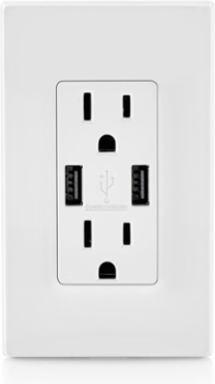

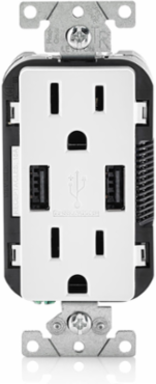

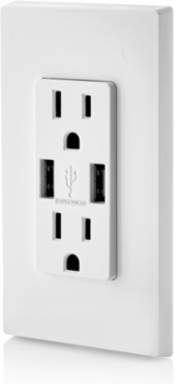

Leviton T5632-W 3.6A USB Type A/A Wall Outlet Charger with 15A Tamper-Resistant Receptacle
- MPN: T5632-W
- UPC: 078477683866
- PPN: LEV-T5632-W
CAD
$17.86
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Combination Duplex Receptacle/Outlet and USB Charger. 15 Amp, 125 Volt, Decora Tamper-Resistant Receptacle/Outlet, NEMA 5-15R. 3.6 Amps, 5VDC, 2.0 Type A USB Chargers. Grounding, Side Wired & Back Wired - White
Features

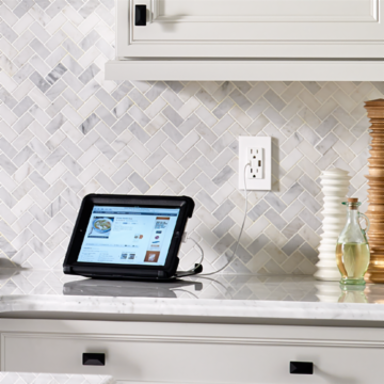

- Perfect for use in residential applications such as kitchens, bedrooms and home offices and in commercial applications such as hotels, airports, restaurants and cafes, salons, office cubicles and college dorm rooms
- Smart chip recognizes and optimizes the charging requirements of individual devices
- USB Ports are positioned vertically providing more space for maneuvering and reducing stress on USB cables
- Compatible with USB 3.0, 2.0, 1.1 devices
- Fits in a standard wallbox, is compatible with standard wallplates and can be multi-ganged with other devices
- Easy to install. Can replace existing outlets
- No data transfer capability
- SMART - Built-in smart chip recognizes the individual device’s charging requirement to optimize the charge
- POWERFUL – Two high-powered charging ports with 3.6A of charging power
- CONVENIENT – No more searching for charging adapters! Upgrade your existing outlets so you can charge up to two USB powered electronics at once, leaving the outlets free for additional power needs
- EASY - Compact design fits in a standard wallbox and works with Decora and Decora Plus screwless wallplates.
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- Horsepower Rating
- 15A-1/2 HP
- USB Output Voltage
- 5 V DC
- USB Version
- 2.0
- Termination
- Back & Side Wiring
- Terminal Accommodation
- 14-12 AWG
- Body Material
- Thermoplastic
- Strap Material
- Steel
- Standards and Certifications
- cCSAus Listed, UL 1310, UL 498, FCC Part 15 Class B, NOM 057
- Grade
- Residential/Commercial Specification Grade
- Brand
- Decora
- Terminal ID
- Brass-Hot, Black-Hot, White-Neutral, Green-Ground
- Product Type
- Outlet/USB Combo
Voltage125 VAC
USB Charging Current3.6 A
USB TypeType A
NEMA5-15R
Torque Range12-14 in.-lbs
GroundingGrounding
Cover MaterialThermoplastic
FlammabilityV-0 per UL 94
Operating Temperature-10B0C to 40B0C
ColorWhite
Country Of OriginChina
Product IDStamped on Strap
