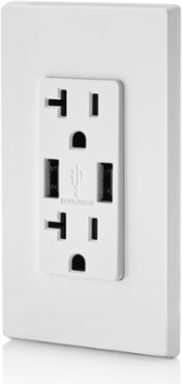

Leviton T5832-W 3.6A USB Type-A/Type-A Wall Outlet Charger with 20A Tamper-Resistant Receptacles
Leviton T5832-W 3.6A USB Type-A/Type-A Wall Outlet Charger with 20A Tamper-Resistant Receptacles
- MPN: T5832-W
- UPC: 078477683873
- PPN: LEV-T5832-W
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$47.87/ EA
Description

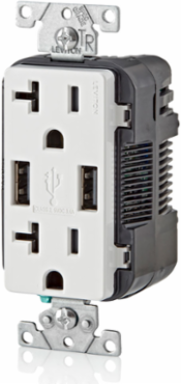

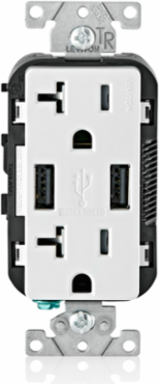

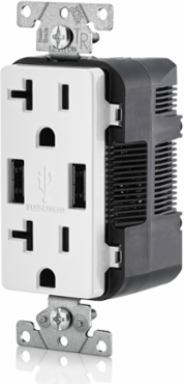

Combination Duplex Receptacle/Outlet and USB Charger. 20 Amp, 125 Volt, Decora Tamper-Resistant Receptacle/Outlet, NEMA 5-20R. 3.6 Amps, 5VDC, 2.0 Type A USB Chargers. Grounding, Side Wired & Back Wired - White
Features

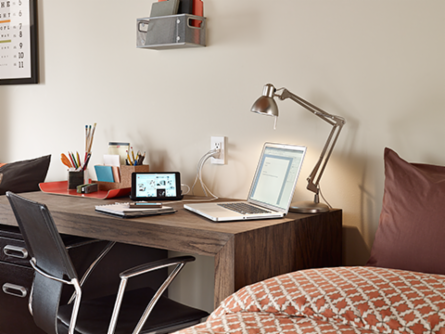

- Perfect for use in residential applications such as kitchens, bedrooms and home offices and in commercial applications such as hotels, airports, restaurants and cafes, salons, office cubicles and college dorm rooms
- Smart chip recognizes and optimizes the charging requirements of individual devices
- Tested to withstand over 10,000 insertions.
- Compatible with USB 3.1, 3.0, 2.0, 1.1 devices
- Fits in a standard wallbox, is compatible with standard wallplates and can be multi-ganged with other devices
- Easy to install. Can replace existing outlets
- No data transfer capability

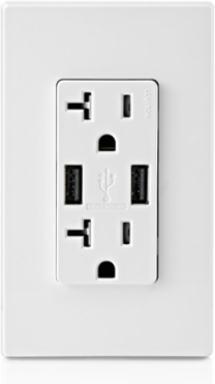

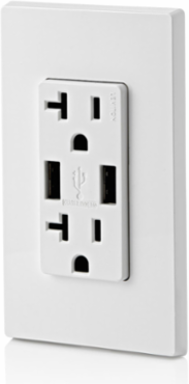

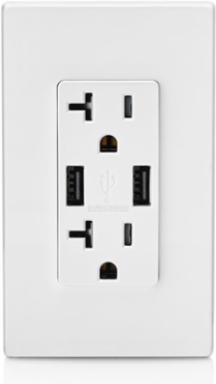

- Compatible with Decora® wallplates and Decora Plus™ screwless wallplates. Wallplate sold separately
- SMART - Built-in smart chip recognizes the individual device’s charging requirement to optimize the charge
- POWERFUL – Two high-powered charging ports with 3.6A of charging power
- CONVENIENT – No more searching for charging adapters! Upgrade your existing outlets so you can charge up to two USB powered electronics at once, leaving the outlets free for additional power needs
- EASY - Compact design fits in a standard wallbox and works with Decora and Decora Plus screwless wallplates.
Specifications
Standards and Certifications
- FCC Part 15
- Class B for Residential Compliance
- NOM
- 057
- UL 498
- Yes
ListedcCSAus
UL 1310Yes
Warranty2-Year Limited
Material Specifications
- Body Material
- Thermoplastic
- Cover Material
- Thermoplastic
- Strap Material
- Steel
- Terminal ID
- Brass-Hot Black-Hot White-Neutral Green-Gnd
- Torque Range
- 14 – 18 in.-lbs
ColorWhite
Product IDStamped on Strap
Terminal Accom.14-12 AWG
TerminationBack & Side
Mechanical Specifications
- Amperage
- 20 A
- Grade
- Residential/Commercial Specification Grade
- Terminal Accom.
- 14-12 AWG
- Termination
- Back & Side
ColorWhite
Product IDStamped on Strap
Terminal IDBrass-Hot Black-Hot White-Neutral Green-Gnd
Torque Range14 – 18 in.-lbs
Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Brand
- Decora
- Product Type
- Outlet/USB Combo
- Voltage
- 125 VAC

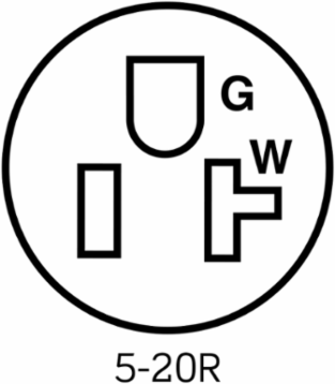

NEMA5-20R
TypeType A/A Duplex Receptacle
WallplateNot Included
Environmental Specifications
- Body Material
- Thermoplastic
- Cover Material
- Thermoplastic
- Operating Temperature
- -10°C to 40°C
ColorWhite
FlammabilityRated V-0 per UL 94
Strap MaterialSteel
Electrical Specifications
- Amperage
- 20 A
- Grounding
- Grounding
- Operating Temperature
- -10°C to 40°C
FlammabilityRated V-0 per UL 94
Horsepower Rating20A-1 HP
Ratings20A-125V
