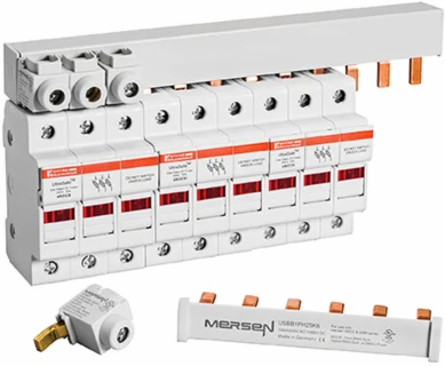

Mersen USBB1PHEC UltraSafe Comb Bus Bar, 4-12 Poles, 100-200 A, 600-1000 VDC, Copper Brass
- MPN: USBB1PHEC
- UPC: 782001441401
- PPN: FER-USBB1PHEC
CAD
$3.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Mersen USBB UltraSafe bus bar systems are intended for use with UltraSafe Class CC (USCC) and Midget (USM) fuse holders. The USBB delivers safe and reliable combination of circuits in a compact design. Bus bar systems reduce installation time when compared to wire solutions, offer space savings and deliver touch-safe, shock resistant solutions to panel builders and designers. 1-, 2-, and 3-phase designs available.
Features
- This protective component insulates the exposed, cut ends of your distribution copper, effectively eliminating hazardous shock liabilities during active maintenance. By closing off open conductors, it helps your panel maintain strict safety protocols and guarantees safe, touch-resistant operation for field technicians working inside energized enclosures.
- Built to withstand rigorous industrial loads, it carries a full electrical insulation rating of up to 600V AC and 1000V DC. This robust voltage threshold prevents phase-to-phase arcing and localized tracking, providing critical breakdown protection in highly packed, high-density control panels and solar string combiner boxes.
- This components fulfills necessary regulatory benchmarks by being fully UL 508 Listed (File E348854) and IEC 60947-2 compliant for power distribution safety. Additionally, the component is completely lead-free and RoHS compliant, giving your facility a straightforward path to passing strict electrical inspections and green-initiative compliance audits.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC, 1000 V DC
- SCCR
- 100 kA (with Class J fuse, max 200A)
- Length
- 0.61 in
- Width
- 0.16 in
- Material
- Copper, Brass
Number of Poles1-Pole
Phase1-, 2-, 3-phase
Height0.69 in
Weight0.011 lb
ComplianceUL 508 Listed, IEC Compliant, RoHS Compliant
