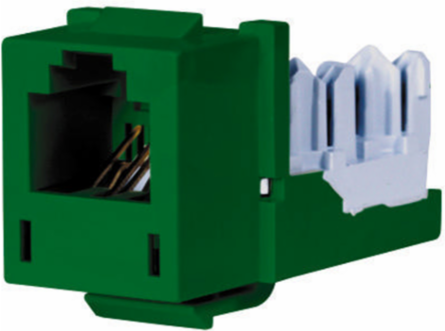

Bryant HXJUGN XCELERATOR Telephone/Data Jack, 6-Position USOC, Thermoplastic, Green
- MPN: HXJUGN
- UPC: 662620824796
- PPN: HBL-HXJUGN
- UNSPSC: 39121444
CAD
$7.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Telephone/Data, Jack, XCELERATOR, USOC 6-Position
Features
- RJ-25 USOC (RJ-25) Jack
- Exclusive 1-Punch Termination Reduces Termination Time by 75%
- Mating Cycles Exceed Industry Standard by Four Times
- Bulk Packaging Reduces Excess Waste on the Job
- Quick-Lace Termination
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Width
- 2.930 in
- Number of Pieces in Package
- 1
- Size
- 0.86 (22) x 0.67 ( 17) x 1.29 ( 33)
- Color
- Green
- Contact Resistance
- 100 Ohm
- Mounting
- Snap-fit
- Standard
- 6-Position USOC Compliant;CSA Certified;Mechanical TIA-568;RoHS Compliant;UL Listed 1864
- Temperature Rating
- Max Continuous- 75° C, Minimum- -40° C Without Impact
- Withstand Voltage
- 1,000 Vac @ 60 Hz
- Construction Material - Main
- Thermoplastic
- Mounting Type
- Snap-fit
- Style
- RJ-45 Jack
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- FM241
- Material - Mounting Hardware
- Keystone
- Series
- XCELERATOR™ Series
- BOX SIZE
- 4.500x6.300x5.500 (in)
- Carton - Number of Sub Packs
- 25
- Carton - SCC-14 Next Lower Level Sub Pack
- 662620824796
- Case - Total Units
- 650 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70662620824795
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Contact Point MaterialBeryllium Copper with Gold Over Plating
Industry Standard(s)6-Position USOC Compliant;CSA Certified;Mechanical TIA-568;RoHS Compliant;UL Listed 1864
PerformanceUSOC
ApplicationTelephone
ContactIDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Special FeaturesQuick-Lace Termination
Sub BrandXCELERATOR™
TypeModular Jack
ConnectivityRJ45 Jack to IDC Punch Down
Display SizeStandard Sized Product
Operating Cycles2000 Plug
Description - InvoiceJACK, HXJ,6POS,USOC,GN
Harmonization Code8536698000
MSDS FlagNo
Sub Class CodeHPWALL2
Material - HousingHigh-impact thermoplastic (UL 94V-0)
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.250 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25 EA
Case Weight19.150 lb.
Lowest Level UOMEach
Pallet Height36.900 in
Pallet Weight229.800 lb.
Certifications
- EU RoHS Indicator
- Yes
