Hubbell

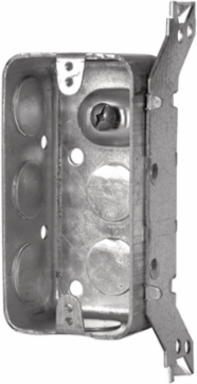

Hubbell 2018SB Utility Box, 1-1/2 in. Deep, 11.5 Cu. In., with Side Bracket, Raised Ground Screw, 1/2 in. KO (50-Pack)

Utility Box, 1-1/2 in. Deep, 11.5 Cu. In., with Side Bracket, Raised Ground Screw, 1/2 in. KO (50-Pack)
Utility Box, 1-1/2 in. Deep, 11.5 Cu. In., with Side Bracket, Raised Ground Screw, 1/2 in. KO (50-Pack)
  • MPN: 2018SB
  • UPC: 626463001493
  • PPN: HBL-2018SB
  • UNSPSC: 39121308

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$12.20/ EA

Description

Utility Box, 1-1/2 in. Deep, 11.5 Cu. In., with Side Bracket, Raised Ground Screw, 1/2 in. KO (50-Pack).

Features

  • Raised ground screw provides easier access and prevents the ground screw from protruding beyond the bottom of the box when tightened, Covers are designed to match the contours of the box, Cover corners are rounded, All covers have captive screws, Self-tapping ground screws which virtually eliminate stripping, Mounting screws are included with covers

Specifications

Specifications

Actual Depth
1.477 in
Industry Standard(s)
CSA Certified
Color
Gray
Special Features
Raised ground screw provides easier access and prevents the ground screw from protruding beyond the bottom of the box when tightened, Covers are designed to match the contours of the box, Cover corners are rounded, All covers have captive screws, Self-tapping ground screws which virtually eliminate stripping, Mounting screws are included with covers
Sub Brand
tradeSELECT
Bracket Type
SB, Side Bracket
Class Code
T01
Harmonization Code
7326909090
Sub Class Code
T01T010
Drawn or Welded
Drawn
Knockouts - Bottom
2 x 1/2in
Knockouts - Side
3 x 1/2in
Raised Ground
Yes
Material
Steel
Base Unit of Measure
EA
Case Weight
0.000
Pallet Length
42 in
Pallet Width
46 in
Country of OriginCA
ApplicationUtility boxes are used for convenience outlets, switch boxes or small junction boxes. They are popular for exposed work applications (surface mounted wiring).
Knockouts7 x 1/2 in
StandardCSA Certified
TypeHandy Box, Box
Weight0.41 lb.
Freight Class Code06168002
Image Actual Or RepresentativeA
Bracket Setback0.4375
GangableNo
Knockouts - End2 x 1/2in
Plaster EarsNo
Wiring SystemConduit
Number of Gang(s)1-Gang
Carton - SCC-14 Next Lower Level Sub Pack00626463001493
Pallet Height47.9 in
Pallet Weight1322 lb.

Certifications

Certified Listed
CSA
