Hubbell

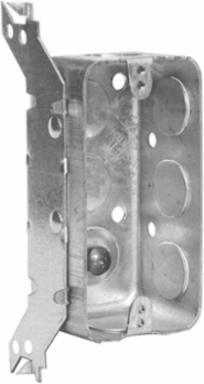

Hubbell 2020SB Utility Box, 1-7/8 in. Deep, 14 Cu. In., with Side Bracket, Raised Ground Screw, 1/2 in. KO (50-Pack)

Utility Box, 1-7/8 in. Deep, 14 Cu. In., with Side Bracket, Raised Ground Screw, 1/2 in. KO (50-Pack)
Utility Box, 1-7/8 in. Deep, 14 Cu. In., with Side Bracket, Raised Ground Screw, 1/2 in. KO (50-Pack)
  • MPN: 2020SB
  • UPC: 626463001523
  • PPN: HBL-2020SB
  • UNSPSC: 39121308

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$15.08/ EA

Description

Utility Box, 1-7/8 in. Deep, 14 Cu. In., with Side Bracket, Raised Ground Screw, 1/2 in. KO (50-Pack).

Specifications

Specifications

Actual Depth
1.875 in
Application
Utility boxes are used for convenience outlets, switch boxes or small junction boxes. They are popular for exposed work applications (surface mounted wiring).
Knockouts
7 x 1/2 in
Type
Handy Box, Box
Weight
0.48 lb.
Freight Class Code
06168002
Image Actual Or Representative
A
Bracket Setback
0.4375
Gangable
No
Knockouts - End
2 x 1/2in
Plaster Ears
No
Wiring System
Conduit
Number of Gang(s)
1-Gang
Carton - SCC-14 Next Lower Level Sub Pack
00626463001523
Pallet Height
46.65 in
Pallet Weight
953 lb.
Country of OriginCA
ColorGray
StandardCSA
Bracket TypeSB, Side Bracket
Class CodeT01
Harmonization Code7326909090
Sub Class CodeT01T010
Drawn or WeldedDrawn
Knockouts - Bottom2 x 1/2in
Knockouts - Side3 x 1/2in
Raised GroundYes
MaterialSteel
Base Unit of MeasureEA
Case Weight0.000
Pallet Length42 in
Pallet Width46 in

Certifications

Certified Listed
CSA

Downloads
