nVent Hoffman

nVent Hoffman UU1008030 Ultrx Enclosure Solid Door Type 4X, 1000x800x300mm, Lt Gray, Fiberglass

Ultrx Enclosure Solid Door Type 4X, 1000x800x300mm, Lt Gray, Fiberglass
  • MPN: UU1008030
  • UPC: 783510358402
  • PPN: HOF-UU1008030
  • UNSPSC: 39121324

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2865.69/ EA

Description

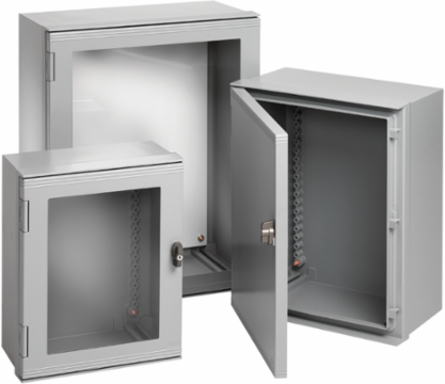

Ultrx fiberglass enclosures are aesthetically pleasing and provide outdoor, corrosion protection. This Ultrx Solid Door Type 4X, UU1008030 item measures 1000x800x300mm with a material of Fiberglass colored Lt Gray.

Features

  • Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties, including high-impact resistance
  • Fiberglass is easily punched, drilled, filed or sawed
  • Seamless foam-in-place gasket assures water-tight and dust-tight seal
  • Enclosure may be rotated 180 degrees for left and right hinging
  • Molded-in drip shields are standard with each enclosure
  • Impact-resistant polycarbonate window is permanently bonded in place
  • Fiberglass mounting brackets and stainless steel attachment screws are provided with each enclosure
  • Unique hinge design allows for standard 180 degree door opening with a maximum opening of 270 degrees
  • Door hinges are replaceable
  • Type 316 stainless steel quarter-turn latch
  • Optional keylocking or padlocking handle available
  • Molded-in DIN bosses
  • Molded bosses on door provide additional mounting provisions
  • Integral mounting rails provide infinite panel adjustment front to back
  • Optional data pocket is high-impact thermoplastic

Specifications

Specifications

BABA
Yes, BABA Compliant
Width (W)
825
Protection Rating
NEMA Type 12
Finish
Smooth Matte
Color Code
RAL 7035
Door Type
Solid
Mounting (G x H)
768 x 968
Weight
62
Material
Fiberglass
Cubic Capacity
15954 cubic in
Height (H)1,025
Depth (D)329
Product FamilyUltrx
ColorLight Gray
Thickness (T)3.8
Internal Dimensions (A x B x C)39.68 x 31.81 x 12.64
IP RatingIP66
Sub BrandUltrx
Size1025 x 825 mm
NEMA Rating4X Watertight, corrosion-resistant
