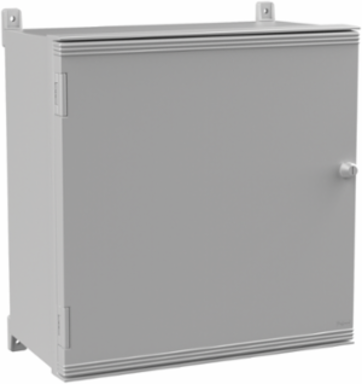

nVent Hoffman UU606030 Ultrx Enclosure Solid Door Type 4X, 600x600x300mm, Lt Gray, Fiberglass
- MPN: UU606030
- UPC: 783510358303
- PPN: HOF-UU606030
- UNSPSC: 39121324
CAD
$1876.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Ultrx fiberglass enclosures are aesthetically pleasing and provide outdoor, corrosion protection. This Ultrx Solid Door Type 4X, UU606030 item measures 600x600x300mm with a material of Fiberglass colored Lt Gray.
Features
- Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties, including high-impact resistance
- Fiberglass is easily punched, drilled, filed or sawed
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Enclosure may be rotated 180 degrees for left and right hinging
- Molded-in drip shields are standard with each enclosure
- Impact-resistant polycarbonate window is permanently bonded in place
- Fiberglass mounting brackets and stainless steel attachment screws are provided with each enclosure
- Unique hinge design allows for standard 180 degree door opening with a maximum opening of 270 degrees
- Door hinges are replaceable
- Type 316 stainless steel quarter-turn latch
- Optional keylocking or padlocking handle available
- Molded-in DIN bosses
- Molded bosses on door provide additional mounting provisions
- Integral mounting rails provide infinite panel adjustment front to back
- Optional data pocket is high-impact thermoplastic
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Yes, BABA Compliant
- Width (W)
- 612
- Protection Rating
- NEMA Type 12
- Finish
- Smooth Matte
- Color Code
- RAL 7035
- Door Type
- Solid
- Mounting (G x H)
- 555 x 568
- Weight
- 37.4
- Material
- Fiberglass
- Cubic Capacity
- 7090 cubic in
Height (H)625
Depth (D)329
Product FamilyUltrx
ColorLight Gray
Thickness (T)3.8
Internal Dimensions (A x B x C)23.94 x 23.43 x 12.64
IP RatingIP66
Sub BrandUltrx
Size24.61 x 24.09 in
NEMA Rating4X Watertight, corrosion-resistant
