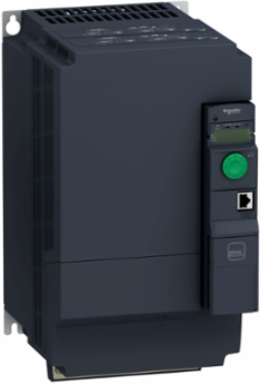

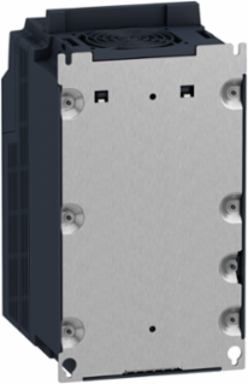

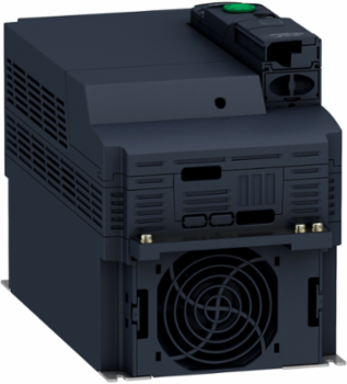

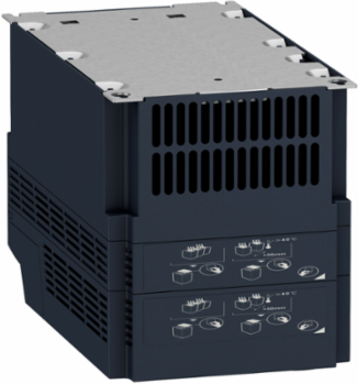

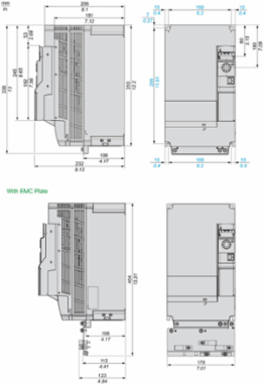

Schneider Electric ATV320D15N4B Altivar Machine Variable Speed Drive, 15 kW, 380-500V, IEC 60721-3-3
- MPN: ATV320D15N4B
- PPN: SCH-ATV320D15N4B
CAD
$2858.57
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Altivar Machine Variable Speed Drive, 15 kW, 380-500V, IEC 60721-3-3
Features
- Designed with a slim "Book" profile, this 15kW Altivar Machine drive allows for side-by-side mounting with zero clearance, significantly reducing the overall footprint of your electrical enclosure. This space-saving design is ideal for industrial OEMs and panel builders looking to maximize cabinet density while maintaining superior airflow and cooling efficiency.
- This VFD supports high-performance open-loop and closed-loop control for both asynchronous and synchronous motors, providing exceptional torque ripple reduction and speed accuracy. By optimizing motor performance for demanding applications like conveyors, packaging, or material handling, you achieve smoother operation, reduced mechanical wear, and increased throughput for your production line.
- The ATV320 comes standard with five integrated safety functions, including Safe Torque Off (STO), Safe Stop 1 (SS1), and Safely-Limited Speed (SLS). This "Safety by Design" approach eliminates the need for external safety relays and complex wiring, drastically lowering your total system cost while ensuring your machinery remains fully compliant with global EN/ISO 13849-1 safety standards.
- Featuring built-in Modbus and CANopen protocols as standard, this drive offers seamless communication with Schneider Electric's EcoStruxure architecture and third-party PLC systems. The integrated logic controller (ATV Logic) allows for basic programming of specific application functions directly within the drive, reducing the load on your main controller and simplifying complex automation sequences.
- Built to withstand industrial rigors, the ATV320D15N4B features 3C3 and 3S2 coated printed circuit boards (PCBs) according to IEC 60721-3-3. This enhanced protection against chemical corrosion and conductive dust ensures a long service life and high reliability in demanding environments like textile manufacturing, wood processing, or chemical plants.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia, United States
Depth232.0 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus serial, CANopen
Complementary Attributes
- Maximum Switching Current
- relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R2A, R2C resistive, cos phi = 1 5 A 30 V DCrelay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V ACrelay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC, relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V ACrelay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC
- Maximum Associated Fuse Rating
- 80 A
- Maximum Input Current Per Phase
- 47.3 A
- Maximum Output Voltage
- 500 V
Brake Chopper Integratedtrue
Maximum Horse Power Rating20 hp
Maximum Output Frequency0.599 kHz
Minimum Switching Currentrelay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Asynchronous Motor Control Profile
- voltage/frequency ratio, 5 points, flux vector control without sensor, standard, voltage/frequency ratio - Energy Saving, quadratic U/f, flux vector control without sensor - Energy Saving, voltage/frequency ratio, 2 points
- Linearity Error
- AI1, AI2, AI3 +/- 0.2...0.5 % of maximum value analog input, AQ1 +/- 0.3 % analog output
- Motor Slip Compensation
- automatic whatever the load, adjustable 0...300 %, not available in voltage/frequency ratio (2 or 5 points)
- Protection Type
- input phase breaks drive, overcurrent between output phases and earth drive, overheating protection drive, short-circuit between motor phases drive, thermal protection drive
- Speed Accuracy
- +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn
- Certificate Agency
- CE, ATEX, NOM, GOST, EAC, RCM, KC
- Environmental Class (During Storage)
- class 1C3 according to EN 60721-3, class 1S2 according to EN 60721-3
- Carbon Footprint Of The Distribution Phase [A4]
- 1.1354, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.2 kg CO2 eq., 0.1651
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 11 687 kg CO2 eq., 11687
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Device Type
- Variable speed drive - VSD Compacts
- Traceability
- Yes
- Average Life Duration
- 10 year(s)
- Manufacturing Carbon Footprint
- 89.485
- Installation Carbon Footprint
- 0.1651
- End Of Life Carbon Footprint
- 3.9337
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- 4 Quadrant Operation Possible
- true
- Application In Domestic And Commercial Area Permitted
- false
- Braking To Standstill
- by DC injection
- Computer Port
- true
- Emc Filter
- class C3 EMC filter integrated
- Format Of The Drive
- book
- Line Current
- 47.3 A 380 V heavy duty)33.3 A 500 V heavy duty)
- Maximum Input Current Per Phase
- 47.3 A
- Motor Power Kw
- 15.0 kW heavy duty
- Network Frequency
- 50-60 Hz
- Number Of Hw Interfaces Industrial Ethernet
- 0.0
- Number Of Hw Interfaces Parallel
- 0.0
- Number Of Hw Interfaces Serial Rs23
- 0.0
- Number Of Hw Interfaces Serial Rs485
- 1.0
- Number Of Hw Interfaces Usb
- 0.0
- Operating Element Present
- true
- Optical Interface Present
- false
- Phase
- 3 phase
- Power Loss Per Device Current Dependent
- 452.0 W
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Specific Application
- complex machines
- Range Of Product
- Altivar Machine ATV320
- Relative Symmetric Mains Voltage Tolerance
- 10 %
- Returnability
- Yes
- Software Version
- EIME v5.7.0.2
- Supporting Protocol For Bacnet
- false
- Supporting Protocol For Devicenet
- true
- Supporting Protocol For Foundation Fieldbus
- false
- Supporting Protocol For Knx
- false
- Supporting Protocol For Modbus
- true
- Supporting Protocol For Profibus
- true
- Supporting Protocol For Profinet Io
- true
- Supporting Protocol For Safetybus P
- false
- Supporting Protocol For Suconet
- false
- Switching Frequency
- 2...16 kHz adjustable4...16 kHz with derating factor
- Total Lifecycle Carbon Footprint
- 11 782 kg CO2 eq.
- Updatability
- Upgradeable through digital modules
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Application In Industrial Area Permitted
- true
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Indonesia
- Energy Model - Use [B6]
- Electricity mix; AC; < 1kV; EU-27
- Recyclability Potential In %
- 65
- Width Nominal
- 180 mm
- Emc Limit Value (Complied)
- true
- Maximum Acceleration Under Shock Load (During Storage)
- 150 m/s² at 11 ms
- Maximum Acceleration Under Vibrational Stress (During Operation)
- 10 m/s² at 13...200 Hz
- Maximum Acceleration Under Vibratory Load (During Transport)
- 10 m/s² at 13...200 Hz
- Maximum Deflection Under Vibratory Load (During Storage)
- 3.5 mm at 2...13 Hz
- Permitted Relative Humidity (During Operation)
- class 3K5 according to EN 60721-3
- Permitted Relative Humidity (During Transport)
- class 2K5 according to EN 60721-3
- Supporting Protocol For Data-highway
- false
- Supporting Protocol For Interbus-safety
- false
- With Safety Function Safe Brake Management (Sbc/Sbt)
- false
- With Safety Function Safe Operating Stop (Sos)
- false
- With Safety Function Safe Speed Monitor (Ssm)
- false
- With Safety Function Safe Torque Off (Sto)
- true
- With Safety Function Safely Limited Speed (Sls)
- true
- Carbon Footprint (Kg Co2 Eq Total Life Cycle)
- 11782
- Package Weight(Lbs)
- 8.742 kg
- Warranty (In Months)
- 18
- Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6]
- 48.749
- Air Pollution (M3) Manufacturing [A1-a3]
- 11136
- Air Pollution (M3) Installation [A5]
- 18.128
- Air Pollution (M3) End Of Life [C1-c4]
- 105.59
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
- 1166.7
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]
- 2.34
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
- 13.761
- Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]
- 89.485
- Global Warming (Kg.Equivalent.Co2) Installation [A5]
- 0.1651
- Global Warming (Kg.Equivalent.Co2) End Of Life [C1-c4]
- 3.9337
- Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 33.826
- Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 6.0928
- Materials For Recycling (Kg) Total Life Cycle
- 7.4353
- Materials For Recycling (Kg) Installation [A5]
- 1.7676
- Net Use Of Fresh Water (M3) Total Life Cycle
- 42376
- Non-hazardous Waste Disposed Of (Kg) Total Life Cycle
- 43692
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 43574
- Photochemical Ozone Formation (Kg.Equivalent.C2h4) Operational Energy Use [B6]
- 2.6787
- Radioactive Waste Disposed Of (Kg) Operational Energy Use [B6]
- 29.101
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 1518.4
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5]
- 2.5688
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]
- 15.119
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 1574.1
- Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]
- 2.5717
- Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
- 15.133
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 55.776
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 98.245
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 205180
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]
- 16.032
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 203730
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 36.481
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 29700
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 29681
- Water Eutrophication (Kg.Equivalent.P04 3-) Operational Energy Use [B6]
- 2.9434
- Water Pollution (M3) Manufacturing [A1-a3]
- 11214
- Water Pollution (M3) Installation [A5]
- 19.367
- Water Pollution (M3) End Of Life [C1-c4]
- 578.88
- Percentage Bio Based Plastic
- 15 %
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-41.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6voltage dips and interruptions immunity test conforming to IEC 61000-4-11
MarkingCE, ATEX, UL, CSA, EAC, RCM
Option Cardcommunication module, CANopen, communication module, EtherCAT, communication module, Profibus DP V1, communication module, PROFINET, communication module, Ethernet Powerlink, communication module, EtherNet/IP, communication module, DeviceNet
Refresh Timelogic input DI1...DI4)8 ms, relay output R1A, R1B, R1C)2 ms, relay output R2A, R2C)2 ms
Motor Power Kw 10 N Motor Power Kw15.0 kW
Environmental Class (During Operation)class 3C3 according to IEC 60721-3-3, class 3S2 according to IEC 60721-3-3
Environmental Class (During Transport)class 2C3 according to EN 60721-3, class 2S1 according to EN 60721-3
Carbon Footprint Of The End-of-life Phase [C1 To C4]3.9337, 4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]89 kg CO2 eq., 89.485
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Service Catalog ItemFinished good
Distribution Carbon Footprint1.1354
Use Carbon Footprint11687
Average Percentage Of Asi Certified Metals100 %
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1709006EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1923
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsYES_SSI2Yes
Tier1
Function OptionStandard
Market SegmentationIndustrial
1 Phase Low Current Possiblefalse
Apparent Power28.8 kVA 500 V heavy duty)
Base Load Current At High Overload4 A
Capacity Of Dc Link1660 µF
Design Of Frequency ChangerU converter
Encoder ProtocolRS 422
Housing Materialplastic
Maximum Associated Fuse Rating80 A
Method Of Accessslave CANopen
Mounting Modewall mount
Nominal Switching Frequency4 kHz
Number Of Hw Interfaces Other1.0
Number Of Hw Interfaces Profinet0.0
Number Of Hw Interfaces Serial Rs420.0
Number Of Hw Interfaces Serial Tty0.0
Number Of Output Phases3
Operating Positionvertical +/- 10 degree
Overvoltage CategoryIII
Power Dissipation In Wfan 452.0 W 380 V 4 kHz
Power Loss Static Current Independent452.0 W
Product Or Component Typevariable speed drive
Prospective Line Isc22 kA
Regulation Loopadjustable PID regulator
Relative Symmetric Network Frequency Tolerance5 %
Sampling Duration2 ms AI1, AI2, AI3) - analog input2 ms AQ1) - analog output
Supporting Protocol For Asifalse
Supporting Protocol For Cantrue
Supporting Protocol For Devicenet Safetyfalse
Supporting Protocol For Interbusfalse
Supporting Protocol For Lonfalse
Supporting Protocol For Other Bus Systemstrue
Supporting Protocol For Profinet Cbafalse
Supporting Protocol For Profisafefalse
Supporting Protocol For Sercosfalse
Sustainable PackagingNo
Synchronous Motor Control Profilevector control without sensor
Transient Overtorque170-200 % of nominal motor torque
Volume Of Cooling Air156.0 m3/h
With Safety Function Safe Programmable Logicfalse
Pep CodeENVPEP1709006EN
Pep Verification Date2018-01-01
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTo adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine's operating point during 10 years and a 80% use rate, in accordance with the relevant standards.
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh23853.48
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Height Nominal404.0 mm
[Us] Rated Supply Voltage380...500 V380...500 V - 15...10 %
Maximum Acceleration Under Shock Impact (During Operation)150 m/s² at 11 ms
Maximum Acceleration Under Shock Load (During Transport)150 m/s² at 11 ms
Maximum Acceleration Under Vibratory Load (During Storage)10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz
Maximum Deflection Under Vibratory Load (During Transport)3.5 mm at 2...13 Hz
Permitted Relative Humidity (During Storage)class 1K5 according to EN 60721-3
Supporting Protocol For As-interface Safety At Workfalse
Supporting Protocol For Ethernet/Iptrue
Supporting Protocol For Tcp/Iptrue
With Safety Function Safe Direction (Sdi)false
With Safety Function Safe Position (Sp)false
With Safety Function Safe Stop 1 (Ss1)true
With Safety Function Safely Limited Position (Slp)false
With Sft Fct Safe Stop 2 (Ss2)false
Nbr. Of Units In Pkg.1
Take-backNo
Acidification Of Soil And Water (Kg.Equivalent.So2) Total Life Cycle49.175
Air Pollution (M3) Total Life Cycle514310
Air Pollution (M3) Distribution [A4]48.299
Air Pollution (M3) Operational Energy Use [B6]503000
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle133850
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]15.951
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]132660
Global Warming (Kg.Equivalent.Co2) Total Life Cycle11782
Global Warming (Kg.Equivalent.Co2) Distribution [A4]1.1354
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]11687
Hazardous Waste Disposed Of (Kg) Total Life Cycle54.058
Hazardous Waste Disposed Of (Kg) Installation [A5]1.7946
Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]12.345
Materials For Recycling (Kg) Manufacturing [A1-a3]0.8955
Materials For Recycling (Kg) End Of Life [C1-c4]4.7722
Net Use Of Fresh Water (M3) Operational Energy Use [B6]42375
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]117.94
Photochemical Ozone Formation (Kg.Equivalent.C2h4) Total Life Cycle2.7099
Radioactive Waste Disposed Of (Kg) Total Life Cycle29.157
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle205280
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Distribution [A4]16.032
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]203730
Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle235020
Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]16.054
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]233410
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle29737
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]29681
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]98.245
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]1420.1
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]2.5688
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]15.119
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]36.481
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]19.295
Water Eutrophication (Kg.Equivalent.P04 3-) Total Life Cycle3.0805
Water Pollution (M3) Total Life Cycle494250
Water Pollution (M3) Distribution [A4]186.71
Water Pollution (M3) Operational Energy Use [B6]482250
Customs Code8504404000
Average Percentage Of Bio-based Plastic Content15 %
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-50 °C without derating, -10-50 °C without derating, -10-60 °C, -10-60 °C, -10-50 °C without derating, -10-50 °C without derating50-60 °C with derating factor
- Ambient Air Transport Temperature
- -25-70 °C, -25-70 °C
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1709006EN
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- NEMA 1
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1709006EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint11782
Environmental DisclosureENVPEP1709006EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2018-01-01
Type Of Verification For The PepIndependent external review
General Attributes
- Phase
- 3 phase
- Range Of Product
- Altivar Machine ATV320
Product Or Component Typevariable speed drive
ETIM
- ETIM 8
- EC001857
ETIM 9EC001857
Output Attributes
- Discrete Output Type
- open collector DQ+ 0-1 kHz 30 V DC 100 mA, open collector DQ- 0-1 kHz 30 V DC 100 mA
- Analogue Output Number
- 1
- Discrete Output Number
- 3
- Maximum Output Voltage
- 500 V
- Nominal Output Power
- 15.0 kW
Relay Output Typeconfigurable relay logic R1A 1 NO 100000 cyclesconfigurable relay logic R1B 1 NC 100000 cycles, configurable relay logic R1C, configurable relay logic R2A 1 NO 100000 cycles, configurable relay logic R2C
Analogue Output Typesoftware-configurable current AQ1 0...20 mA 800 Ohm 10 bitssoftware-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
Maximum Output Frequency0.599 kHz
Nominal Output Current33.0 A
Surge Protection And Filtering Attributes
- Emc Filter
- class C3 EMC filter integrated
Input Attributes
- Analogue Input Type
- AI1 voltage 0...10 V DC 30 kOhm 10 bits, AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bitsAI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
- Discrete Input Type
- STO safe torque off, 24 V DC1.5 kOhm, DI1...DI6 logic inputs, 24 V DC 30 V), DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
- Discrete Input Number
- 7
Discrete Input Logicpositive logic (source), negative logic (sink)
Analogue Input Number3
Number Of Input Phases3
Loading video…
Accessories
Loading carousel layout...
Loading carousel layout...
Similar Products
Loading carousel layout...
Loading carousel layout...
CAD
$2858.57
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
CAD$2858.57/ EA
Loading add to cart quantity...
