Schneider Electric ATV320U40N4C Altivar Machine Variable Speed Drive 4kW 380-500V 3-Phase Compact
- MPN: ATV320U40N4C
- PPN: SCH-ATV320U40N4C
CAD
$1211.60
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

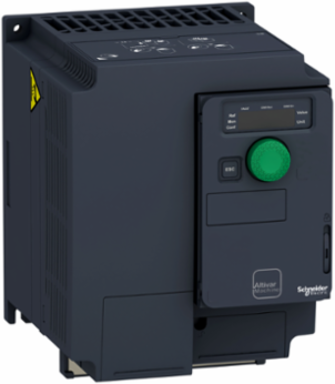

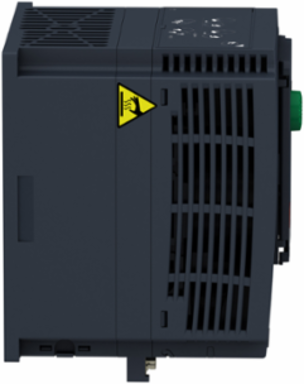

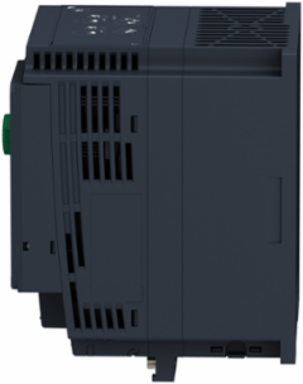

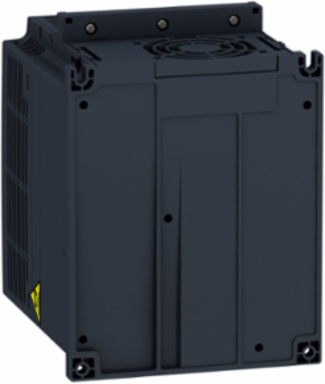

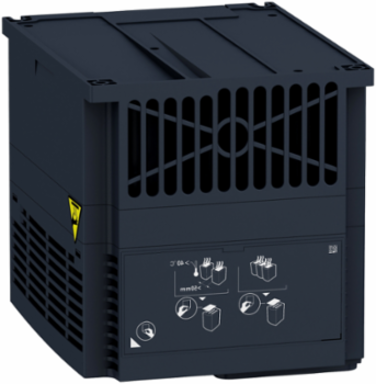

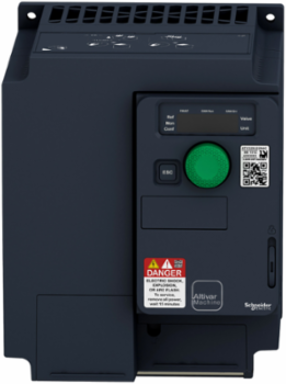

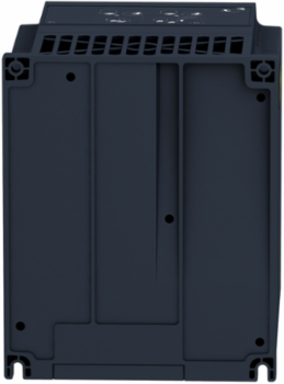

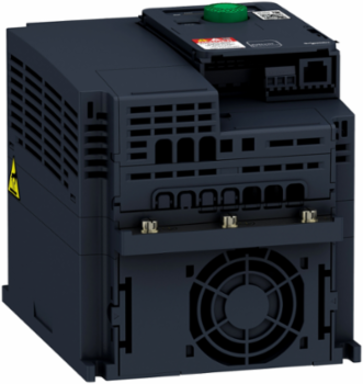

Altivar Machine Variable Speed Drive 4kW 380-500V 3-Phase Compact
Features
- Engineered with a slim "Book" profile, this 4.0 kW (5.5 HP) variable speed drive is specifically designed for side-by-side mounting to save critical rail space. This high-density footprint allows industrial panel builders to reduce the overall size of electrical enclosures while maintaining optimal airflow, significantly lowering material costs for complex machine builds.
- The ATV320 comes standard with five embedded safety functions, including Safe Torque Off (STO), Safe Stop 1 (SS1), and Safely Limited Speed (SLS). By integrating these professional-grade safety protocols directly into the drive's logic, you eliminate the need for expensive external safety relays and complex wiring, streamlining your machine's compliance with global ISO 13849-1 standards.
- This versatile Altivar Machine drive features high-performance open-loop vector control, ensuring precise speed and torque regulation for both permanent magnet and induction motors. Whether you are managing high-torque conveyor startups or precision packaging machinery, the ATV320 provides the dynamic response needed to improve machine throughput and reduce mechanical wear.
- Out of the box, the ATV320U40N4C supports Modbus RTU and CANopen protocols, with optional modules available for EtherNet/IP, Profinet, and EtherCAT. This seamless integration into industrial IoT (IIoT) ecosystems allows for real-time data monitoring and remote diagnostics, empowering maintenance teams to predict failures before they occur and drastically reducing unplanned downtime.
- Designed for durability, the drive features 3C3 and 3S2 coated printed circuit boards (PCBs) to resist corrosion and chemical stress in demanding industrial settings. This enhanced protection ensures long-term reliability in environments with high humidity or ambient dust, protecting your capital investment and ensuring consistent 400/480V performance in heavy-duty applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Indonesia, Latvia, Sweden, Singapore, United States

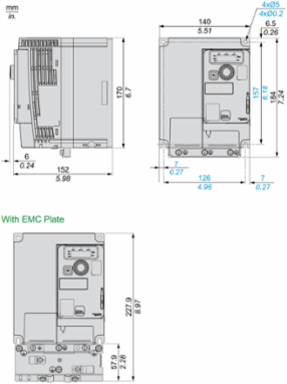

Depth158.0 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus serial, CANopen
Complementary Attributes
- Maximum Switching Current
- relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R2A, R2C resistive, cos phi = 1 5 A 30 V DCrelay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V ACrelay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC, relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V ACrelay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC
- Maximum Associated Fuse Rating
- 25.0 A
- Maximum Input Current Per Phase
- 13.7 A
- Maximum Output Voltage
- 500 V
Brake Chopper Integratedtrue
Maximum Horse Power Rating5 hp
Maximum Output Frequency0.599 kHz
Minimum Switching Currentrelay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Asynchronous Motor Control Profile
- voltage/frequency ratio, 5 points, flux vector control without sensor, standard, voltage/frequency ratio - Energy Saving, quadratic U/f, flux vector control without sensor - Energy Saving, voltage/frequency ratio, 2 points
- Linearity Error
- AI1, AI2, AI3 +/- 0.2...0.5 % of maximum value analog input, AQ1 +/- 0.3 % analog output
- Motor Slip Compensation
- automatic whatever the load, adjustable 0...300 %, not available in voltage/frequency ratio (2 or 5 points)
- Protection Type
- input phase breaks drive, overcurrent between output phases and earth drive, overheating protection drive, short-circuit between motor phases drive, thermal protection drive
- Speed Accuracy
- +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn
- Certificate Agency
- CE, ATEX, NOM, GOST, EAC, RCM, KC
- Environmental Class (During Storage)
- class 1C3 according to EN 60721-3, class 1S2 according to EN 60721-3
- Carbon Footprint Of The Distribution Phase [A4]
- 0.5113537825251914, 0.5 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.5 kg CO2 eq., 0.4535141311111357
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 2 420 kg CO2 eq., 2419.952194694455
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Device Type
- Variable speed drive - VSD Compacts
- Traceability
- Yes
- Average Life Duration
- 10 year(s)
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- 4 Quadrant Operation Possible
- true
- Application In Domestic And Commercial Area Permitted
- false
- Braking To Standstill
- by DC injection
- Computer Port
- true
- Emc Filter
- Class C2 EMC filter integrated
- Format Of The Drive
- compact
- Line Current
- 13.7 A 380 V heavy duty)10.6 A 500 V heavy duty)
- Maximum Input Current Per Phase
- 13.7 A
- Motor Power Kw
- 4.0 kW heavy duty
- Network Frequency
- 50-60 Hz
- Number Of Hw Interfaces Industrial Ethernet
- 0.0
- Number Of Hw Interfaces Parallel
- 0.0
- Number Of Hw Interfaces Serial Rs23
- 0.0
- Number Of Hw Interfaces Serial Rs485
- 1.0
- Number Of Hw Interfaces Usb
- 0.0
- Operating Element Present
- true
- Optical Interface Present
- false
- Phase
- 3 phase
- Power Loss Per Device Current Dependent
- 111 W
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Specific Application
- complex machines
- Range Of Product
- Altivar Machine ATV320
- Relative Symmetric Mains Voltage Tolerance
- 10 %
- Returnability
- Yes
- Software Version
- v6.1
- Supporting Protocol For Bacnet
- false
- Supporting Protocol For Devicenet
- true
- Supporting Protocol For Foundation Fieldbus
- false
- Supporting Protocol For Knx
- false
- Supporting Protocol For Modbus
- true
- Supporting Protocol For Profibus
- true
- Supporting Protocol For Profinet Io
- true
- Supporting Protocol For Safetybus P
- false
- Supporting Protocol For Suconet
- false
- Switching Frequency
- 2...16 kHz adjustable4...16 kHz with derating factor
- Total Lifecycle Carbon Footprint
- 2 476 kg CO2 eq.
- Updatability
- Upgradeable through digital modules
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Application In Industrial Area Permitted
- true
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine's operating point for 4 kW for heavy duty electric motors for fluid management and industrial applications in IP20/UL type 1 conditions, at 380V to 500V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 80% uptime in use phase at 75% loading rate and 20% uptime in stand by phase.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 5904.24
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Height Nominal
- 184.0 mm
- [Us] Rated Supply Voltage
- 380...500 V380...500 V - 15...10 %
- Maximum Acceleration Under Shock Impact (During Operation)
- 150 m/s² at 11 ms
- Maximum Acceleration Under Shock Load (During Transport)
- 150 m/s² at 11 ms
- Maximum Acceleration Under Vibratory Load (During Storage)
- 10 m/s² at 13...200 Hz
- Maximum Deflection Under Vibratory Load (During Operation)
- 1.5 mm at 2...13 Hz
- Maximum Deflection Under Vibratory Load (During Transport)
- 3.5 mm at 2...13 Hz
- Permitted Relative Humidity (During Storage)
- class 1K5 according to EN 60721-3
- Supporting Protocol For As-interface Safety At Work
- false
- Supporting Protocol For Ethernet/Ip
- true
- Supporting Protocol For Tcp/Ip
- true
- With Safety Function Safe Direction (Sdi)
- false
- With Safety Function Safe Position (Sp)
- false
- With Safety Function Safe Stop 1 (Ss1)
- true
- With Safety Function Safely Limited Position (Slp)
- false
- With Sft Fct Safe Stop 2 (Ss2)
- false
- Package Weight(Lbs)
- 2.769 kg
- Warranty (In Months)
- 18
- Percentage Bio Based Plastic
- 18 %
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-41.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6voltage dips and interruptions immunity test conforming to IEC 61000-4-11
MarkingCE, ATEX, UL, CSA, EAC, RCM
Option Cardcommunication module, CANopen, communication module, EtherCAT, communication module, Profibus DP V1, communication module, PROFINET, communication module, Ethernet Powerlink, communication module, EtherNet/IP, communication module, DeviceNet
Refresh Timelogic input DI1...DI4)8 ms, relay output R1A, R1B, R1C)2 ms, relay output R2A, R2C)2 ms
Motor Power Kw 10 N Motor Power Kw4.0 kW
Environmental Class (During Operation)class 3C3 according to IEC 60721-3-3, class 3S2 according to IEC 60721-3-3
Environmental Class (During Transport)class 2C3 according to EN 60721-3, class 2S1 according to EN 60721-3
Carbon Footprint Of The End-of-life Phase [C1 To C4]4.677962242358708, 5 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]51 kg CO2 eq., 50.89051692169745
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Average Percentage Of Asi Certified Metals99 %
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1512005EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1650
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsYES_SSI2Yes
Tier1
Function OptionStandard
Market SegmentationIndustrial
1 Phase Low Current Possiblefalse
Apparent Power9.2 kVA 500 V heavy duty)
Base Load Current At High Overload9.5 A
Capacity Of Dc Link550 µF
Design Of Frequency ChangerU converter
Encoder ProtocolRS 422
Housing Materialplastic
Maximum Associated Fuse Rating25.0 A
Method Of Accessslave CANopen
Mounting Modewall mount
Nominal Switching Frequency4 kHz
Number Of Hw Interfaces Other1.0
Number Of Hw Interfaces Profinet0.0
Number Of Hw Interfaces Serial Rs420.0
Number Of Hw Interfaces Serial Tty0.0
Number Of Output Phases3
Operating Positionvertical +/- 10 degree
Overvoltage CategoryIII
Power Dissipation In Wfan 111 W 380 V 4 kHz
Power Loss Static Current Independent111 W
Product Or Component Typevariable speed drive
Prospective Line Isc5 kA
Regulation Loopadjustable PID regulator
Relative Symmetric Network Frequency Tolerance5 %
Sampling Duration2 ms AI1, AI2, AI3) - analog input2 ms AQ1) - analog output
Supporting Protocol For Asifalse
Supporting Protocol For Cantrue
Supporting Protocol For Devicenet Safetyfalse
Supporting Protocol For Interbusfalse
Supporting Protocol For Lonfalse
Supporting Protocol For Other Bus Systemstrue
Supporting Protocol For Profinet Cbafalse
Supporting Protocol For Profisafefalse
Supporting Protocol For Sercosfalse
Sustainable PackagingYes
Synchronous Motor Control Profilevector control without sensor
Transient Overtorque170-200 % of nominal motor torque
Volume Of Cooling Air37.7 m3/h
With Safety Function Safe Programmable Logicfalse
Pep CodeENVPEP1512005EN
Pep Verification Date2024-07-01
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Indonesia, ID
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %58
Width Nominal140 mm
Emc Limit Value (Complied)true
Maximum Acceleration Under Shock Load (During Storage)150 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s² at 13...200 Hz
Maximum Acceleration Under Vibratory Load (During Transport)10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load (During Storage)3.5 mm at 2...13 Hz
Permitted Relative Humidity (During Operation)class 3K5 according to EN 60721-3
Permitted Relative Humidity (During Transport)class 2K5 according to EN 60721-3
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Interbus-safetyfalse
With Safety Function Safe Brake Management (Sbc/Sbt)false
With Safety Function Safe Operating Stop (Sos)false
With Safety Function Safe Speed Monitor (Ssm)false
With Safety Function Safe Torque Off (Sto)true
With Safety Function Safely Limited Speed (Sls)true
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8504404000
Average Percentage Of Bio-based Plastic Content18 %
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-50 °C without derating, -10-50 °C without derating, -10-60 °C, -10-60 °C, -10-50 °C without derating, -10-50 °C without derating50-60 °C with derating factor
- Ambient Air Transport Temperature
- -25-70 °C, -25-70 °C
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1512005EN
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- NEMA 1
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1512005EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint2476.4855417721474
Environmental DisclosureENVPEP1512005EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-07-01
Psr VersionPSR-0005-ed3-EN-2023 06 06
General Attributes
- Phase
- 3 phase
- Range Of Product
- Altivar Machine ATV320
Product Or Component Typevariable speed drive
ETIM
- ETIM 8
- EC001857
ETIM 9EC001857
Output Attributes
- Discrete Output Type
- open collector DQ+ 0-1 kHz 30 V DC 100 mA, open collector DQ- 0-1 kHz 30 V DC 100 mA
- Analogue Output Number
- 1
- Discrete Output Number
- 3
- Maximum Output Voltage
- 500 V
- Nominal Output Power
- 4.0 kW
Relay Output Typeconfigurable relay logic R1A 1 NO 100000 cyclesconfigurable relay logic R1B 1 NC 100000 cycles, configurable relay logic R1C, configurable relay logic R2A 1 NO 100000 cycles, configurable relay logic R2C
Analogue Output Typesoftware-configurable current AQ1 0...20 mA 800 Ohm 10 bitssoftware-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
Maximum Output Frequency0.599 kHz
Nominal Output Current9.5 A
Surge Protection And Filtering Attributes
- Emc Filter
- Class C2 EMC filter integrated
Input Attributes
- Analogue Input Type
- AI1 voltage 0...10 V DC 30 kOhm 10 bits, AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bitsAI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
- Discrete Input Type
- STO safe torque off, 24 V DC1.5 kOhm, DI1...DI6 logic inputs, 24 V DC 30 V), DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
- Discrete Input Number
- 7
Discrete Input Logicpositive logic (source), negative logic (sink)
Analogue Input Number3
Number Of Input Phases3
Loading video…
Accessories
Loading carousel layout...
Loading carousel layout...
Similar Products
Loading carousel layout...
Loading carousel layout...
CAD
$1211.60
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
CAD$1211.60/ EA
Loading add to cart quantity...
