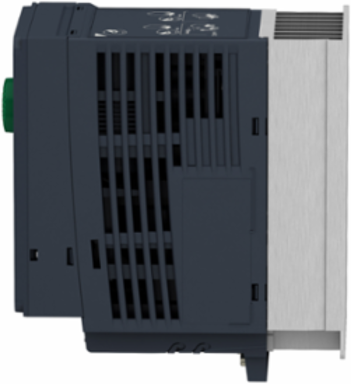

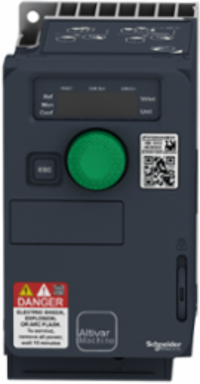

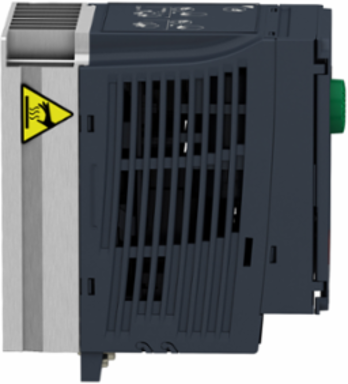

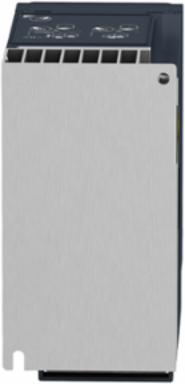

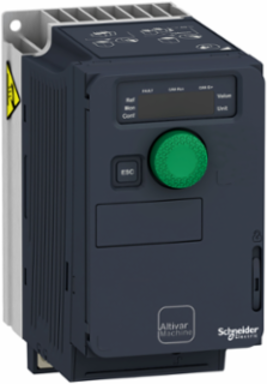

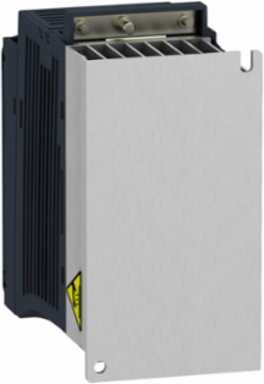

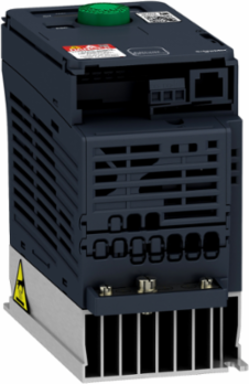

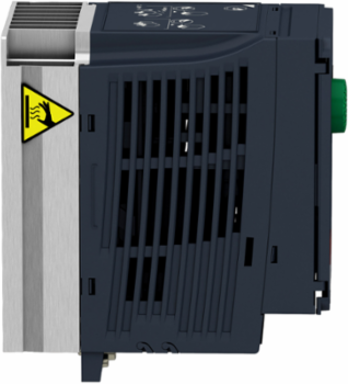

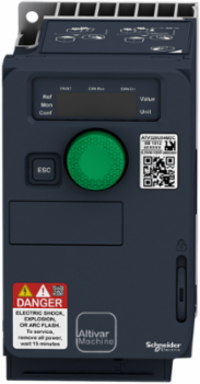

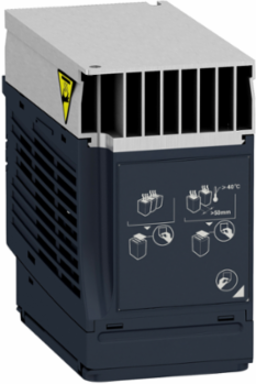

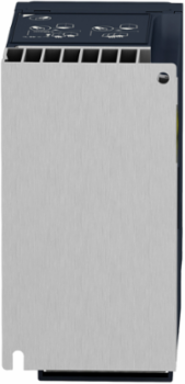

Schneider Electric ATV320U07M3C Altivar Machine Variable Speed Drive 0.75kW 200-240V 3-Phase Compact

  • MPN: ATV320U07M3C
  • PPN: SCH-ATV320U07M3C
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $369.94

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

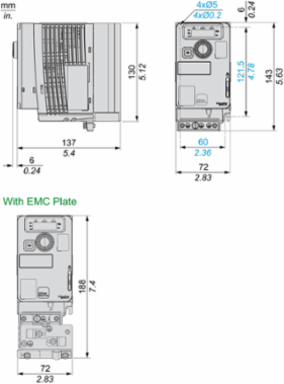

    Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 0.75kW / 1hp and a rated voltage from 200V to 240V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. It weighs 1.0kg and its dimensions are 72mm wide, 143mm high, 138mm deep. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to IEC, UL, TUV, KC and other international standards. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. The product is delivered in one package. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.

    Features

    • Engineered to accept standard 200V to 240V AC 3-phase power, this variable speed drive delivers highly reliable performance for motor control setups across North America. It eliminates the need for expensive step-up or step-down transformers, providing seamless voltage integration directly into your existing electrical distribution panels.
    • Delivering up to 1 horsepower (0.75 kW) of precise power under heavy-duty conditions, this Altivar Machine VFD is optimized for high-torque industrial demands. With a transient current capability of up to 150% for 60 seconds, it provides the extra torque needed to get loaded conveyors, mixers, and pumps moving smoothly without triggering nuisance overcurrent faults.
    • Featuring a specialized "Compact" form factor, this drive maximizes power density while minimizing your overall control panel footprint. Its slim layout permits side-by-side mounting without clearance gaps, saving valuable DIN rail or backplate real estate and reducing enclosure fabrication costs for machine builders and automation engineers.
    • Outfitted with built-in Safe Torque Off (STO) functionality alongside four additional safety functions, this VFD provides SIL3/PLe-certified protection out of the box. This allows for immediate integration into your machine's emergency stop circuits, safely removing motor torque without requiring costly, bulky external safety contactors.

    Documentation & Downloads

    Specifications

    Key Specifications

    Variant
    standard version
    Product Or Component Type
    variable speed drive
    Communication Port Protocol
    Modbus serial || CANopen
    Product Specific Application
    complex machines
    Range Of Product
    Altivar Machine ATV320
    [Us] Rated Supply Voltage
    200...240 V - 15...10 %
    Emc Filter
    without EMC filter
    Format Of The Drivecompact
    Ip Degree Of ProtectionIP20
    Nominal Output Current4.8 A
    Option Cardcommunication module, CANopen || communication module, EtherCAT || communication module, Profibus DP V1 || communication module, PROFINET || communication module, Ethernet Powerlink || communication module, EtherNet/IP || communication module, DeviceNet
    Motor Power Kw0.75 kW heavy duty
    Mounting Modewall mount

    Complementary

    Prospective Line Isc
    5 kA
    Power Dissipation In W
    self-cooled 42.0 W 200 V 4 kHz
    Analogue Output Type
    software-configurable current AQ1 0...20 mA 800 Ohm 10 bits || software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
    Asynchronous Motor Control Profile
    voltage/frequency ratio, 5 points || flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/f || flux vector control without sensor - Energy Saving || voltage/frequency ratio, 2 points
    4 Quadrant Operation Possible
    true
    Apparent Power
    2.2 kVA 240 V heavy duty)
    With Safety Function Safe Direction (Sdi)
    false
    Switching Frequency
    2...16 kHz adjustable || 4...16 kHz with derating factor
    Motor Slip Compensation
    automatic whatever the load || adjustable 0...300 % || not available in voltage/frequency ratio (2 or 5 points)
    With Safety Function Safe Position (Sp)
    false
    With Safety Function Safely Limited Position (Slp)
    false
    Discrete Input Number
    7
    With Safety Function Safe Stop 1 (Ss1)
    true
    Depth
    138.0 mm
    Maximum Output Frequency
    0.599 kHz
    Height
    143.0 mm
    Maximum Output Voltage
    240 V
    With Safety Function Safe Speed Monitor (Ssm)
    false
    With Safety Function Safe Torque Off (Sto)
    true
    Minimum Switching Current
    relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
    With Safety Function Safe Programmable Logic
    false
    Nominal Switching Frequency
    4 kHz
    Discrete Input Type
    STO safe torque off, 24 V DC1.5 kOhm || DI1...DI6 logic inputs, 24 V DC 30 V) || DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
    With Safety Function Safely Limited Speed (Sls)
    true
    Network Frequency50...60 Hz
    Line Current6.3 A 200 V heavy duty) || 5.3 A 240 V heavy duty)
    Discrete Output Typeopen collector DQ+ 0-1 kHz 30 V DC 100 mA || open collector DQ- 0-1 kHz 30 V DC 100 mA
    Maximum Switching Currentrelay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC || relay output R2A, R2C resistive, cos phi = 1 5 A 30 V DC
    Relative Symmetric Network Frequency Tolerance5 %
    Net Weight1 kg
    Relay Output Typeconfigurable relay logic R1A 1 NO 100000 cycles || configurable relay logic R1B 1 NC 100000 cycles || configurable relay logic R1C || configurable relay logic R2A 1 NO 100000 cycles || configurable relay logic R2C
    Analogue Input Number3
    Discrete Output Number3
    Method Of Accessslave CANopen
    With Safety Function Safe Operating Stop (Sos)false
    With Sft Fct Safe Stop 2 (Ss2)false
    Width72.0 mm
    Analogue Input TypeAI1 voltage 0...10 V DC 30 kOhm 10 bits || AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits || AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
    With Safety Function Safe Brake Management (Sbc/Sbt)false
    Acceleration And Deceleration Rampslinear || U || S || CUS || ramp switching || acceleration/deceleration ramp adaptation || acceleration/deceleration automatic stop with DC injection
    Base Load Current At High Overload2.3 A
    Transient Overtorque170-200 % of nominal motor torque
    Analogue Output Number1
    Discrete Input Logicpositive logic (source) || negative logic (sink)
    Brake Chopper Integratedtrue
    Braking To Standstillby DC injection
    Protection Typeinput phase breaks drive || overcurrent between output phases and earth drive || overheating protection drive || short-circuit between motor phases drive || thermal protection drive
    Synchronous Motor Control Profilevector control without sensor

    Offer Sustainability

    Mercury Free
    Yes
    Weee
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Upgradeability
    Upgraded components available
    Environmental Disclosure
    ENVPEP1601008EN
    Circularity Profile
    ENVEOLI1601008EN
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    China Rohs RegulationX
    Rohs Exemption InformationYes
    Sustainable Offer StatusGreen Premium product
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

    Environment

    Product Certifications
    CE || ATEX || NOM || GOST || EAC || RCM || KC
    Standards
    IEC 61800-5-1
    Permitted Relative Humidity (During Operation)
    class 3K5 according to EN 60721-3
    Environmental Class (During Operation)
    class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
    Pollution Degree
    2
    Ambient Air Temperature For Operation
    -10-50 °C without derating || 50-60 °C with derating factor
    Maximum Acceleration Under Vibrational Stress (During Operation)
    10 m/s² at 13...200 Hz
    Operating Position
    vertical +/- 10 degree
    Speed Accuracy
    +/- 10 % of nominal slip 0.2 Tn to Tn
    Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz
    Regulation Loopadjustable PID regulator
    Overvoltage CategoryIII
    Maximum Acceleration Under Shock Impact (During Operation)150 m/s² at 11 ms
    Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency immunity test level 3 IEC 61000-4-6 || voltage dips and interruptions immunity test IEC 61000-4-11
    MarkingCE || ATEX || UL || CSA || EAC || RCM
    Ambient Air Temperature For Storage-25-70 °C
    Ambient Air Transport Temperature-25-70 °C
