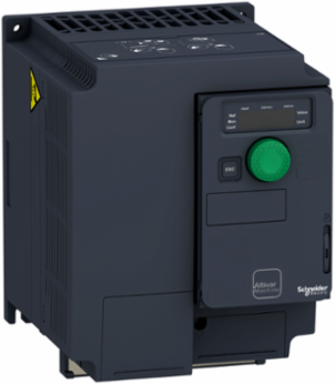

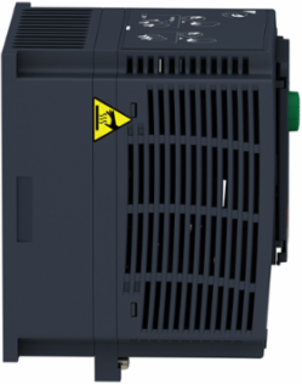

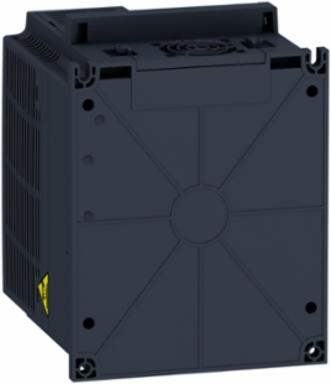

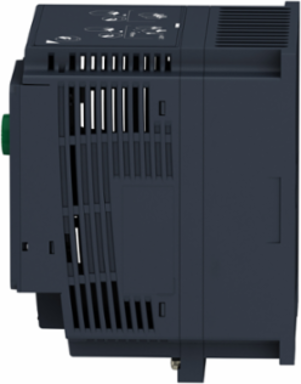

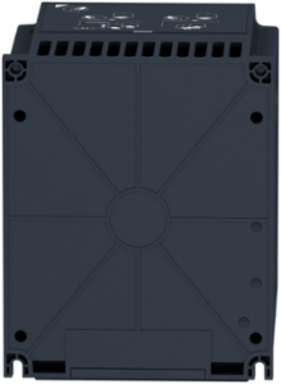

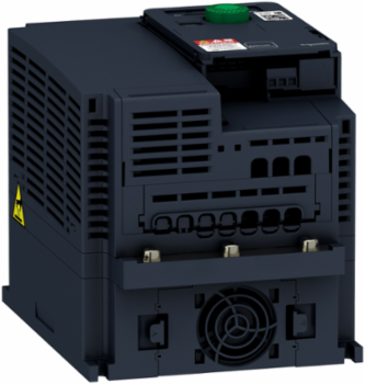

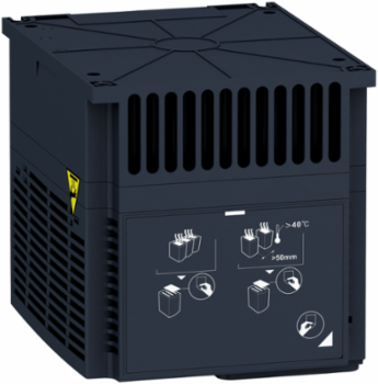

Variable Speed Drive 4kW 200-240V Compact, 2.2kg, IEC Compliant

Variable Speed Drive 4kW 200-240V Compact, 2.2kg, IEC Compliant - https://images.province-electric.com/SCH-ATV320U40M3C/variable-speed-drive-altivar-medium-alt-mxqg.webp

Documentation & Downloads

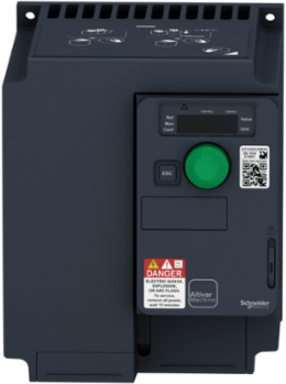

Schneider Electric ATV320U40M3C Variable Speed Drive 4kW 200-240V Compact, 2.2kg, IEC Compliant

MPN: ATV320U40M3C
PPN: SCH-ATV320U40M3C

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

CAD

$993.45

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Variable Speed Drive 4kW 200-240V Compact, 2.2kg, IEC Compliant

Features

Engineered for a 200-240V three-phase input, this Altivar 320 variable frequency drive (VFD) delivers high-performance motor control for 5 HP asynchronous and synchronous motors. Operating with advanced sensorless flux vector control, it provides the precise torque and speed regulation needed to optimize manufacturing conveyors, packaging equipment, and hoisting applications while severely reducing mechanical wear and tear.
Designed with a highly space-efficient block footprint, this compact AC drive is easily integrated into crowded, low-depth industrial enclosures and motor control centers. This streamlined physical profile allows OEM machine builders and panel fabricators to significantly reduce overall panel sizes and material costs without sacrificing advanced automation capabilities.
Out of the box, this inverter features comprehensive embedded safety protocols, including Safe Torque Off (STO) SIL 3, Safe Stop 1 (SS1), and Safely-Limited Speed (SLS). By completely eliminating the need for expensive external safety relays, it dramatically simplifies complex panel wiring, reduces hardware costs, and ensures your custom machinery easily passes stringent IEC 61508 and ISO 13849-1 PL e safety certifications.
Standardizing your facility's automation architecture is seamless thanks to built-in Modbus serial and RJ45 CANopen communication ports. This plug-and-play network capability allows industrial engineers to establish real-time diagnostic monitoring and precise variable speed control directly from their central programmable logic controller, minimizing integration downtime and accelerating machine commissioning.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin: Indonesia, Latvia, Singapore, United States

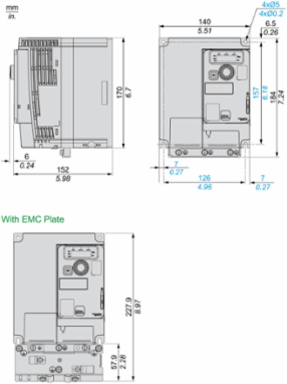

Depth158.0 mm

Communications & Management Attributes

Communication Port Protocol: Modbus serial, CANopen

Complementary Attributes

Maximum Switching Current: relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R2A, R2C resistive, cos phi = 1 5 A 30 V DCrelay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V ACrelay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC, relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V ACrelay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC

Maximum Associated Fuse Rating: 40 A

Maximum Input Current Per Phase: 23.8 A

Maximum Output Voltage: 240 V

Brake Chopper Integratedtrue

Maximum Horse Power Rating5 hp

Maximum Output Frequency0.599 kHz

Minimum Switching Currentrelay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC

Important Information Attributes

Persona Type Ids: EU, OM, OM8

Asynchronous Motor Control Profile: voltage/frequency ratio, 5 points, flux vector control without sensor, standard, voltage/frequency ratio - Energy Saving, quadratic U/f, flux vector control without sensor - Energy Saving, voltage/frequency ratio, 2 points

Linearity Error: AI1, AI2, AI3 +/- 0.2...0.5 % of maximum value analog input, AQ1 +/- 0.3 % analog output

Motor Slip Compensation: automatic whatever the load, adjustable 0...300 %, not available in voltage/frequency ratio (2 or 5 points)

Protection Type: input phase breaks drive, overcurrent between output phases and earth drive, overheating protection drive, short-circuit between motor phases drive, thermal protection drive

Speed Accuracy: +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn

Environmental Class (During Operation): class 3C3 according to IEC 60721-3-3, class 3S2 according to IEC 60721-3-3

Environmental Class (During Transport): class 2C3 according to EN 60721-3, class 2S1 according to EN 60721-3

Carbon Footprint Of The End-of-life Phase [C1 To C4]: 3.620662655452204, 4 kg CO2 eq.

Carbon Footprint Of The Manufacturing Phase [A1 To A3]: 46 kg CO2 eq., 45.50787951677771

Local Data Status: Publishable

Return Indicator: Y

Stock Policy: 2

Serviceability: No

Field Service Division: IDIBS

Average Percentage Of Asi Certified Metals: 99 %

Weee Scope: In

Scope Perimeter: At least in Europe

End Of Life Doc Ref: ENVEOLI2311036EN

Reach Full Compliance Status Id: CONTAINS_SVHC

Rohs Eur In Scope: No

Rohs Eur Conformity Date: 1650

China Rohs In Scope: Yes

With Recycled Cardboard: Yes

Product Contributes To Saved And Avoided Emissions: YES_SSI2Yes

Tier: 1

Function Option: Standard

Market Segmentation: Industrial

1 Phase Low Current Possible: false

Apparent Power: 8.3 kVA 240 V heavy duty)

Base Load Current At High Overload: 17.0 A

Capacity Of Dc Link: 1890 µF

Design Of Frequency Changer: U converter

Encoder Protocol: RS 422

Housing Material: plastic

Maximum Associated Fuse Rating: 40 A

Method Of Access: slave CANopen

Mounting Mode: wall mount

Network Number Of Phases: 3 phase

Number Of Hw Interfaces Industrial Ethernet: 0.0

Number Of Hw Interfaces Parallel: 0.0

Number Of Hw Interfaces Serial Rs23: 0.0

Number Of Hw Interfaces Serial Rs485: 1.0

Number Of Hw Interfaces Usb: 0.0

Operating Element Present: true

Optical Interface Present: false

Phase: 3 phase

Power Loss Per Device Current Dependent: 140 W

Product Availability: Stock - Normally stocked in distribution facility

Product Specific Application: complex machines

Range Of Product: Altivar Machine ATV320

Relative Symmetric Mains Voltage Tolerance: 10 %

Returnability: Yes

Software Version: v6.1

Supporting Protocol For Bacnet: false

Supporting Protocol For Devicenet: true

Supporting Protocol For Foundation Fieldbus: false

Supporting Protocol For Knx: false

Supporting Protocol For Modbus: true

Supporting Protocol For Profibus: true

Supporting Protocol For Profinet Io: true

Supporting Protocol For Safetybus P: false

Supporting Protocol For Suconet: false

Switching Frequency: 2...16 kHz adjustable4...16 kHz with derating factor

Total Lifecycle Carbon Footprint: 2 944 kg CO2 eq.

Updatability: Upgradeable through digital modules

Weee Label: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Application In Industrial Area Permitted: true

Pep Code: ENVPEP2311036EN

Pep Verification Date: 2024-07-01

Psr Version: PSR-0005-ed3-EN-2023 06 06

Data Source: referent product

Functional-unit Quantity: 1

Reference Lifetime In Y: 10

Energy Model - Manufacturing [A1-a3]: Indonesia, ID

Energy Model - Use [B6]: Electricity Mix; Low voltage; 2018; Europe, EU-27

Recyclability Potential In %: 68

Width Nominal: 140 mm

Emc Limit Value (Complied): false

Maximum Acceleration Under Shock Load (During Storage): 150 m/s² at 11 ms

Maximum Acceleration Under Vibrational Stress (During Operation): 10 m/s² at 13...200 Hz

Maximum Acceleration Under Vibratory Load (During Transport): 10 m/s² at 13...200 Hz

Maximum Deflection Under Vibratory Load (During Storage): 3.5 mm at 2...13 Hz

Permitted Relative Humidity (During Operation): class 3K5 according to EN 60721-3

Permitted Relative Humidity (During Transport): class 2K5 according to EN 60721-3

Supporting Protocol For Data-highway: false

Supporting Protocol For Interbus-safety: false

With Safety Function Safe Brake Management (Sbc/Sbt): false

With Safety Function Safe Operating Stop (Sos): false

With Safety Function Safe Speed Monitor (Ssm): false

With Safety Function Safe Torque Off (Sto): true

With Safety Function Safely Limited Speed (Sls): true

Nbr. Of Units In Pkg.: 1

Take-back: No

Customs Code: 8504404000

Average Percentage Of Bio-based Plastic Content: 18 %

Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder

Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-41.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6voltage dips and interruptions immunity test conforming to IEC 61000-4-11

MarkingCE, ATEX, UL, CSA, EAC, RCM

Option Cardcommunication module, CANopen, communication module, EtherCAT, communication module, Profibus DP V1, communication module, PROFINET, communication module, Ethernet Powerlink, communication module, EtherNet/IP, communication module, DeviceNet

Refresh Timelogic input DI1...DI4)8 ms, relay output R1A, R1B, R1C)2 ms, relay output R2A, R2C)2 ms

Certificate AgencyCE, ATEX, NOM, GOST, EAC, RCM, KC

Environmental Class (During Storage)class 1C3 according to EN 60721-3, class 1S2 according to EN 60721-3

Carbon Footprint Of The Distribution Phase [A4]0.5246397987487511, 0.5 kg CO2 eq.

Carbon Footprint Of The Installation Phase [A5]0.5 kg CO2 eq., 0.5264100528360842

Carbon Footprint Of The Use Phase [B2 B3 B4 B6]2 894 kg CO2 eq., 2893.889419768147

Local Publishable Date2026-01-12

Stocking FlagN

Device TypeVariable speed drive - VSD Compacts

TraceabilityYes

Average Life Duration10 year(s)

Weee ApplicabilityFinished product

Weee Product Category5

Eoli Availability DisplayYes

Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold

Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold

Rohs Eur StatusCompliant By Exemption

Rohs Eur Full Compliance StatusCompliant By Exemption

China Rohs Label5

Without Single Use PlasticYes

Tier Id1

Function Option IdSTANDARD

Market Segmentation IdINDUSTRIAL

Product Kit IdentifierN

4 Quadrant Operation Possibletrue

Application In Domestic And Commercial Area Permittedfalse

Braking To Standstillby DC injection

Computer Porttrue

Emc Filterwithout EMC filter

Format Of The Drivecompact

Line Current23.8 A 200 V heavy duty)19.9 A 240 V heavy duty)

Maximum Input Current Per Phase23.8 A

Motor Power Kw4.0 kW heavy duty

Network Frequency50-60 Hz

Nominal Switching Frequency4 kHz

Number Of Hw Interfaces Other1.0

Number Of Hw Interfaces Profinet0.0

Number Of Hw Interfaces Serial Rs420.0

Number Of Hw Interfaces Serial Tty0.0

Number Of Output Phases3

Operating Positionvertical +/- 10 degree

Overvoltage CategoryIII

Power Dissipation In Wfan 140 W 200 V 4 kHz

Power Loss Static Current Independent140 W

Product Or Component Typevariable speed drive

Prospective Line Isc5 kA

Regulation Loopadjustable PID regulator

Relative Symmetric Network Frequency Tolerance5 %

Sampling Duration2 ms AI1, AI2, AI3) - analog input2 ms AQ1) - analog output

Supporting Protocol For Asifalse

Supporting Protocol For Cantrue

Supporting Protocol For Devicenet Safetyfalse

Supporting Protocol For Interbusfalse

Supporting Protocol For Lonfalse

Supporting Protocol For Other Bus Systemstrue

Supporting Protocol For Profinet Cbafalse

Supporting Protocol For Profisafefalse

Supporting Protocol For Sercosfalse

Sustainable PackagingYes

Synchronous Motor Control Profilevector control without sensor

Transient Overtorque170-200 % of nominal motor torque

Volume Of Cooling Air16.4 m3/h

With Safety Function Safe Programmable Logicfalse

Motor Power Kw 10 N Motor Power Kw4.0 kW

Database Version2023-02

Pcr VersionPCR-4-ed4-EN-2021 09 06

Type Of Verification For The PepIndependent external review

Functional-unit DescriptionTo adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine's operating point for 4 kW for heavy duty electric motors for fluid management and industrial applications in IP20/UL type 1 conditions, at 200V to 240V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 80% uptime in use phase at 75% loading rate and 20% uptime in stand by phase.

Functional-unit Unitunit

Energy Consumption On Product Lifetime In Kwh7060.56

Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27

Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27

Height Nominal184.0 mm

[Us] Rated Supply Voltage200...240 V200...240 V - 15...10 %

Maximum Acceleration Under Shock Impact (During Operation)150 m/s² at 11 ms

Maximum Acceleration Under Shock Load (During Transport)150 m/s² at 11 ms

Maximum Acceleration Under Vibratory Load (During Storage)10 m/s² at 13...200 Hz

Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz

Maximum Deflection Under Vibratory Load (During Transport)3.5 mm at 2...13 Hz

Permitted Relative Humidity (During Storage)class 1K5 according to EN 60721-3

Supporting Protocol For As-interface Safety At Workfalse

Supporting Protocol For Ethernet/Iptrue

Supporting Protocol For Tcp/Iptrue

With Safety Function Safe Direction (Sdi)false

With Safety Function Safe Position (Sp)false

With Safety Function Safe Stop 1 (Ss1)true

With Safety Function Safely Limited Position (Slp)false

With Sft Fct Safe Stop 2 (Ss2)false

Package Weight(Lbs)2.562 kg

Warranty (In Months)18

Percentage Bio Based Plastic18 %

Environment Attributes Main

Ambient Air Temperature For Operation: -10-50 °C without derating, -10-50 °C without derating, -10-60 °C, -10-60 °C, -10-50 °C without derating, -10-50 °C without derating50-60 °C with derating factor

Ambient Air Transport Temperature: -25-70 °C, -25-70 °C

Recycled Metal Content At Cr Level: 0 %

Mercury Free: Yes

Circularity Profile: ENVEOLI2311036EN

Eu Rohs Directive: Compliant By Exemption

Nema Degree Of Protection: NEMA 1

Packaging Without Single Use Plastic: Yes

Pep Code: ENVPEP2311036EN

Pcr Version: PCR-4-ed4-EN-2021 09 06

Type Of Verification For The Pep: Independent external review

Ambient Air Temperature For Storage-25-70 °C, -25-70 °C

Take BackNo

China Rohs RegulationX

Carbon Footprint2944.0690117919617

Environmental DisclosureENVPEP2311036EN

Ip Degree Of ProtectionIP20

Packaging Made With Recycled CardboardYes

Reach RegulationReference contains Substances of Very High Concern above the threshold

Pep Verification Date2024-07-01

Psr VersionPSR-0005-ed3-EN-2023 06 06

General Attributes

Phase: 3 phase

Range Of Product: Altivar Machine ATV320

Product Or Component Typevariable speed drive

ETIM

ETIM 8: EC001857

ETIM 9EC001857

Output Attributes

Discrete Output Type: open collector DQ+ 0-1 kHz 30 V DC 100 mA, open collector DQ- 0-1 kHz 30 V DC 100 mA

Analogue Output Number: 1

Discrete Output Number: 3

Maximum Output Voltage: 240 V

Nominal Output Power: 4.0 kW

Relay Output Typeconfigurable relay logic R1A 1 NO 100000 cyclesconfigurable relay logic R1B 1 NC 100000 cycles, configurable relay logic R1C, configurable relay logic R2A 1 NO 100000 cycles, configurable relay logic R2C

Analogue Output Typesoftware-configurable current AQ1 0...20 mA 800 Ohm 10 bitssoftware-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits

Maximum Output Frequency0.599 kHz

Nominal Output Current17.5 A

Surge Protection And Filtering Attributes

Emc Filter: without EMC filter

Input Attributes

Analogue Input Type: AI1 voltage 0...10 V DC 30 kOhm 10 bits, AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bitsAI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits

Discrete Input Type: STO safe torque off, 24 V DC1.5 kOhm, DI1...DI6 logic inputs, 24 V DC 30 V), DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
