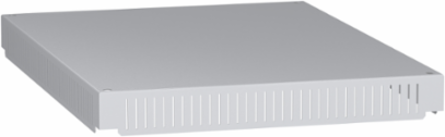

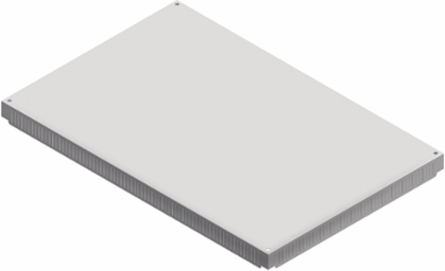

Schneider Electric NSYSVR608 Spacial SF Ventilated Roof 600x800 mm, IP30, Steel, Gray RAL 7035
- MPN: NSYSVR608
- PPN: SCH-NSYSVR608
- UNSPSC: 39121302
CAD
$94.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

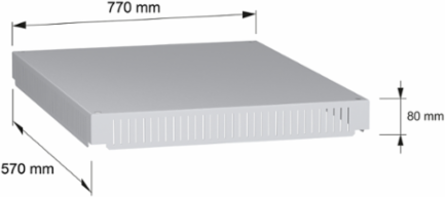

Spacial SF ventilated roof. 599 x 800 mm. Provides the enclosure with natural ventilation. Roof fixing point location with screw type M12. Plastic and Steel. IP 30, Grey RAL 7035. Roof with 4 top elevation brackets.
Features
- Roof for providing natural airing for the enclosure, with IP30 protection.
- Height: An extra 63 mm in relation to the structure.
- Material: Steel
- Finish: Structured finish, epoxy polyester powder
- Color: RAL 7035 grey
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|---|
| Width | 23.62 in |
| Height | 2.83 in |
|---|---|
| Weight | 9000 g |
Physical Attributes
| Color | Gray RAL 7035) |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Application | multi-purpose, electronic application |
| Carbon Footprint Of The Distribution Phase A4 | 1.732484566, 2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 1.995605938, 2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2026-08-19 |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1912 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Device Composition | 4 elevator1 roof |
| Fixing Mode | by elevatorsM12 - roof fixing point |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quantity Per Set | set of 1 |
| Returnability | No |
| Surface Finish | epoxy-polyester powder |
| Total Lifecycle Carbon Footprint | 64 kg CO2 eq. |
| Data Source | extrapolated product |
| Height Useful | 72 mm |
| Width Real | nominal: 600 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Enclosure Nominal Dimensions | -, - |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 21 kg CO2 eq., 21.15762844 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 39 kg CO2 eq., 39.10606619 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Material | steel |
| Product Or Component Type | ventilated roof |
| Range | PanelSeT |
| Software Version | v5.9.4 |
| Sustainable Packaging | No |
| Database Version | 2022-01 |
| Height Nominal | 72 mm |
| Width Nominal | real: 570 mm |
| Accessory / Separate Part Category | enclosure accessory |
| Customs Code | 9403999045 |
| Functional Unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 98 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 63.99178513 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-03-30 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1109023EN |
| Ip Degree Of Protection | IP30 IEC 60529 |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1109023EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | ventilated roof |
|---|
ETIM
| ETIM 8 | EC000744 |
|---|---|
| ETIM 10 | EC000744 |
| ETIM 9 | EC000744 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
