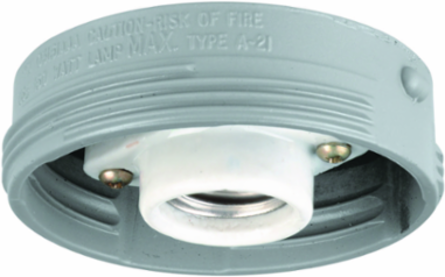

Killark VXFC-100 N34 Aluminum Incandescent Light Fixture Body 100W Max, NEMA 3,4, 1/2" Hub Size
- MPN: VXFC-100 N34
- UPC: 783936830490
- PPN: HBL-VXFC-100 N34
- UNSPSC: 39111525
CAD
$68.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
VFC Series - Aluminum 100 Watt Incandescent Light Fixture Body - NEMA 3,4 - Class I Division 2 - 150W Max
Features
- Electrostatically applied epoxy/polyester finish
- Modular design
- Hubs are threaded for attachment to conduit
- Set screws in pendant fixture
- Copper-free aluminum (less than .004%)
- Fixture bodies contain lamp receptacle and are threaded to accept globes, guards, and reflectors. These fixture bodies are designed for metallic boxes and mount directly to V Series splice boxes. They may also be mounted to VJ Series, VB Series, or other
Specifications
Key Specifications
- Finish
- Powder Epoxy Paint
- Number Of Lamps
- 0
- ARRA Compliant
- Contact Manufacturer
- Color
- Gray
- Height
- 3 in
- Length
- 1 in
- Voltage Rating
- 120-277 VAC
- Application
- For use with V Series lighting.
- Frequency Rating
- 50/60 Hz
- Mounting Type
- Wall Bracket
- Type
- Aluminum Fixture Body
- Class Code
- D20
- Freight Class Code
- 06316009
- Image Actual Or Representative
- A
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 0.52
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936830490
- NAICS Code
- 3351222100
MountingWall Bracket
Special FeaturesFixture bodies contain lamp receptacle and are threaded to accept globes, guards, and reflectors. These fixture bodies are designed for metallic boxes and mount directly to V Series splice boxes. They may also be mounted to VJ Series, VB Series, or other
Country of OriginMexico
Dimensions1 in x 3 in x 3 in
Hub Size1/2"
Optic TypeGlass Globe - Clear
Width3 in
Finish TypePowder Epoxy Paint
Lamp TypeMedium Base
Number of Lamps0
Wattage150 W
Description - Invoice100W V-SERIES CL.I DIV2 FIX CP
Harmonization Code9405999900
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD20D225
Light SourceIncandescent
SeriesV Series
BOX SIZE(in)
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
