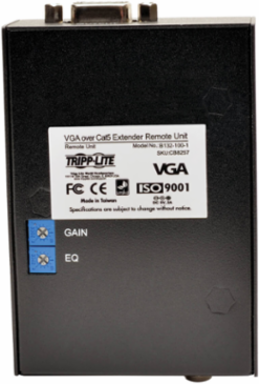

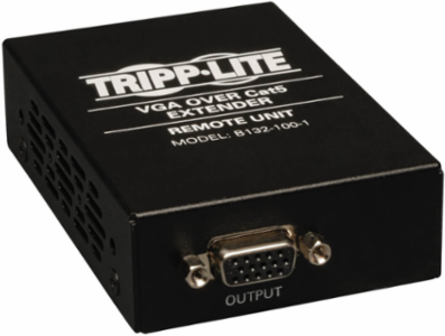

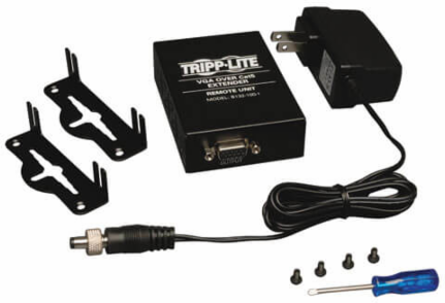

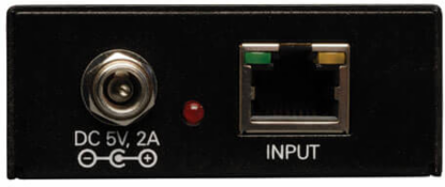

Tripp Lite B132-100-1 VGA Extender, 1000 ft Range, 1920 x 1440 Resolution, TAA Compliant
- MPN: B132-100-1
- UPC: 037332160126
- PPN: TRP-B132-100-1
CAD
$153.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
VGA Extender, 1000 ft Range, 1920 x 1440 Resolution, TAA Compliant
Features
- Works with a B132-002-2 or B132-004-2 local transmitter unit to extend a 1920 x 1440 (60Hz) video signal up to 500 ft., or a 1024 x 768 (60Hz) video signal up to 1,000 ft.
- 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution
- For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 1-year limited warranty
Documentation & Downloads
Specifications
Additional
| Video Resolution Support and Max Range | 1920 x 1440 up to 500 ft, 1024 x 768 up to 1000 ft, various other resolutions 480P/480i/800x600/1080P/1080i/1440x900/1600x1200 all up to 500-1000 ft |
|---|---|
| Output Voltage | 5V, 2A |
| Unit Dimensions | 1 x 2.5 x 3.6 in |
| Color | Black |
| Connector Side B | HD15 (Female) |
| Technology | VGA/SVGA |
| Input Voltage | 100-240V, 50/60Hz, 0.5A |
|---|---|
| Power Supply Cable Length | 5 ft |
| Unit Weight | 0.45 lbs |
| Connector Side A | RJ45 (Female) |
| Warranty | 1-year limited warranty |
