Tripp Lite B132-002A-2 2-Port VGA with Audio over Cat5/Cat6 Extender Splitter, Box-Style Transmitter with EDID, Up to 1000 ft., TAA

2-Port VGA with Audio over Cat5/Cat6 Extender Splitter, Box-Style Transmitter with EDID, Up to 1000 ft., TAA
2-Port VGA with Audio over Cat5/Cat6 Extender Splitter, Box-Style Transmitter with EDID, Up to 1000 ft., TAA
2-Port VGA with Audio over Cat5/Cat6 Extender Splitter, Box-Style Transmitter with EDID, Up to 1000 ft., TAA
  • MPN: B132-002A-2
  • UPC: 037332178411
  • PPN: TRP-B132-002A-2

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$146.90/ EA

Description

2-Port VGA with Audio over Cat5/Cat6 Extender Splitter, Box-Style Transmitter with EDID, Up to 1000 ft., TAA

Features

  • Splits a single VGA Video and Audio signal into 2
  • EDID copy feature ensures optimal display compatibility
  • Extends a 1920 x 1440 (60Hz) Video and Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video and Audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
  • For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
  • Can further expand the range and number of monitors/speakers by adding B132-110A repeaters
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
  • 1-year limited warranty

Specifications

Features & Specifications

Technology
VGA/SVGA; Stereo Audio

Connections

Ports
2

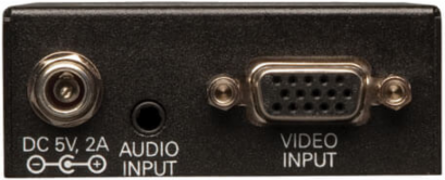

Side A - Connector 2
3.5MM (FEMALE)
Side A - Connector 1HD15 (FEMALE)
Side B - Connector 1(2) RJ45 (FEMALE)

Physical

Color
Black
Shipping Weight (lbs.)
1.10
Unit Weight (lbs.)
0.45
Shipping Dimensions (hwd / in.)2.20 x 7.20 x 6.50
Unit Dimensions (hwd / in.)1 x 2.5 x 3.7

Communications

Max 1024 x 768 Range (ft)
1000
Max 1440 x 900 Range (ft)
500
Max 1080P Range (ft)
500
Max 480i Range (ft)
1000
Max 800 x 600 Range (ft)
1000
Max 1920 x 1200 Range (ft)
500
Max 480P Range (ft)1000
Max 1080i Range (ft)500
Max 1920 x 1440 Range (ft)500
Max 640 x 480 Range (ft)1000
Max 1600 x 1200 Range (ft)500
Max 720P Range (ft)500

Overview

UPC Code
037332178411
AC AdapterInput: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.

Warranty

Product Warranty Period (Worldwide)
1-year limited warranty

Downloads
