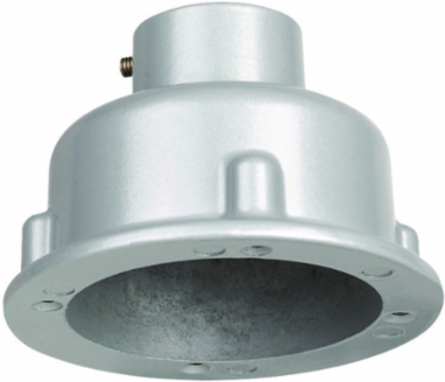

Killark VGA-2 Pendant Mount Splice Box, Hub Size 3/4 Inch, Copper-Free Aluminum
- MPN: VGA-2
- UPC: 783936750026
- PPN: HBL-VGA-2
- UNSPSC: 39111525
CAD
$40.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
VGA Series - VSL Splice Box - Pendant Mount - Hub Size 3/4 In
Features
- Electrostatically applied epoxy/polyester finish
- Modular design
- Hubs are threaded for attachment to conduit
- Set screws in pendant fixture
- Copper-free aluminum (less than .004%)
- Pendant mount splice box for V Series.
Documentation & Downloads
Specifications
Key Specifications
- Finish
- Powder Epoxy Paint
- Number Of Lamps
- 0
- ARRA Compliant
- Contact Manufacturer
- Color
- Gray
- Height
- 5.5 in
- Length
- 6.88 in
- Application
- For use with V Series lighting.
- Mounting Type
- Pendant
- Type
- Aluminum Pendant Mount Splice Box
- Description - Invoice
- SPLICE BOX PENDANT MOUNT 3/4"
- Harmonization Code
- 7616999999
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D20D225
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- NAICS Code
- 3351222100
MountingPendant
Special FeaturesPendant mount splice box for V Series.
Country of OriginMexico
Dimensions6.88 in x 3.75 in x 5.5 in
Hub Size3/4"
Width3.75 in
Finish TypePowder Epoxy Paint
Number of Lamps0
Class CodeD20
Freight Class Code06316009
Image Actual Or RepresentativeA
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging0.4
SeriesV Series
BOX SIZE4.125x7.750x5.875 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936750026
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
