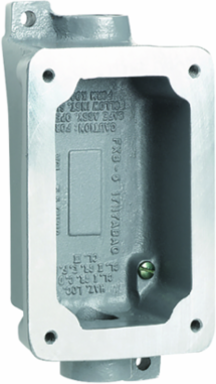

Killark FXB-5 Aluminum Factory Sealed Feed-Thru Splice Box 3/4 Inch Hub, 9.375 x 4.125 x 4.125 Inch
Killark FXB-5 Aluminum Factory Sealed Feed-Thru Splice Box 3/4 Inch Hub, 9.375 x 4.125 x 4.125 Inch
- MPN: FXB-5
- UPC: 783936200347
- PPN: HBL-FXB-5
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$177.00/ EA
Description
FXB Series Aluminum Feed-Thru Single-Gang Splice Box - Factory Sealed- Hub Size ¾"
Features
- The FXB Series of splice boxes are designed for use with the FXCS and FXS Series of cover sub-assemblies.
- Killark SEAL-X Series FXB BACK BOXES provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark Factory Sealed FXCS and FXS Cover Assemblies. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified. The FXB is offered in single and double gang configurations from ½” to 1” dead end and feed through.
Specifications
Specifications
- Mounting
- Wall
- Special Features
- Killark SEAL-X Series FXB BACK BOXES provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark Factory Sealed FXCS and FXS Cover Assemblies. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified. The FXB is offered in single and double gang configurations from ½” to 1” dead end and feed through.
- Color
- Gray
- Depth
- 1-3/4
- Each - Width
- 4.125 in
- Height
- 4.125 in
- Weight
- 1.64 lb.
- Application
- The FXB Series of splice boxes are designed for use with the FXCS and FXS Series of cover sub-assemblies
- Nema Rating
- 3
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11714, LR11712
- UL File Number
- E53360
- Series
- FXB Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936200347
Size9.375 in x 4.125 in x 4.125 in
ARRA CompliantContact Manufacturer
Country of OriginCN
Dimensions9.375 in x 4.125 in x 4.125 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Length9.375 in
Width4.125 in
Mounting TypeWall
TypeAluminum Factory Sealed Single Gang Feed-Thru Splice Box
Description - InvoiceSPLICE BOX 3/4" 1GANG FEEDTHRU
Harmonization Code7616999999
Lead Time15 wk
Order Multiple1 EA
Sub Class CodeD25D250
Gross Weight with Packaging1.64
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
