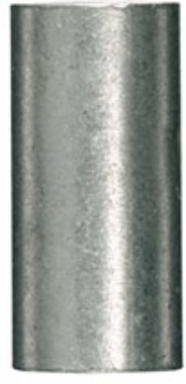

Weidmuller 0296800000 VH 5/4/2.8 AKZ4
- MPN: 0296800000
- PPN: WDM-0296800000
CAD
$0.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SAK Series, Connecting sleeve, for cross-connection link, Number of poles:
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 4 mm |
|---|---|
| Height | 4 mm |
| Depth | 5 mm |
| Net weight | 0.26 g |
| Width (inches) | 0.157 inch |
|---|---|
| Height (inches) | 0.157 inch |
| Depth (inches) | 0.197 inch |
| Diameter | 4 mm |
Dimensions
| Diameter | 4 mm |
|---|
Additional Technical Data
| Explosion-tested version | No |
|---|---|
| Type of fixing | when screwed in |
| Installation advice | Direct mounting |
|---|
Material Data
| Material | Copper |
|---|
| Colour | grey |
|---|
Classifications
| ETIM 6.0 | EC002848 |
|---|---|
| eClass 9.0 | 27-14-11-92 |
| eClass 10.0 | 27-14-11-92 |
| ETIM 7.0 | EC002848 |
|---|---|
| eClass 9.1 | 27-14-11-92 |
| UNSPSC | 30-21-18-11 |
System Specifications
| Version | for cross-connection link |
|---|
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Storage temperature, min. | 10 °C |
|---|
