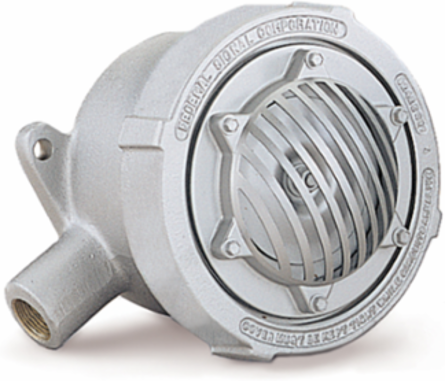

Federal Signal 41X-024-1 Vibrating Horn, Explosion-Proof, UL and cUL CID1, 24VDC, Corrosion-Resistant Housing

MPN: 41X-024-1
UPC: 782979227007
PPN: FDS-41X-024-1
UNSPSC: 46171602

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2948.67/ EA

Qty:

Loading add to cart quantity...

Description

Models 31X and 41X explosion-proof vibrating horns are constructed for safe use in hazardous environments. They are enclosed in heavy-duty copper-free cast aluminum housings tapped for 3/4-inch conduit.The 31X and 41X are corrosion-resistant vibrating horns with stainless steel diaphragms. Model 41X is available in 24VDC. The Model 31X is available in 120VAC and 240VAC and features an internal volume control. A five minute duty cycle applies to both models.

Features

31X Available in 120VAC and 240VAC
41X Available in 24VDC
Corrosion-resistant cast aluminum housings
Produces 100 dBa @ 10' (110 dBa @ 1m)
3/4" pipe or surface mount
CSA Certified
UL and cUL for Class I, Division 1, Groups C and D; Class II, Division 1, Groups E, F, and G; Class III

Specifications

Country of Origin: United States

Body Color: Gray

dBa 1 Meter: 110

Availability: Contact Us for Availability

Operating Temp.: -13˚ to +104˚F (-25˚ to +40˚C)

Audible Signals Voltage: 24VDC

Height: 7.63 in, 19.3802 cm

Weight7.5 lbs

Certification ListingCSA, UL, cUL

dBa 10 Ft100

Mount Type3/4-Inch Pipe, Surface

Operating Voltage24 Vdc

Depth7.63 in, 19.3802 cm

Width6.5 in, 16.51 cm
