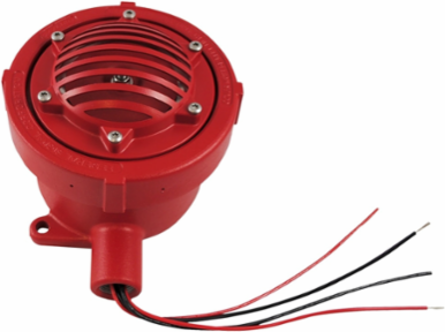

Federal Signal FHEX-24SMR Vibrating Horn, Explosion-Proof, Supervised, UL and cUL CID1, 24VDC, Red
- MPN: FHEX-24SMR
- UPC: 782979213789
- PPN: FDS-FHEX-24SMR
- UNSPSC: 46171602
CAD
$2548.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Federal Signal's Model FHEX Explosion-Proof Vibrating Horn produces a loud and distinctive tone by the electromechanical vibration of a diaphragm. This horn is designed for use in alarm notification systems and is compatible with fire alarm and suppression supervised control panels and power boosters.The Model FHEX operates on 24VDC and produces a very loud 99 dBa @ 10' (109 dBa @ 1m).Model FHEX is housed in a heavy duty, copper-free cast aluminum housing tapped for 3/4" conduit. The housing is sealed with red powder coat paint and utilizes a stainless steel diaphragm for long life.
Features
- 24VDC
- Produces 99 dBa @ 10' (109 dBa @ 1m)
- Supervisory diode and four wires
- Cast aluminum housings
- Duty cycle 5 minutes on – 5 minutes off
- CSFM Approved
- UL and cUL for Class I, Division 1, Groups C and D; Class II, Division 1, Groups E, F, and G; Class III
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Body Color
- Red
- dBa 1 Meter
- 109
- Availability
- Contact Us for Availability
- Operating Temp.
- -31˚ to +150˚F (-35˚ to +66˚C)
- Audible Signals Voltage
- 24VDC
- Height
- 7.63 in, 19.3802 cm
Weight9 lbs
Certification ListingCSFM, UL, cUL
dBa 10 Ft99
Mount TypePipe
Operating Voltage24 Vdc
Depth7.63 in, 19.3802 cm
Width6.5 in, 16.51 cm
