Federal Signal 350WBX-240 Vibratone Horn with Weatherproof Back Box, Hazardous Location, UL and cUL CID2, 240VAC, Gray
Federal Signal 350WBX-240 Vibratone Horn with Weatherproof Back Box, Hazardous Location, UL and cUL CID2, 240VAC, Gray
- MPN: 350WBX-240
- UPC: 782979202462
- PPN: FDS-350WBX-240
- UNSPSC: 46171602
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$864.97/ EA
Description

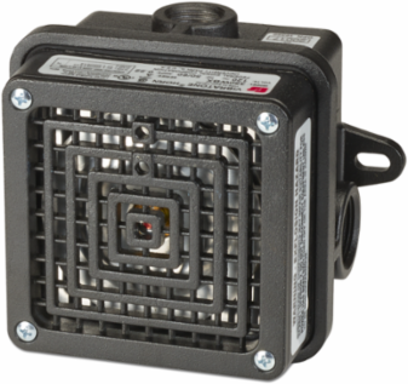

Model 350WBX Vibratone® horn produces sound by electro-mechanical vibration of a diaphragm. The horn mechanism with diaphragm is attached to the grille. The water- and dust-tight back box is ideal for indoor or outdoor use.Model 350WBX features a die-cast zinc housing with a corrosion resistant polyurethane finish. The rugged outer grille resists vandalism without reducing sound output. The 350WBX is fused and utilizes a terminal block connection.Vibratone horns are excellent for general alarm, start/dismissal, coded paging and process control signaling in areas where their sound output exceeds ambient noise levels. Compact size and a variety of installation options make them ideal for institutional use.
Features
- Available in 120VAC and 240VAC
- Coded or sustained tones
- Produces 100 dBa @ 10' (110 dBa @ 1m)
- Fuse terminal block provided for field wiring
- Surface, flush or semi-flush mounting
- Indoor/Outdoor use
- Type 4X, IP65 enclosure
- IP69K compliant
- CSA Certified
- UL and cUL Listed for Class I, Division 2, Groups A, B, C, and D; Class II, Division 2, Groups F and G; Class III
Specifications
Specifications
- Country of Origin
- United States
- Body Color
- Black
- dBa 1 Meter
- 110
- Availability
- Contact Us for Availability
- Operating Temp.
- -65˚ to +104˚F (-54˚ to +40˚C)
- Audible Signals Voltage
- 240VAC
- Height
- 4.53 in, 11.5062 cm
Weight2.7 lbs
Certification ListingCSA, UL, cUL
dBa 10 Ft100
Operating Current Amps0.09
Operating Voltage240 Vac
Depth4.53 in, 11.5062 cm
Width4.53 in, 11.5062 cm
