Killark VM4LB6IE230 LED Fixture 6000 Lumen, 2000 Lumen Battery Backup, 40W, 120-277VAC
- MPN: VM4LB6IE230
- UPC: 783936151731
- PPN: HBL-VM4LB6IE230
CAD
$4227.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
VM4LB 6000 Lumen Range Standard with 2000 Lumen Battery Backup 120-277VAC 50/60 Hz
Features
- Standard supplemental 6KV surge protection
- Optional supplementary surge protection available 20KA/10KV (120-277 VAC), 10KA/10KV (347-480 VAC)
- Traditional Industrial Appearance, Suitability, and Photometric Performance
- Wide variety of optics including globes, globes with reflectors, all-glass refractors, spin-top refractors and flat lens
- Swing-Barrel Nut patented tank mounting system
- Optional Mounting arrangements including Pendant, Wall, Ceiling, Stanchion and others
- VM4L LED Housings can be retrofitted to existing VM splice boxes to upgrade from HID sources
- Crisp White Light for Excellent Color Rendering – Chromaticity 5000 K (CCT range) approx. 70 CRI
- Energy Savings – less than 130 Watts of Power
- Long Life – 50,000 - 55,000 maintenance free hours to 70% initial lumens
- Ambient suitability -40°C to 65°C on select models
- Instant On – Including after power interruption
- World Voltage 120 – 277VAC 50/60Hz
- Solderless LED Board Connections – Vibration Resistant
- Dual Driver Option (DDR) – For additional energy savings, half of the fixture can be turned off
- LM80-08 Measurement of lumen maintenance for LED light sources
- LM79-08 Certified “Absolute” Photometry, including Chromaticity Color for Solid State Lighting
- L70 Values - Industry Nomenclature for Hours of use to 70% of Initial Lumens (TM-21+ Cal.)

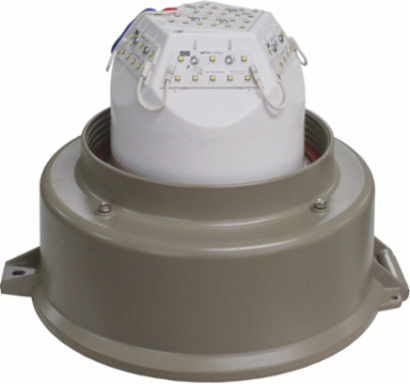

- Two LED internal heat sink styles » Bulb VM4LB » Concave VM4LC
- The VM4L Series is a low bay and high bay fixture using energy efficient LED's. The design of the VM4LB with the bulb style heat sink creates a light distribution similar to a HID lamp. The design of the VM4LB with the bulb style heat sink creates a light distribution that gives a uniform light distribution that is similar to HID. This fixture is made with a cast copper-free aluminum housing and mount that is suitable for harsh and hazardous environments. With the design of this fixtures internal heat sink keeps a clean look on the outside of the fixture creating a LED fixture that does not contain external heat fins.
Specifications
Key Specifications
- ARRA Compliant
- Contact Manufacturer
- Lumens
- 6278
- Voltage Rating
- 120-277 VAC
- Finish Type
- Powder Epoxy Paint
- Class Code
- D20
- Freight Class Code
- 06068001
- Image Actual Or Representative
- A
- Sub Class Code
- D20D202
- Lumens Per Watt
- 157
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936151731
Country of OriginUnited States
Operating Temperature Range Celcius-20°C to +50°C
Color Temperature5000 K
Wattage40 W
Description - InvoiceVM4LB EMER 6K LMN 120-277V BULB HTSNK
Harmonization Code9405429100
MSDS FlagNo
Lumen Range5,001-10,000 lm
Light SourceLED
SeriesVM4L Series
BOX SIZE(in)
NAICS Code3351222100
