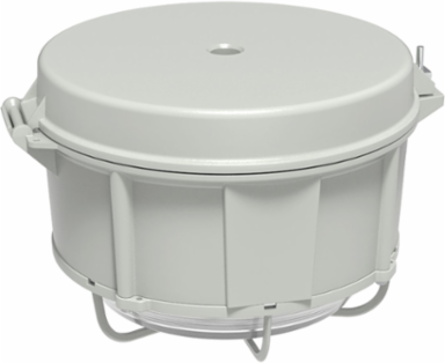

Killark VML2X1230G VML-X Series LED Area Light 100 Watt, 120-277VAC, 12000 Lumen, 5000K
- MPN: VML2X1230G
- UPC: 783936187969
- PPN: HBL-VML2X1230G
- UNSPSC: 39111816
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The VML-X Series is an Area Light fixture using energy efficient LED's. The redesigned CertiLite VML-X uses optics on the LED's to direct the light to where it is needed. This fixture is made with a cast copper-free aluminum housing and mount that is suitable for harsh and hazardous environments. The design of this fixture internal heat sink keeps a clean look on the outside of the fixture creating a LED fixture that does not contain external heat fins. Easily Retro fit any old HID or LED fixture to the new VML-X for a cleaner more efficient light.
Features
- Energy Efficient and Long Life LED's
- Walkway Optic patterns
- Easy Retrofit to Competitors
- Lighter Weight
- LED Color of 5000K with 80 CRI
- Wildlife Friendly Color options
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Div2, Groups A,B,C,D;Class I, Zone 2, Groups IIC, IIB, IIA;Class II, Div. 1&2, Groups E,F,G;IECEx QPS 15.0006;Ex ec IIC T4/T3 Gc;Ex tb IIIC T4/T3 Db;QPS22ATEX7000
- Optic Type
- Glass Globe
- Frequency Rating
- 50/60 Hz
- Color Temperature
- 5000 K
- Wattage
- 100 W
- Freight Class Code
- 08816008
- Image Actual Or Representative
- A
- Lumen Range
- 12,000 - 18,000 lm
- Series
- VML-X Series
- BOX SIZE
- (in)
Current / Amperage Rating0.83-0.36 A
Lumens12000
ApplicationClass I Division 2 Hazardous LocationsClass II Hazardous Dust Zone 2 Hazardous LocationsOff and On Shore Oil and GasWet and Marine LocationsFood and BeverageHeavy Industrial
Voltage Rating120-277 VAC
Finish TypePowder Epoxy Paint
Class CodeD20
Harmonization Code9405426000
Sub Class CodeD20D202
Light SourceLED
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936187969
