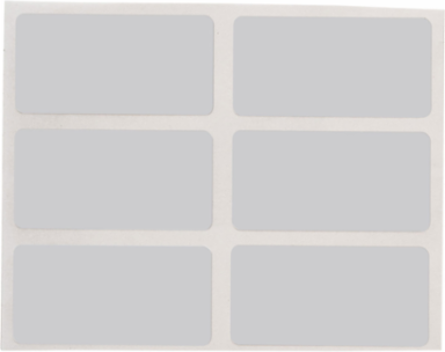

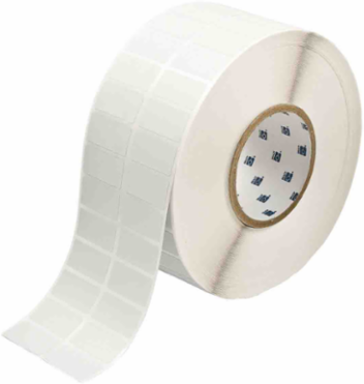

Brady THT-6-7576-10 VOID Indicating Metallized Polyester labels, 0.75" H x 1.5" W, 10000 Labels
- MPN: THT-6-7576-10
- UPC: 662820208174
- PPN: BRD-THT-6-7576-10
- UNSPSC: 55121612
CAD
$1519.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

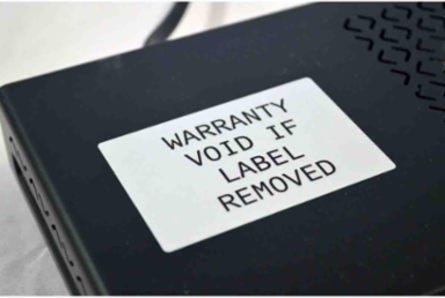

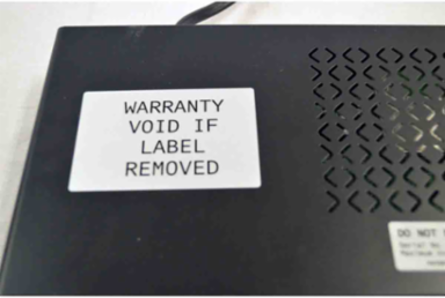

The B-7576 material is designed to leave a "VOID" footprint when the label is removed, the footprint also appears on the surface of the label so it cannot be reused.
Features
- Ideal for use in rating and serial plates that require high performance and evidence of label removal
- Use care when handling to maintain the VOID pattern
- For use in thermal transfer printers
Documentation & Downloads
Specifications
Key Specifications
- Applications
- General Identification; Security Identification
- Bulk Part
- Not a Bulk Part
- Compatible Surface Types
- High Surface Energy
- Enables Industry Compliance
- ASTM D 1000; ASTM G 155; UL Recognized
- For Use with Printer
- BBP®81 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- General Identification; Inspection Repair; Rating & Name Plates
- Printer Compatibility (Print)
- BBP12; i7100; i5100
- Quantity per Row
- 2
- Ribbon Series
- R6000HF
- Suggested Ribbon Series
- R4400; R6000 Halogen Free
- Total Qty per Pack
- 10000 Label(s) / Roll
- Trade Name
- Defender
- Adhesive Type
- Tamper-evident Acrylic
- Label Properties
- Heat Resistant Labels; Metallic Labels; Permanent Adhesive Labels; Tamper Evident Labels
- Material Properties
- Metallized; Tamper-evident
- SAP B-Number
- B-7576
- Dimensions
- 0.75 in H x 1.5 in W
- Dimensions 2
- 0.75 in H x 1.5 in W
- Height (mm/cm/m)
- 19.05 mm
- Label/Tape Size (in/ft/yd)
- 0.75 in H x 1.5 in W
- Maximum Service Temperature °F
- 212 °F
- Minimum Application Temperature °F
- 39 °F
- Minimum Service Temperature °F
- -94 °F
- Printable Area Height (mm/cm/m)
- 19.05 mm
- Sign Size-General
- 0.75 in x 1.5 in
- Thickness (in/ft/yd)
- 0.0028 in
- Vertical Repeat
- 0.875 in
- Web Width (mm/cm/m)
- 85.09 mm
- Width (mm/cm/m)
- 38.1 mm
Brand NameBrady®
ColorSilver
DiagramIcon 26 (hexagon)
FinishMatte
Label/Media FormatRoll
Print TechnologyThermal Transfer
Printer CompatibilityBBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
Quantity per Roll10000
Recommended RibbonIP-R6002; R6002
ShapeRectangle
Tamper Indication TypeTamper-evident
Total Quantity10000
Adhesive (Y/N)Yes
Brady Material NumberB-7576
MaterialTamper-evident Metallized Polyester
Resistance PropertiesChemical-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
Core Diameter (mm/cm/m)76.20 mm
Dimensions (Metric)38.10 mm W x 19.05 mm H
Height (in/ft/yd)0.75 in
Horizontal Repeat (mm)41.90 mm
Maximum Service Temperature °C100 °C
Minimum Application Temperature °C4 °C
Minimum Service Temperature °C-70 °C
Printable Area Dimensions (Metric)19.05 mm H x 38.1 mm W
Printable Area Width (mm/cm/m)38.1 mm
Size - Width (mm)38.10 mm
Thickness (mm/cm/m)0.071 mm
Vertical Repeat (mm)22.20 mm
Width (in/ft/yd)1.5 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
