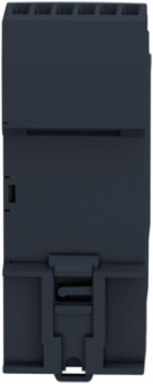

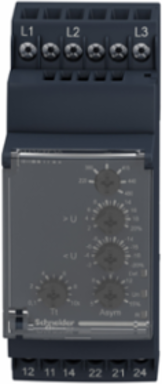

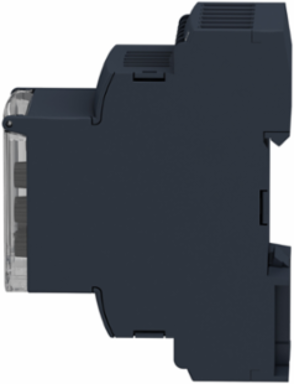

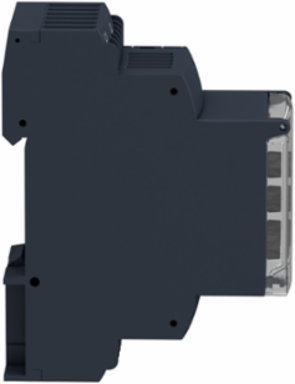

Schneider Electric RM35UB3N30 Voltage Control Relay, 5A, 2 C/O, 120-277V AC, 35mm Width
- MPN: RM35UB3N30
- PPN: SCH-RM35UB3N30
CAD
$288.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony RM35-UB allows monitoring of voltage control in 3-phase networks. This modular multi function 3-phase voltage control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Minimum Switching Current
- 10 mA 5 V DC
- Range Of Product
- Harmony Control Relays
- Power Consumption In Va
- 0-3.9 VA AC
- Product Or Component Type
- voltage control relay
- Relay Name
- RM35UB3
- Relay Type
- voltage control relay
- Time Delay Type
- adjustable 0.3...30 s, 0 + 10 % Tt- time delay upon fault
Maximum Switching Current5 A AC/DC
Measurement Range120...277 V voltage AC 50/60 Hz
Switching Capacity In Va1250 VA
Utilisation CategoryAC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || DC-14 IEC 60947-5-1
Contacts Type And Composition2 C/O
Product Specific Applicationfor 3-phase supply
Relay Monitored Parametersabsence of neutral || overvoltage and undervoltage between phases || overvoltage and undervoltage between neutral
Complementary
- Safety Reliability Data
- B10d = 470000 || MTTFd = 502.2 years
- Hysteresis
- 2-2 %
- Measurement Error
- < 1 % over the whole range with voltage variation || 0.05 %/°C with temperature variation
- Operating Rate
- <= 360 operations/hour full load
- Response Time
- < 200 ms in the event of a fault)
- Net Weight
- 0.08 kg
- Control Type
- without test button
- Run-Up Delay At Power-Up
- 650 ms
- Functionality
- overvoltage and undervoltage detection
- Overvoltage Category
- III IEC 60664-1
- Supply Voltage Limits
- 114-329 V AC
- Nominal Output Current
- 5 A
- Mechanical Durability
- 30000000 cycles
- Compatibility Code
- RM3
- Control Circuit Frequency
- 50...60 Hz +/- 15 %
- Width
- 35 mm
- Electrical Durability
- 10000 cycles
Maximum Measuring Cycle150 ms measurement cycle as true rms value
Insulation Resistance> 500 MOhm 500 V DC IEC 60255-5 || > 500 MOhm 500 V DC IEC 60664-1
[Us] Rated Supply Voltageself-powered
Output Contacts1 C/O + 1 C/O, 1 per threshold
Operating Positionany position without derating
Maximum Switching Voltage250 V AC/DC
Reset Time1500 ms time delay
Connections - Terminalsscrew terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...2 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
[Ui] Rated Insulation Voltage400 V IEC 60664-1
Quality LabelsCE
Mounting Support35 mm symmetrical DIN rail IEC 60715
Local Signallingpower ON LED green) || relay ON LED yellow)
Voltage Detection Threshold114 V
Housing Materialself-extinguishing plastic
Measurement Accuracy+/- 10 % of the full scale value
Tightening Torque0.6-1 N.m IEC 60947-1
Repeat Accuracy+/- 0.5 % input and measurement circuit || +/- 1 % time delay
Environment
- Product Certifications
- UL || C-Tick || GL || CSA || GOST
- Non-Dissipating Shock Wave
- 4 kV
- Electromagnetic Compatibility
- emission standard for industrial environments conforming to IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 || immunity for industrial environments conforming to NF EN/IEC 61000-6-2
- Ambient Air Temperature For Operation
- -20-50 °C
- Ip Degree Of Protection
- IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
- Directives
- 73/23/EEC - low voltage directive || 89/336/EEC - electromagnetic compatibility
- Relative Humidity
- 95-95 % 55-55 °C IEC 60068-2-30
StandardsIEC 60255-1
Dielectric Test Voltage2 kV AC 50 Hz, 1 min
Shock Resistance5 gn IEC 60068-2-27
Vibration Resistance0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1
Pollution Degree3 IEC 60664-1
Ambient Air Temperature For Storage-40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1504008EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1504008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
