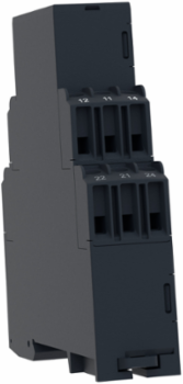

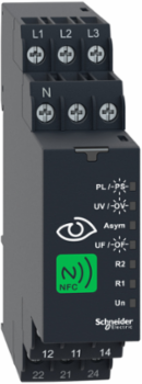

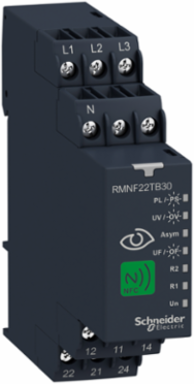

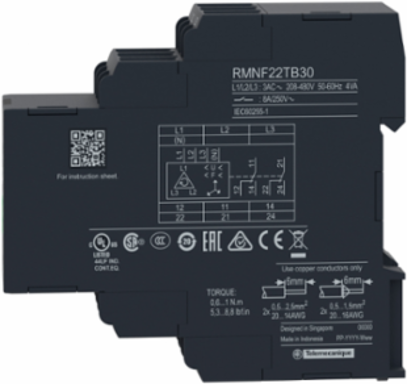

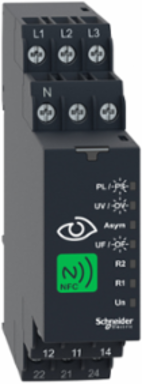

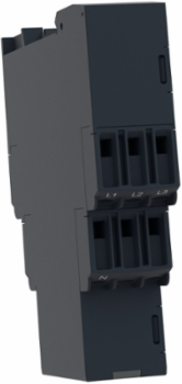

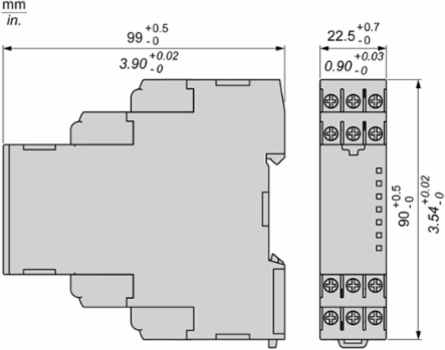

Schneider Electric RMNF22TB30 3-Phase Control Relay, 8A, 208-480V AC, IP40, NFC Enabled

MPN: RMNF22TB30
PPN: SCH-RMNF22TB30

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$167.03

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This 3-phase control relay belongs to the Schneider Electric Harmony Control relays range. This 3-phase control relay is integrated with NFC technology which brings in digital operation instead of analog operation. This is a 8A multifunction 3-phase control relay which monitors 3-phase or 3-phase with Neutral network and has an adjustable time delay of 0.1s to 60min. With Harmony NFC App, different alarms can be combined using AND, OR and NOT logic to form unique monitoring combinations for the two relay outputs which are individually configurable. NFC 3-phase control relay is a single reference supporting 7 functions namely Phase loss, Phase sequence, Asymmetry, Undervoltage, Overvoltage, Under-frequency, and Over-frequency. The 3-phase control relay is IP20 (terminals), IP40 (housing), and IP40(front panel) protected. Furthermore, the 4 digit password enhances security by preventing unauthorized change of settings. This RMNF22 dimensions are 22.5mm (width) x 90mm (height) x 99mm (depth) and weighs 0.125Kg. 0 0 It conforms to international standard EN/IEC 60255-1 and certifications like UL, CSA, CE, CCC, EAC, and RCM. 0 It is sold as a single unit. 0 Monitoring and testing are now intuitive as exact fault conditions can be identified through front LEDs and analyze data with Harmony NFC App. This saves time and boosts efficiency. 0 0 0 0 0

Documentation & Downloads

Specifications

Key Specifications

Height	3.54 in
Country of Origin	Brazil, France, Indonesia, United States

Width	0.89 in

Communications & Management Attributes

Alarm Threshold	166...576 V adjustable overvoltage and undervoltage detection (line to line);96...332 V adjustable overvoltage and undervoltage detection (line to neutral);5...150 V adjustable asymmetry;45...66 Hz adjustable overfrequency or underfrequency;

Complementary Attributes

Line Rated Current	8 A
Maximum Operating Frequency	13.56 MHz
Maximum Switching Voltage	250 V AC

Maximum Measuring Cycle	150 ms measurement cycle as true rms value
Maximum Switching Current	8 A AC
Minimum Switching Current	10 mA 12 V DC

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electromagnetic Compatibility	immunity for industrial environments conforming to IEC 61000-6-2, surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1emission standard for industrial environments conforming to IEC 61000-6-4surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5
Local Signalling	R2, amber LED blinking)timing in progress, Un, green LED steady)power ON, R1, amber LED steady)relay energisedR1, amber LED blinking)timing in progress, R2, amber LED steady)relay energised, PL, red LED steady)alarm phase failure triggeredPS, red LED blinking)alarm phase sequence failure triggeredUV, red LED steady)alarm undervoltage failure triggeredOV, red LED blinking)alarm overvoltage failure triggeredUF, red LED steady)alarm underfrequency failure triggeredOF, red LED blinking)alarm overfrequency failure triggeredASYM, red LED steady)alarm asymmentry failure triggered
Measurement Error	+/- 0.05 %/°C with temperature variation, +/- 0.05 %/°C with temperature variation, +/- 0.05 %/Hz with frequency variation, +/- 0.05 %/Hz with frequency variation+/- 0.05 %/°C with temperature variation, +/- 0.05 %/°C with temperature variation, +/- 0.05 %/Hz with frequency variation, +/- 0.05 %/Hz with frequency variation
Relay Monitored Parameters	asymmetry, phase sequence, phase failure detection, overvoltage detection, undervoltage detection, overfrequency and underfrequency, asymmetry
Response Time	<= 300 ms (in the event of a fault), <= 300 ms (in the event of a fault)<= 300 ms (in the event of a fault), <= 300 ms (in the event of a fault)
Tightening Torque	0.6-1 N.m IEC 60947-1, 5.3-8.9 lbf.in
Certificate Agency	CE, UL, CSA, CCC, EAC, RCM, UKCA
[Us] Rated Supply Voltage	208...480 V AC 50/60 Hz, non self-powered, 120...277 V AC 50/60 Hz, non self-powered
Carbon Footprint Of The Distribution Phase [A4]	0.0175464727, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.0006785287
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	55 kg CO2 eq., 54.9367466667
Local Publishable Date	2026-03-26
Stocking Flag	N
Service Catalog Item	Finished good
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Control Type	without Diagnostic button
Electrical Durability	100000 cycles
Hysteresis	3-3 % fixed at nominal voltage phase failure detection
Measurement Range	208...480 V AC
Mounting Support	35 mm symmetrical DIN rail conforming to IEC 60715
Operating Position	any position without derating
Power Consumption In Va	4-4 VA 480 V AC 60 Hz
Range Of Product	Harmony Control Relays
Relay Type	NFC control relay
Returnability	Yes
Setting Accuracy Of The Switching Threshold	+/- (1.5 % + 1 V)+/- (1.5 % + 1 V)
Software Designation	Ecostruxure Industrial Device downloadable from Google Play store or Apple Store)
Supply Frequency	50...60 Hz +/- 10 %
Sustainable Packaging	Yes
Threshold Adjustment Voltage	2...20 % of Un selected
Total Lifecycle Carbon Footprint	58 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code	ENVPEP2506028EN
Pep Verification Date	2019-05-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Energy model used: Indonesia
Energy Model - Use [B6]	Electricity mix; AC; <lt/> 1kV; EU-27
Height Nominal	90 mm
Width Nominal	22.5 mm
[Ui] Rated Insulation Voltage	400 V IEC 60664-1
Run-up Delay At Power-up	650 ms
Package Weight(Lbs)	138.000 g
Warranty (In Months)	18
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]	204.8256
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]	1097.216
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	957.696
Water Pollution (M3) Operational Energy Use [B6]	2266.88

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Insulation Resistance	> 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27> 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27
Marking	WEEE, China, ROHS
Overvoltage Category	III conforming to IEC 60664-1, III conforming to UL 508
Repeat Accuracy	+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 3 % time delay, +/- 3 % time delay+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 3 % time delay, +/- 3 % time delay
Setting Accuracy Of Time Delay	+/- 3 % 10 s...60 min, +/- 3 % 10 s...60 min, +/- 300 ms 0...10 s, +/- 300 ms 0...10 s+/- 3 % 10 s...60 min, +/- 3 % 10 s...60 min, +/- 300 ms 0...10 s, +/- 300 ms 0...10 s
Utilisation Category	AC-15 250-250 V AC 3-3 A conforming to IEC 60947-5-1DC-13 24-24 V DC 2-2 A conforming to IEC 60947-5-1, AC-1 250-250 V AC 8-8 A conforming to IEC 60947-4-1DC-1 24-24 V DC 5-5 A conforming to IEC 60947-4-1
[Uc] Control Circuit Voltage	208...480 V, 120...277 V
Connections - Terminals	screw terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable endscrew terminals, 1 x 0.5...1 x 4 mm² 20 AWG...12 AWG) solid without cable endscrew terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable end, screw connectors
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.0790258909, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	3 kg CO2 eq., 2.7954181818
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2506028EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Adjustment Of Asymmetry Threshold	2...20 % of Un selected
Dielectric Test Voltage	2.5 kV AC 50 Hz, 1 min IEC 60255-27
Housing Material	polycarbonate
Immunity To Microbreaks	10 ms less than or equal
Mechanical Durability	10000000 cycles
Nominal Power	0.0002 mW
Operating System	Androidversion >= V7.0iOSversion >= V14.5
Product Availability	Stock - Normally stocked in distribution facility
Relay Name	RMNF22
Reset Time	1500 ms at maximum rated voltage
Safety Reliability Data	MTTF = 128.5 years
Shock Resistance	15 gn 11 ms) not in operation IEC 60068-2-275 gn 11 ms) in operation IEC 60068-2-27
Software Version	EIME v5.8.1
Supply Voltage Limits	166.4-576 V AC line to line96-332.4 V AC line to neutral
Switching Capacity In Va	2000 VA
Time Delay Type	adjustable 0.1 s...60 min Tt- time delay upon fault
Vibration Resistance	0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-61 gn 58.1-150 Hz) not in operation IEC 60068-2-60.035 mm 10-60.1 Hz) in operation IEC 60068-2-60.5 gn 60.1-150 Hz) in operation IEC 60068-2-6
Measurement Range 4	208...480 V AC
Database Version	2016-11
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To switch ON/OFF electrical contacts when the abnormal operating conditions is detected during 10 years and a 100% use rate.
Functional-unit Unit	unité (unit)
Energy Consumption On Product Lifetime In Kwh	112.128
Energy Model - Installation [A5]	Electricity mix; AC; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; <lt/> 1kV; EU-27
Height Useful	90 mm
Width Real	22.5 mm
[Uimp] Rated Impulse Withstand Voltage	4 kV IEC 60664-1
Nbr. Of Units In Pkg.	1
Take-back	No
Net Use Of Fresh Water (M3) Operational Energy Use [B6]	199.1936
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	957.696
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	139.52
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	139.52
Customs Code	8536490080

Environment Attributes Main

Ambient Air Temperature For Operation	-30-60 °C, -22-140 °F-30-60 °C, -22-140 °F
Directives	2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive, 2014/53/EU - radio equipment directive
Relative Humidity	93-97 % 25-55 °C IEC 60068-2-30, 77-131 °F
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2506028EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2019-05-01
Psr Version	PSR-0005-ed2-EN-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-158 °F, -40-70 °C, -40-158 °F
Ip Degree Of Protection	IP20 IEC 60529 terminals)IP40 IEC 60529 housing), IP40 IEC 60529 front panel)
Take Back	No
China Rohs Regulation	X
Carbon Footprint	57.8294157408
Environmental Disclosure	ENVPEP2506028EN
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	NFC enabled mobile device
Pep Code	ENVPEP2506028EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
