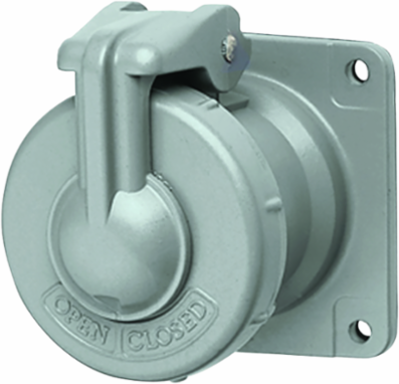

Killark VR631 VersaMate Pin & Sleeve Connector, 60 A, 4.25 Inch Width, Type 4X Rating
Killark VR631 VersaMate Pin & Sleeve Connector, 60 A, 4.25 Inch Width, Type 4X Rating
- MPN: VR631
- UPC: 783936834474
- PPN: HBL-VR631
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$602.14/ EA
Description
VersaMate® metallic pin & sleeve plugs, receptacles, and in-line connectors are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers and similar apparatus. Suitable for indoor and outodoor use, as well as applications that include wet, cold, hosedown, hazardous and corrosive environments. Configurations are also available in reverse-service and polarized orientations.
Features
- Patented “Breech-Lock” cap serves as both flip lid and screw cover.
- Patented notch in cap arm holds cap open for easy plug insertion or maintenance.
- Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened.
- Patented pin design uses slotted spring clip which avoids excessive wear while providing continuous electrical pin to sleeve contact.
- “Increased Safety” type box terminals with gripper ribs securely clamp around conductors.
- Boxes come with a green grounding screw.
Specifications
Specifications
- Application
- Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Refineries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities
- Material
- Body-Copper-free aluminum; Contacts-Brass; Spring tensioner-Patented beryllium copper; External screws-316 stainless steel
- Style
- Style I
- UPC
- 783936834474
- Length
- 4.5 in
- Amperage Rating
- 60 A
- Number Of Wires
- 3
Finish TypeBaked Powder Epoxy/Polyester Finish
SeriesVersaMate
TypePin & Sleeve
Height4.66 in
Width4.25 in
Frequency Rating50-400 Hz
Downloads
