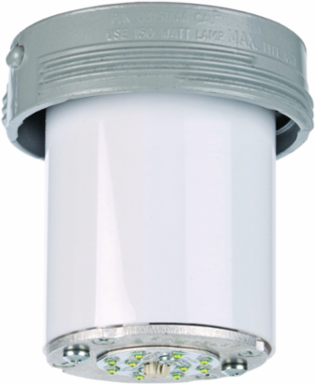

Killark VSL1630 Aluminum LED Luminaire Fixture 16 Watt, 120-277VAC, 4.38 Inch Width, 10.11 Inch Height
- MPN: VSL1630
- UPC: 783936090795
- PPN: HBL-VSL1630
- UNSPSC: 39111525
CAD
$696.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
VSL Series - Aluminum 16 Watt Low Wattage Led Luminaire Fixture (Drivers And LED Included) - 120-277VAC At 50/60Hz
Features
- Integral driver – maintains fixture’s compact profile to fit in existing spaces
- Ambient suitability -40°C to 55°C
- World Voltage 120 - 277VAC 50/60Hz
- Instant On – Including after power interruption
- Solder-LESS LED Board Connections – Vibration Resistant
- LM80-08 Measurement of lumen maintenance for LED light sources
- LM79-08 Certified “Absolute” Photometry, including Chromaticity Color for Solid State Lighting
- L70 Values - Industry Nomenclature for Hours of use to 70% of Initial Lumens (TM-21+ Cal.)
- Compact in size with traditional industrial appearance and suitability. VSL LED housings can be retrofitted to existing V Series splice boxes; upgrade from CFL or incandescent. Energy savings - less than 13W of power. Replaces 75W or higher incandescent.
Specifications
Key Specifications
- Finish
- Powder Epoxy Paint
- Special Features
- Compact in size with traditional industrial appearance and suitability. VSL LED housings can be retrofitted to existing V Series splice boxes; upgrade from CFL or incandescent. Energy savings - less than 13W of power. Replaces 75W or higher incandescent.
- Country of Origin
- United States
- Dimensions
- 8.02 in x 4.38 in x 10.11 in
- Height
- 10.11 in
- Lumens
- 1625
- Voltage Rating
- 120-277 VAC
- Application
- Killark ‘VSL’ Series LED fixtures are designed for installations where moisture, dirt, dust, corrosion and vibration may be present, or NEMA 3 and 4 areas where wind, water, snow or high ambients can be expected. VSL’s are sized to replace “Utility” type fixtures (incandescent or CFL’s) in hallways, closets, elevator pits, docks, stairwells, access tunnels, and mechanical rooms. These fixtures can be used in locations made hazardous by the presence of flammable vapors or gases or combustible dusts as defined by the NEC. Typical applications include manufacturing plants, and certain chemical and petrochemical processing facilities, sewage treatment plants, off-shore and dockside installations, and garage areas
- Frequency Rating
- 50/60 Hz
- Operating Cycles
- 10,000 hrs
- Wattage
- 16 W
- Description - Invoice
- 16W V SERIES LED ASY 120-277VAC 50/60HZ
- Harmonization Code
- 9405429100
- Lead Time
- 25 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D20D202
- Lumen Range
- 0-2,000 lm
- Light Source
- LED
- Series
- VSL Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
MountingLuminaire Only
ARRA CompliantContact Manufacturer
ColorGray
Hazardous Rating(s)Class I, Division 2, Groups A, B, C, D;Class I, Zone 2, Groups IIC,IIB,IIA;Class II, Division 2, Groups F, G;Class III, Divsions 1 & 2
Length8.02 in
Optic TypeLuminaire Only
Width4.38 in
Finish TypePowder Epoxy Paint
Mounting TypeLuminaire Only
TypeAluminum LED Fixture
Class CodeD20
Freight Class Code06316009
Image Actual Or RepresentativeA
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging5
Lumens Per Watt101.6
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936090795
NAICS Code3351222100
Certifications
- EU RoHS Indicator
- Contact Manufacturer
