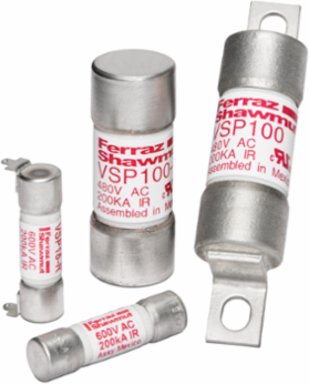

Mersen VSP100-2 VSP MOV Surge Suppression Fuse 480V 100kA I.R. Ferrule Mount 0.82 Inch
- MPN: VSP100-2
- UPC: 782001905354
- PPN: FER-VSP100-2
CAD
$57.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Mersen surge suppression fuses are specially designed to address the protection of SPD systems. Our surge suppression fuses have been specially designed to withstand 8/20 μSec surge pulses without opening, allowing the SPD system to react to the surge. All surge suppression fuses have a 8/20 μSec surge rating, not a continuous current rating. Under AC short circuit conditions these surge suppression fuses are very current limiting.
Specifications
Key Specifications
- Rated voltage AC UL
- 480 V
- ROHS Compliant
- Yes
- Mounting
- Clip
- Design Details
- 100kA
- Connection/Terminal Type
- Ferrule
- Length
- 2.25 in
Frequency (Hz)50/60 Hz
AC or DCAC
AC Max I.R./Breaking Capacity: I1200 kA
Connection/Terminal MaterialTin-Plated Copper
Body/Insulating MaterialGMG
Weight0.11 lb
