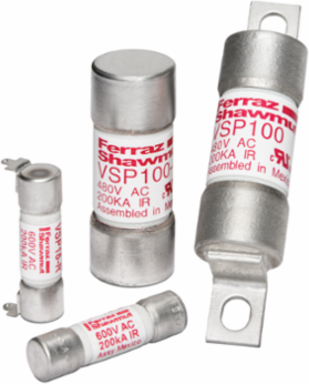

Mersen VSP60-2 VSP MOV Fuse 600V 60kA Surge Ferrule Mount 0.82 Inch Diameter
- MPN: VSP60-2
- UPC: 782001905262
- PPN: FER-VSP60-2
CAD
$53.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mersen surge suppression fuses are specially designed to address the protection of SPD systems. Our surge suppression fuses have been specially designed to withstand 8/20 μSec surge pulses without opening, allowing the SPD system to react to the surge. All surge suppression fuses have a 8/20 μSec surge rating, not a continuous current rating. Under AC short circuit conditions these surge suppression fuses are very current limiting.
Specifications
Key Specifications
| Rated voltage AC UL | 600 V |
|---|---|
| ROHS Compliant | Yes |
| Mounting | Clip |
| Design Details | 60kA |
| Connection/Terminal Type | Ferrule |
| Length | 2.25 in |
| Frequency (Hz) | 50/60 Hz |
|---|---|
| AC or DC | AC |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Body/Insulating Material | GMG |
| Weight | 0.11 lb |
