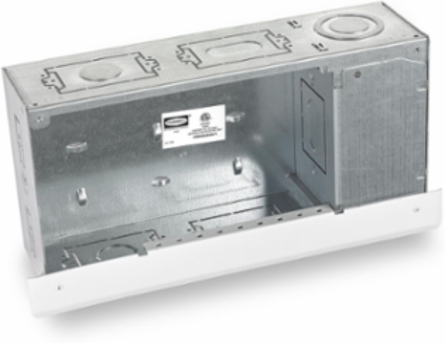

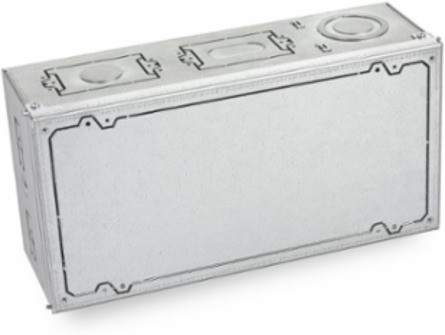

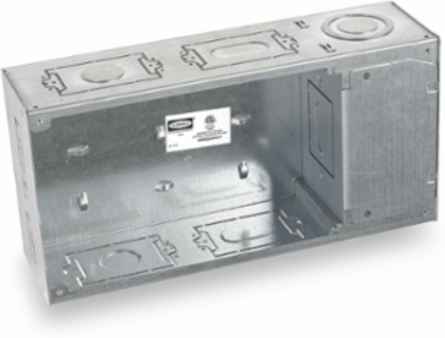

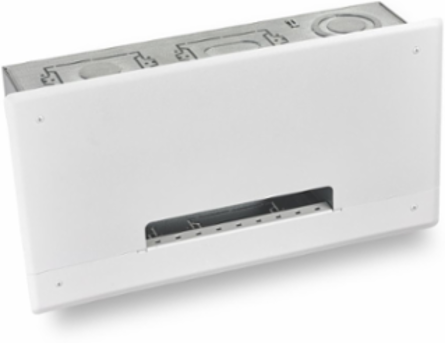

Hubbell Premise Wiring HRWB25WHT Wall Enclosure, 5-Gang, 2" Conduit Feed-Thru, White, cETLus Certified
- MPN: HRWB25WHT
- UPC: 783585695778
- PPN: HBL-HRWB25WHT
- UNSPSC: 39121304
CAD
$826.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Power and AV Access Wall Enclosure, 5-Gang, 2" Feed-Thru, White
Features
- 16 gauge steel back box with white two piece cover
- 2" conduit feed-through with 1" and 1-1/2" concentric knockouts
- Four old work box knockouts for top or bottom feed
- 2" x 4" x 16" on-center flush mounting
- can also be used as in-wall storage box
- 1", 1-1/2" and 2" Conduit Low Voltage Knockouts. 2" Conduit feed-Thru Capacity. Knockouts for up to four Power Outlets. Cable access area incldes (9) wire manage loops. Paintable two piece cover.
Documentation & Downloads
Specifications
Key Specifications
- Width
- 10.250 in
- Size
- 5-Gang
- Color
- White
- Finish
- White painted cover
- Mounting
- Flush
- Shape
- Rectangular
- Standard
- cETLus Certified
- General Literature Asset 1 Display Text
- Power and AV Wall Boxes
- Display Size
- 7.24" (183.8) x 14.25" (362.0) x 4.00" (141.6)
- Mounting Type
- Flush
- Style
- Power/AV
- Material - Mounting Hardware
- Mounting Screws
- Series
- FPTV Wall Boxes
- BOX SIZE
- (in)
- NAICS Code
- 3359326101
Industry Standard(s)cETLus Certified
ApplicationAudio Video and Power
Cover Type2 piece rectangular
Knockouts15
Number of Outlet5
Special Features1", 1-1/2" and 2" Conduit Low Voltage Knockouts. 2" Conduit feed-Thru Capacity. Knockouts for up to four Power Outlets. Cable access area incldes (9) wire manage loops. Paintable two piece cover.
TypeBoxes
Cable EntryKnock Outs
Finish TypeWhite painted cover
Number Of Outlets5
Image Actual Or RepresentativeA
ConstructionFolded
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783585695778
