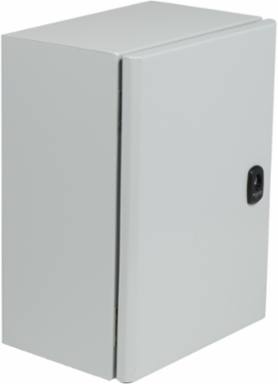

Schneider Electric NSYS3DC12830 Steel Wall-Mounted Enclosure 1200x800x300mm IP66 IK10
- MPN: NSYS3DC12830
- PPN: SCH-NSYS3DC12830
CAD
$855.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Crafted by Schneider Electric, this robust wall-mounted enclosure is engineered to withstand the toughest industrial environments. With an impressive IP66 rating, it ensures superior protection against dust and water, making it ideal for outdoor applications or areas exposed to harsh weather conditions. The enclosure's IK10 impact resistance rating further guarantees durability, safeguarding your electrical components from physical damage. Designed with dimensions of 1200x800x300mm, it provides ample space for equipment while maintaining a compact profile suitable for efficient installation. Whether you’re looking to protect critical electronics or streamline your panel installations, this enclosure stands out as a reliable choice for ensuring longevity and safety in various applications.
Documentation & Downloads
Specifications
Additional
- Material
- Steel
- IK Degree of Protection
- IK10 IEC 62262
- Dimensions
- 1200 x 800 x 300 mm (H x W x D)
- Width
- 800 mm (31.50 in)
- Net Weight
- 44.6 kg (98.33 lb)
- Door Type
- Plain solid
- Door Opening Side
- Reversible 120°
- Mounting Plate
- Without mounting plate
- Installation Accessory Type
- Wall-mounting
- Device Composition
- 1 body, 1 door, 1 lock
- EU RoHS Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- China RoHS Regulation
- Out of China RoHS scope; substance declaration provided
- Standards
- IEC 62208
- Surface Finish
- Epoxy-polyester powder
- Removable Parts
- Door by hinges
- Warranty
- 18 months
- Range
- Spacial
- Environmental Disclosure
- ENVPEP100104EN
- Product Or Component Type
- Compact enclosure
- Country of Origin
- Spain
IP Degree of ProtectionIP66 IEC 60529
NEMA Degree of ProtectionNEMA 4X/13
Height1200 mm (47.24 in)
Depth300 mm (11.81 in)
Enclosure TypeWall-mounted
Number of Doors1 front face
Lock Type3 points lock, screwdriver insert
Gland PlateWithout gland plate
Variant ParticularityGutter-shaped front profile double sheet thickness, single piece body
RoHS Exemption InformationYes
REACH RegulationContains Substances of Very High Concern above threshold
Product CertificationsUL
ColorGray RAL 7035
Accessibility for OperationFront
Mercury FreeYes
Device ApplicationMulti-purpose
Circularity ProfileN/A
Sustainable Offer StatusGreen Premium product
Product NameSpacial S3DC
