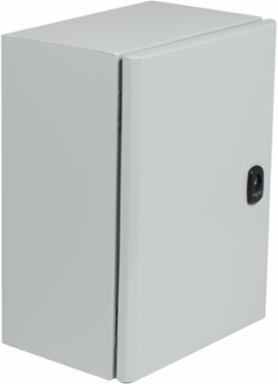

Schneider Electric NSYS3DC8640 Wall mounted steel enclosure, Spacial S3DC, plain door, without plain chasis, 800x600x400 mm, IP66, IK10

Wall mounted steel enclosure, Spacial S3DC, plain door, without plain chasis, 800x600x400 mm, IP66, IK10
  • MPN: NSYS3DC8640
  • PPN: SCH-NSYS3DC8640

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$574.23/ EA

    Description

    Wall mounted steel enclosure, Spacial S3DC, plain door, without plain chasis, 800x600x400 mm, IP66, IK10

    Specifications

    Environment

    Ik Degree Of Protection
    IK10 IEC 62262
    Ip Degree Of Protection
    IP66 IEC 60529
    Nema Degree Of ProtectionNEMA 4X/13

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    China Rohs Regulation
    Product out of China RoHS scope. Substance declaration for your information
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP100104EN
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Circularity ProfileN/A
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    Complementary

    Product Certifications
    UL
    Removable Parts
    door by hinges
    Material
    steel
    Surface Finish
    epoxy-polyester powder
    Lock Type
    3 points lock, screw driver insert
    Door Opening Side
    reversible 120 °)
    Accessibility For Operationfront
    StandardsIEC 62208
    Variant Particularitysingle piece body || gutter-shaped front profile double sheet thickness
    Colourgrey RAL 7035)
    Net Weight28.6 kg
    Number Of Doorsfront face 1

    Specifications

    Type Of Gland Plate
    without gland plate
    Product Or Component Type
    compact enclosure
    Device Composition
    1 body || 1 door || 1 lock
    Door Type
    plain
    Device Application
    multi-purpose
    Mounting Plate Description
    without mounting plate
    Installation Accessory Typewall-mounting
    Product NameSpacial S3DC
    Enclosure Nominal Height800 mm
    Enclosure Nominal Depth400 mm
    Enclosure Nominal Width600 mm
    RangeSpacial
