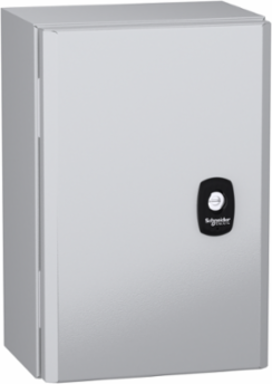

Schneider Electric NSYS3DC3215 Wall Mounted Steel Enclosure, 300x200x150mm, IP66, IK10, Grey RAL 7035
- MPN: NSYS3DC3215
- PPN: SCH-NSYS3DC3215
CAD
$173.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric NSYS3DC3215 Wall Mounted Steel Enclosure is engineered for robust performance and reliability in a variety of settings. With an IP66 rating, it offers superior protection against dust and water ingress, making it suitable for both indoor and outdoor applications. The enclosure's IK10 impact resistance ensures durability in challenging environments, while its grey RAL 7035 finish blends seamlessly into various surroundings. Designed specifically for wall mounting, this enclosure is an ideal solution for housing electrical components safely and securely, ensuring that your installations remain protected and functional.
Documentation & Downloads
Specifications
Additional
- NEMA Degree of Protection
- NEMA 4X/13
- IK Degree of Protection
- IK10 IEC 62262
- Dimensions
- 300x200x150 mm
- Door Type
- Plain solid
- Lock Type
- Screw driver insert lock
- Mounting Plate
- Without mounting plate
- Installation Type
- Wall-mounting
- Surface Finish
- Epoxy-polyester powder
- Standards
- IEC 62208
- Color
- Gray RAL 7035
- Sustainable Offer Status
- Green Premium
IP Degree of ProtectionIP66 IEC 60529
MaterialSteel
Number of Doors1 front face
Door Opening SideReversible 120°
Removable PartsDoor by hinges
Gland Plate TypeWithout gland plate
Body TypeSingle piece body with gutter-shaped double sheet thickness front profile
Product CertificationsUL
Warranty18 months
Country of OriginES
Mercury FreeYes
